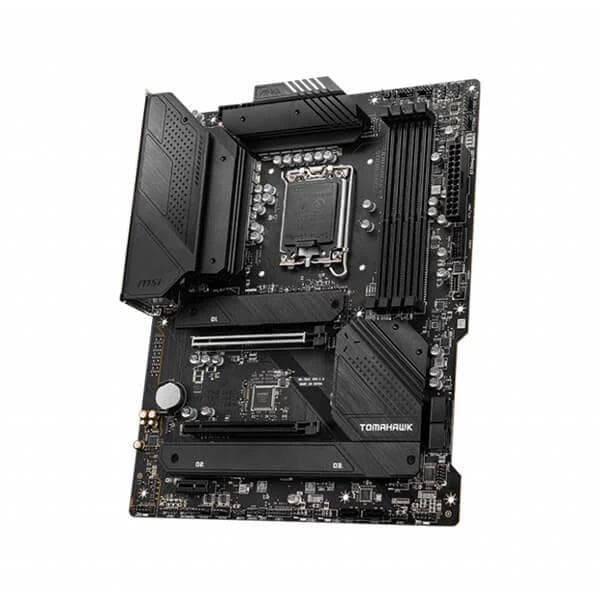

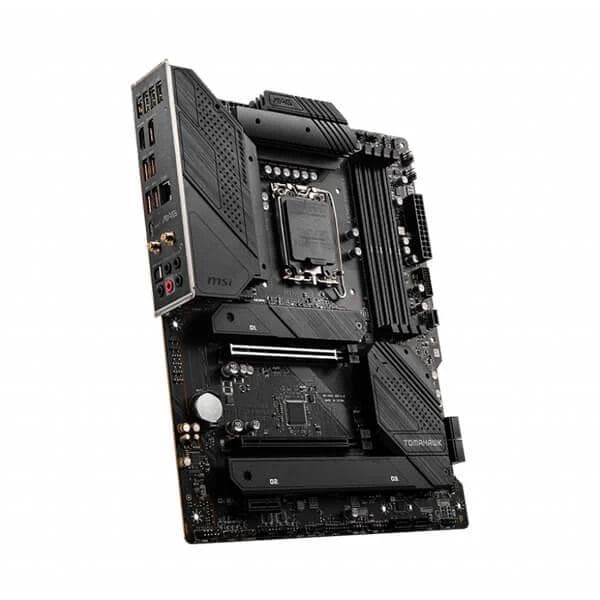

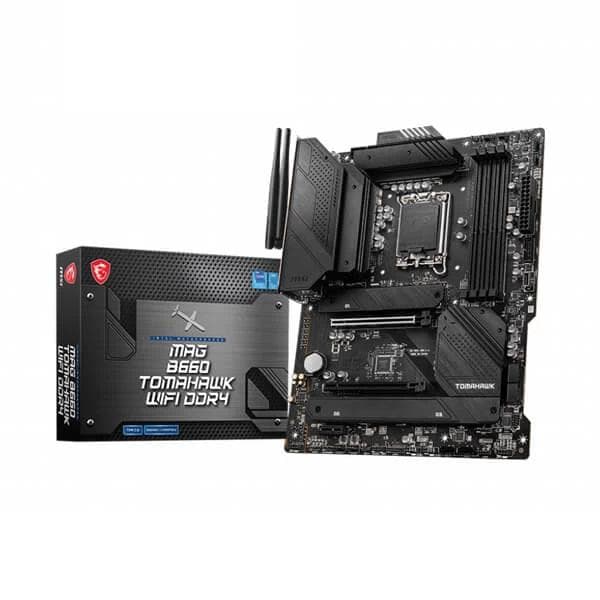

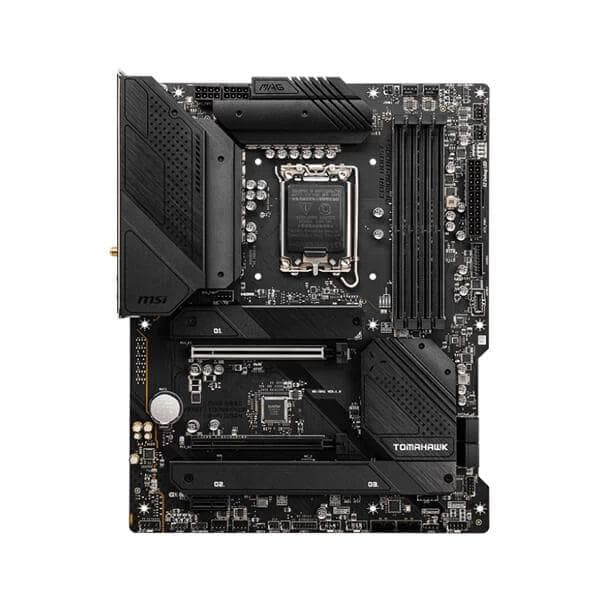

MSI MAG B660 Tomahawk WIFI DDR4 Intel Motherboard

Brands
  • B660 Tomahawk Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • B660 Tomahawk Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

Original price was: ₹29,999.00.Current price is: ₹19,999.00.

Out of stock

Email when stock available

MSI MAG B660 Tomahawk WIFI DDR4 Intel Motherboard

Features:

  • MSI B660 Tomahawk Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
MSI MAG B660 TOMAHAWK WIFI DDR4 BANNER
MSI MAG B660 TOMAHAWK WIFI DDR4 main image

MSI Gaming Logo

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MAG B660 TOMAHAWK WIFI DDR4

Conquer the Battlefield

The MAG B660 TOMAHAWK WIFI DDR4 is a gaming oriented ATX motherboard constructed around the latest Intel B660 chipset that balances value with premium hardware.

  • Supports Intel Core 12th Gen Processors (LGA 1700)
  • 12 Duet Rail Power System (60A/DrMOS)
  • 4 x DDR4 DIMMs, Memory Boost (4800MHz+ OC)
  • 3 x Gen4 M.2 Slots with Shield Frozr
  • 1 x PCI-e 4.0 x16 (Steel Armor), 1 x PCI-e 3.0 x16 Graphic Card Slots (AMD CrossFire Supported)
  • 7.1 HD Audio with Audio Boost
  • 2.5G LAN, Intel Wi-Fi 6 & Bluetooth 5.2

B660 Chipset, 12 Duet Rail Power System, Smart Cooling, DDR4 Memory Boost

12th gen intel core support

DUET RAIL POWER SYSTEM

COOLING FEATURES

DDR4 DUAL CHANNEL

Supports Intel Core 12th Gen Processors

The MAG B660 TOMAHAWK WIFI DDR4 motherboard supports 12th Gen Intel Core processors.

  • Form Factor: ATX
  • Socket Type: LGA 1700
  • Chipset: Intel B660



Intel B660 chipset motherboards support memory overclocking but not CPU overclocking.

12+1+1 Duet Rail Power System

With its dual 8 pin power connectors and exclusive Core Boost Technology (60A, DrMOS), the MAG B660 TOMAHAWK WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings:

1. Digital PWM IC

2. 1-Phase AUX Power

3. 1-Phase GT Power

4. 12 Duet Rail CPU Power System

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

4 x DDR4 Dual Channel (4800+ MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

*1DPC 1R Max. overclocking frequency 4800+ MHz.

PCI-e 4.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6 Connectivity

FORTIFIED PCI

GEN4 M.2 CONNECTORS

M.2 SHIELD FROZR

WIFI 6 & BLUETOOTH 5.2

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:

  • 1 x PCI-e 4.0 x16 slot (with Steel Armor)



1 x PCI-e 3.0 x16 slot (CrossFire supported)

Gen4 M.2 Connectors

The MAG B660 TOMAHAWK WIFI DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):

  • 2 x Gen4 x4 64Gb/s slots
  • 1 x Gen4 x2 32Gb/s slot



*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6 & Bluetooth 5.2

2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

Wi-Fi 6: Features an Intel Wi-Fi 6 module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

Processor Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700
Chipset Intel® B660 Chipset
Memory 4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 2x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support up to PCIe 4.0
  • PCI_E2 (From B660 chipset)
  • Support up to PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (From B660 chipset)
Multi-GPU Supports AMD® CrossFire™ Technology
Onboard Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage 6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 SATAA & SATAB do not support RAID function.
USB Intel® B660 Chipset
  • 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
  • 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Audio Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN 1x Realtek® RTL8125B-CG 2.5Gbps LAN controller
Wireless LAN & Bluetooth® Intel® Wi-Fi 6
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 5x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector
LED Feature
  • 1x EZ LED Control switch
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Back panel ports
  • USB 2.0 Port
  • DisplayPort 1.4
  • 2.5G LAN Por
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • HDMI 2.1 Port
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2x2 20Gbps Type-C
  • Optical S/PDIF OUT
Dimensions ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
