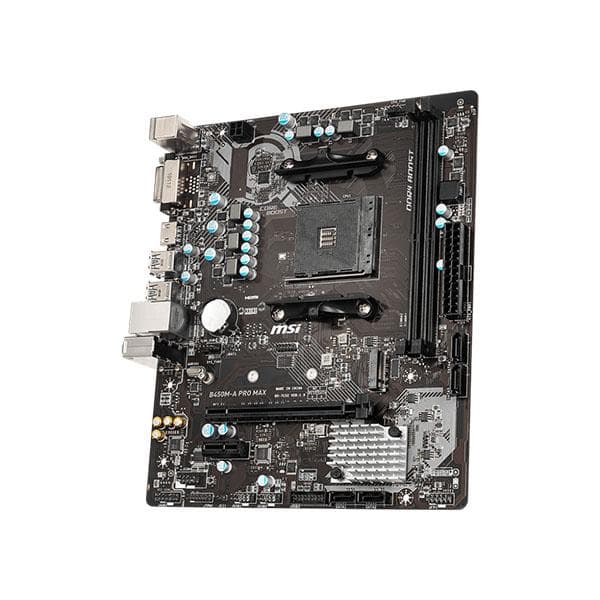

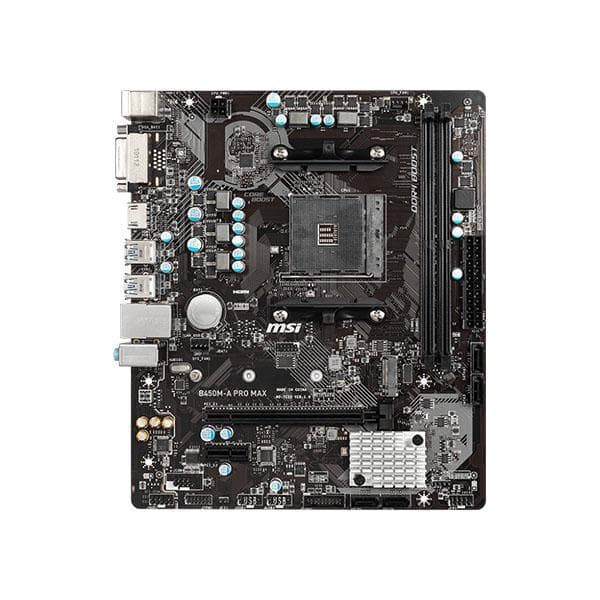

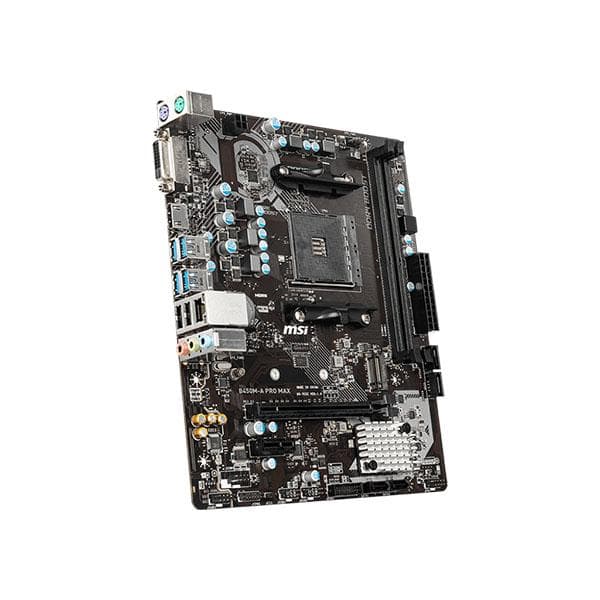

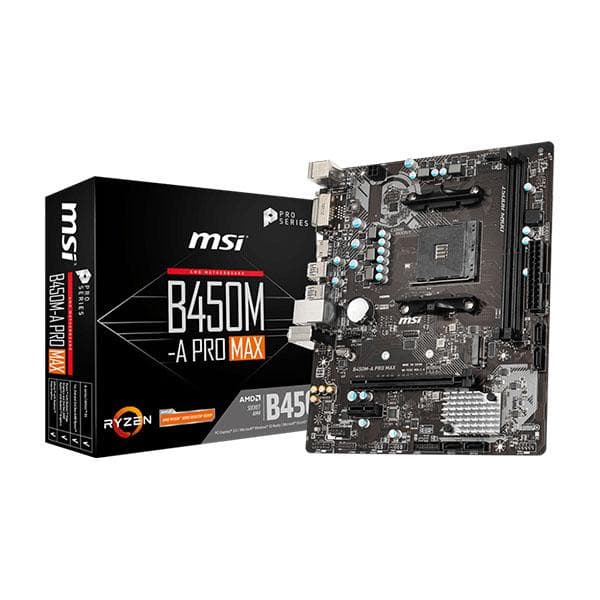

MSI B450M-A Pro Max AMD AM4 DDR4 Motherboard

Brands
13 sold in last 5 hours
Hurry! Over 4 people have this in their carts
  • Chipset – AMD B450
  • Memory Max. – 128GB
  • Memory Slot – 4
  • Supported CPU – AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics
  • Sockets Supported – AM4
  •  Delivery & Return

    đźšš Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  Estimated Delivery: Jun 25 – Jun 29
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

4,899.00

+

MSI B450M-A PRO MAX Pro Series Motherboard (mATX, 2ND and 3rd Gen, AM4, M.2, USB 3, DDR4, DVI HDMI, Crossfire)







  • Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133 (OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

STAY COOL AND SUSTAIN PERFORMANCE

Cooling is essential for a high performance PC to sustain intense workloads. B450M-A PRO features a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

IN-STUDIO ADVANTAGE MSI

This motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

MAXIMUM COMPATIBILITY

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want..

TROUBLESHOOTING FRIENDLY DESIGN

MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.

LOYAL COMRADE

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

MAKE YOUR PC MORE THAN YOU THINK

PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

SOUND THAT PULLS YOU INTO THE GAME

Reward your ears with studio grade sound quality.

Specifications
Model B450M-A-PRO-MAX
Processor Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory
  • 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
  • Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
    • For AMD Other CPU
      • 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
Slots
  • 1 x PCIe 3.0 x16 slot
    • Supports x16 speed
      • 1st, 2nd and 3rd Gen AMD Ryzen™
    • Supports x8 speed
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
      • A-series
      • Athlon™ X4
    • Supports x4 speed
      • AMD® Athlon™ with Radeon™ Vega Graphics
  • PCIe 2.0 x1 slot
Onboard Graphics
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2
  1. Only support when using the processor with Graphicss
  2. Maximum shared memory of 2048 MB
Storage AMD® B450 Chipset
  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 and SATA 6Gb/s
      • 1st, 2nd and 3rd Gen AMD Ryzen™
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
    • Supports PCIe 3.0 x2 and SATA 6Gb/s
      • AMD® Athlon™ with Radeon™ Vega Graphics
      • A-series
      • Athlon™ X4
    • Supports 2242/2280/22110 storage devices
USB AMD® B450 Chipset
  • 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio
Realtek® ALC892 Codec
  • 7.1-Channel High Definition Audio
LAN
  • 1 x Realtek® 8111H Gigabit LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper

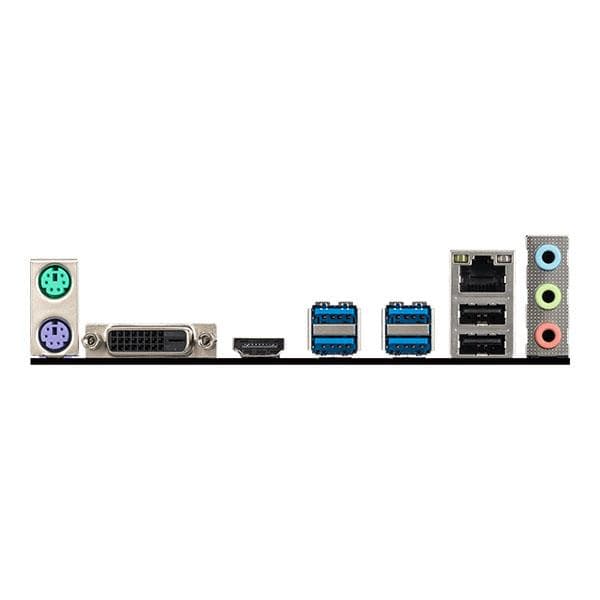

Back Panel Ports
  1. Mouse
  2. DVI-D Port
  3. USB 3.2 Gen1
  4. LAN Port
  5. Keyboard
  6. HDMI Port
  7. USB 2.0 Ports
  8. HD Audio Connectors
Dimensions
  • 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
  • m-ATX Form Factor
Mounting 6 mounting holes
Operating System Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
