MSI B450 Gaming Plus Max Motherboard

1 review|1 answered question
Brands
11 sold in last 5 hours
Hurry! Over 8 people have this in their carts
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  •  Delivery & Return

    ? Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  Estimated Delivery: Tue, Feb 18 – Sat, Feb 22
  71 people are viewing this right now

  Share
Guaranteed Safe Checkout

Original price was: ₹14,400.00.Current price is: ₹8,795.00.

snap_green_label_new
₹795/month 3/6/9 EMI available
at 0% EMI on

MSI B450 Gaming Plus Max Motherboard

Features

Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector

  • MSI B450 Gaming Plus Max Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • B450 Gaming Plus Max Supports DDR4 Memory, up to 4133(OC) MHz
  • Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
PROCESSOR Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
CHIPSET AMD® B450 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
    • For AMD Other CPU
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
SLOTS
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
    • Athlon™ with Radeon™ Vega Graphics support x4 mode
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
  • 4 x PCIe 2.0 x1 slots
  1. PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
ONBOARD GRAPHICS
  • 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
  2. Maximum shared memory of 2048 MB
MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
STORAGE

AMD® CPU

  • 2 x SATA 6Gb/s ports
  • 1 x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
  1. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
RAID

AMD® B450 Chipset

  • Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
USB

AMD® B450 Chipset

  • 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN 1 x Realtek® 8111H Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 2 x 5050 RGB LED strip 12V connectors

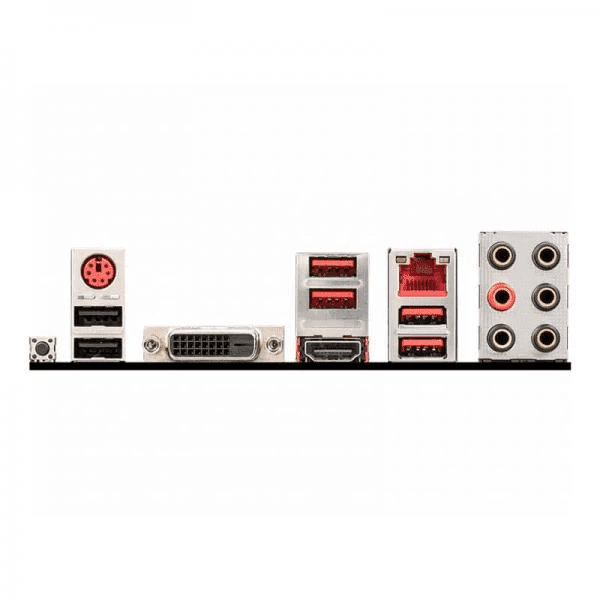

BACK PANEL PORTS
  1. PS/2 Combo Port
  2. USB 3.2 Gen1
  3. LAN Port
  4. HD Audio Connectors
  5. Flash BIOS Button
  6. USB 2.0 Ports
  7. DVI-D Port
  8. HDMI Port
  9. USB 3.2 Gen2
DIMENSIONS
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
Dimensions 31 × 3 × 24 cm
Brands

Chipset

Motherboard Size

Socket

Platform

Motherboard Series

EAN / UPC Code

RAM Type

Warranty
