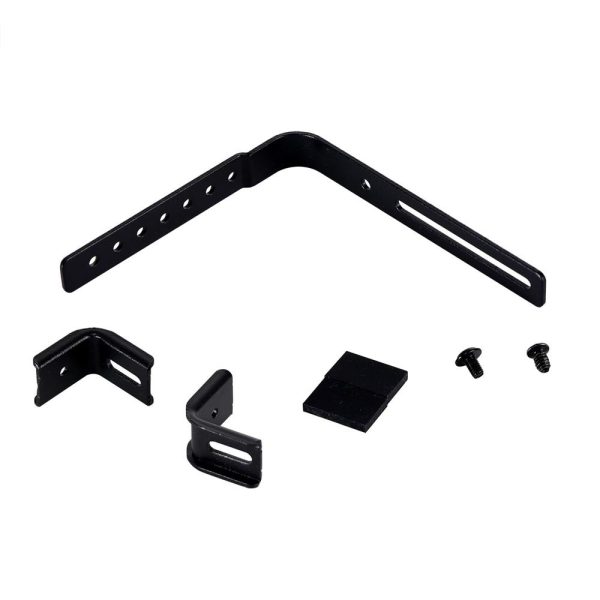

LIAN LI O11DE-2X Upright GPU Bracket Kit for O11 Dynamic Evo Cabinet Black
- Model : O11DE-2X I Colour : Black
- Material : 1mm Steel I Dimension : Mounting frame- 71.8 X 128 X 67.58mm, Support Frame : 70 X 81 X 10mm
- PCIE RISER CABLE : Gen 4.0 I ExpANSION SLOT : 3
- CABLE INTERFACE : PCI-E X 16 I CABLE LENGTH : 380mm
- 1 Year Manufacturer Warranty
Original price was: ₹22,599.00.₹6,799.00Current price is: ₹6,799.00.
LIAN LI O11DE-2X Upright GPU Bracket Kit for O11 Dynamic Evo Cabinet Black
O11D EVO Upright GPU kit
Show off your graphics card in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.
Available in 2 colours
Optimised for direct cooling
Supreme water-cooling configuration
Normal mode
Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.
Ultimate air-cooling configuration
Normal mode
Paired with the right GPU kit, the front mesh kit (sold separately) provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.
Support wide variety sized GPUs
While the breacket supports up to 3 slots thick GPUs, thin GPUs can be mounted at the second slow. In addition, the L-type support bracket can be adjusted according to the GPUs width and thickness.
Note: 1. Must switch the side fan bracket to the drive tray.
2. Plug the display cable to the graphics card before installing the upright GPU on the chassis.
Gen 4.0 PCIe riser cable
The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed ,offering great performances.
Note: Make sure the GPU PCIe connector is fully inserted into the PCIe riser cable socket and motherboard PCIe slot when powered off. Circuit short may occur and cause the hardware damages if not installed properly.
Fan and radiator compatibility
When installing a three-slot thick GPU in the upright position, the radiator width clearance beside the bracket is limited to 130mm, and 120mm fans.
| Product Name | Upright GPU Kit for O11D EVO |
| Model | O11DE-2X |
| Colour | Black |
| Bracket Dimension (L x D x H) | Mounting Frame: 71.8 x 128 x 67.58 mm Support Frame: 70 x 81 x 10 mm |
| Material | 1mm Steel/1.2mm Steel |
| Cable Length | 380mm |
| Cable Interface | PCIe x16 |
| Expansion Slot | 3 Slots |
| Warranty | 1 Year |
| Product Type | |
|---|---|
| Brands | |
| Warranty | |
| EAN / UPC Code |
