Unleash Untapped Performance
Don’t let legacy technology hold you back. With a next generation PCIe® 4.0 interface, the KIOXIA EXCERIA with Heatsink Series gets you in the game faster. Load levels quicker with up to 6,200 MB/s sequential read performance and download new titles faster with up to 4,900 MB/s of sequential write performance.

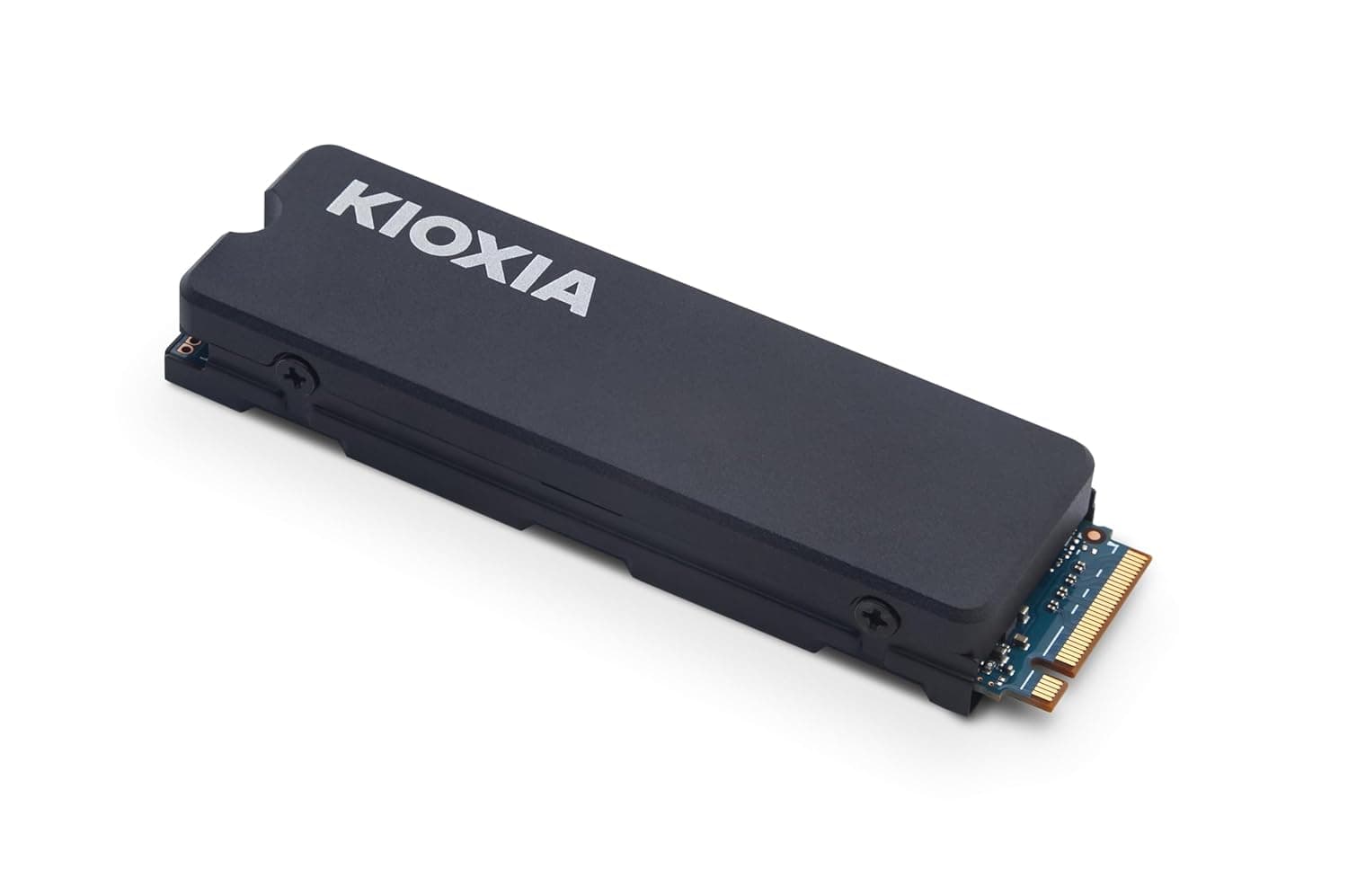

A Power-harnessing Heatsink
Stay “cool” under pressure whether using a desktop or PlayStation 5*6. With advanced heat dissipation capabilities, the KIOXIA EXCERIA with Heatsink Series is an excellent choice for gaming systems that need extra cooling during intense gaming sessions.
More Space, More Games.
Your next upgrade is here. With up to 4,096 GB of flash memory capacity, you can store more games. The KIOXIA EXCERIA with Heatsink SSDs offer abundant storage for even the tightest spaces in your go-to PlayStation 5*6 and desktop PC. Please make sure to check out the following website on how to install an SSD into the PlayStation 5*6.
| Category | Specification | Details |
|---|---|---|
| Capacity | Capacity | 1,024GB, 2,048GB, 4,096GB |
| Form Factor | Form Factor | M.2 Type 2280 (Key M) with Heatsink |
| Interface | Interface | PCI Express® 4.0 (PCIe® Gen4 x4) |
| Flash Memory | Flash Memory Type | BiCS FLASH™ TLC |
| Interface Speed | Interface Maximum Speed | 64 GT/s (PCIe® Gen4 x4) |
| Dimensions | Dimension (LxWxH) | 80.65 × 24.70 × 11.20 mm |
| Protocol | Interface Protocol | NVM Express™ 1.4 |
| Weight | Weight | 1,024GB & 2,048GB: 45 g (typ.) 4,096GB: 46 g (typ.) |
| Performance | Max Sequential Read Speed | 6,200 MB/s |
| Performance | Max Sequential Write Speed | 1,024GB & 2,048GB: 4,900 MB/s 4,096GB: 4,800 MB/s |
| Performance | Max Random Read Speed | 1,024GB: 850,000 IOPS 2,048GB: 830,000 IOPS 4,096GB: 810,000 IOPS |
| Performance | Max Random Write Speed | 1,024GB: 440,000 IOPS 2,048GB & 4,096GB: 450,000 IOPS |
| Endurance | TBW (Total Bytes Written) | 1,024GB: 600 TB 2,048GB: 1,200 TB 4,096GB: 2,400 TB |
| Reliability | MTTF | 1.5 million hours |
| Operating Environment | Operating Temperature | 0°C to 85°C |
| Operating Environment | Storage Temperature | -40°C to 85°C |
| Power | Supply Voltage | 3.3 V ±5% |
| Power | Power Consumption (Active) | 1,024GB: 7.7 W (typ.) 2,048GB & 4,096GB: 7.8 W (typ.) |
| Power | Power Consumption (PS3) | 1,024GB: 60 mW (typ.) 2,048GB & 4,096GB: 100 mW (typ.) |
| Power | Power Consumption (PS4) | 1,024GB: 5 mW (typ.) 2,048GB & 4,096GB: 10 mW (typ.) |
