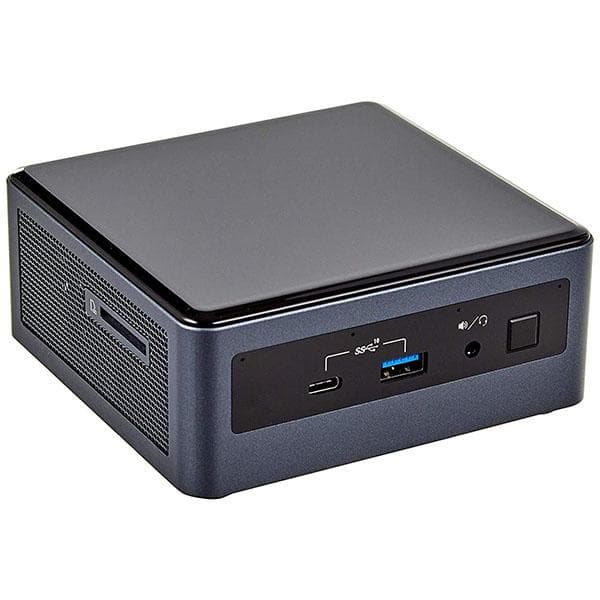

Intel NUC10i3FNH Mini Desktop PC Black
- Intel Core i3-10110U 2.1 – 4.1GHz Dual-core Processor
- 8GB RAM (Memory) | 256GB 2.5 Inch SSD
- Card Reader, Gigabit LAN (Ethernet), WiFi, Bluetooth, Security Slot | 1x HDMI, 1x Thunderbolt 3, 1x USB 3.1 Gen 2, 1x USB-C 3.1 Gen 2 (Front). 2x USB 3.1 Gen 2, 1x USB-C via Thunderbolt 3 (Rear)
- Windows 10 Professional included
- Intel India 3 Year Warranty
... people are viewing this right now
₹24,599.00
Out of stock
Email when stock available
Essentials
- Product CollectionIntel® NUC Kit with 10th Generation Intel® Core™ Processors
- Code Name Products formerly Frost Canyon
- Launch Date Q4’19
- Supported Operating Systems Windows 11, 64-bit*, Windows 10, 64-bit*
- Board Number NUC10i3FNH
- Board Form Factor UCFF (4″ x 4″)
- Socket Soldered-down BGA
- Internal Drive Form Factor M.2 and 2.5″ Drive
- # of Internal Drives Supported 2
- TDP25 W
- DC Input Voltage Supported 19 VDC
- Processor Included Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz)
- Total Cores 2
- Total Threads 4
- Processor Base Frequency 2.10 GHz
- Lithography 14 nm
- Max Turbo Frequency 4.10 GHz
- Warranty Period 3 yrs
Supplemental Information
- Embedded Options AvailableNo
- Description Other features: Includes far-field quad array microphones
Memory & Storage
- Max Memory Size (dependent on memory type)64 GB
- Memory TypesDDR4-2666 1.2V SO-DIMM
- Max # of Memory Channels2
- Max Memory Bandwidth42.6 GB/s
- Max # of DIMMs2
- ECC Memory Supported ‡No
Processor Graphics
- Integrated Graphics ‡Yes
- Graphics OutputHDMI 2.0b; USB-C (DP1.2)
- # of Displays Supported ‡3
Expansion Options
- PCI Express RevisionGen3
- PCI Express Configurations ‡M.2 slot with PCIe X4 lanes
- Removable Memory Card SlotSDXC with UHS-II support
- M.2 Card Slot (storage)22×42/80
I/O Specifications
- # of USB Ports7
- USB Configuration2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers
- USB Revision2.0, 3.1 Gen2
- USB 2.0 Configuration (External + Internal)0 + 2
- USB 3.0 Configuration (External + Internal)2B 2F + 0
- Total # of SATA Ports2
- Max # of SATA 6.0 Gb/s Ports2
- RAID Configuration2.5″ HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
- Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R mic (F)
- Integrated LANIntel® Ethernet Connection I219-V
- Integrated Wireless‡Intel® Wi-Fi 6 AX201
- Integrated BluetoothYes
- Consumer Infrared Rx SensorYes
- Additional HeadersCEC, 2x USB2.0, FRONT_PANEL, RGB
- # of Thunderbolt™ Ports1x Thunderbolt™ 3
Package Specifications
- Chassis Dimensions117 x 112 x 51mm
Security & Reliability
| Specification | Details |
|---|---|
| Product Collection | Intel® NUC Kit with 10th Generation Intel® Core™ Processors |
| Processor Included | Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz) |
| Board Number | NUC10i3FNB |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit* |
| Recommended Customer Price | $322.66-$325.12 |
| Total Cores | 2 |
| Total Threads | 4 |
| Max Turbo Frequency | 4.10 GHz |
| Processor Base Frequency | 2.10 GHz |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of Memory Slots | 2 |
| Memory Types | DDR4-2666 1.2V SO-DIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 42.6 GB/s |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| # of Internal Drives Supported | 2 |
| Graphics Output | HDMI 2.0b; USB-C (DP1.2) |
| # of Displays Supported | 3 |
| # of Thunderbolt™ Ports | 1x Thunderbolt™ 3 |
| # of USB Ports | 7 |
| USB Configuration | 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| RAID Configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Integrated LAN | Intel® Ethernet Connection I219-V |
| Wireless Included | Intel® Wi-Fi 6 AX201 (Gig+) |
| Bluetooth Version | 5.2 |
| TDP | 25 W |
| DC Input Voltage Supported | 19 VDC |
| Chassis Dimensions | 117 x 112 x 51mm |
| Board Form Factor | UCFF (4" x 4") |
| Intel® HD Audio Technology | Yes |
| Intel® Rapid Storage Technology | Yes |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| TPM | No |
| Intel® AES New Instructions | Yes |
| EAN / UPC Code | |
|---|---|
| Prebuilt type |
