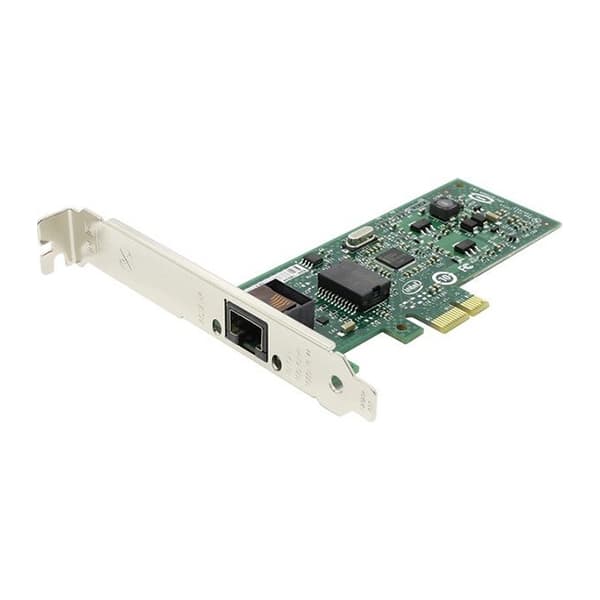

INTEL 9301CT Gigabit CT Desktop Adapter
8 sold in last 15 hours
Hurry! Over 3 people have this in their carts
Brand: Intel
Estimated Delivery: Wed, Jan 21 – Sun, Jan 25
... people are viewing this right now
Original price was: ₹5,500.00.₹2,499.00Current price is: ₹2,499.00.
INTEL 9301CT Gigabit CT Desktop Adapter
For PCs with PCI Express (PCIe*) slots, the Intel® Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on.
INTEL 9301CT Based on the low-power Intel® 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
| Compatible operating systems | Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Host interface | PCI Express |
| PCI version | 1.1 |
| Weight & dimensions | |
| Height | 120 mm |
| Width | 55.3 mm |
| Depth | 119.2 mm |
| Energy management | |
| Power consumption (typical) | 1.9 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Networking | |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum operating distance | 100 m |
| LAN controller | Intel® 82574L |
| Other features | |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Compliance industry standards | 802.3z |
| Interface type | PCIe v1.1 (2.5 GT/s) |
| Cable type | Category-5 up to 100m |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Controller type | Intel 82574L |
| Cabling type | Category-5 up to 100m |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| Low halogen options available |  |
| Thermal Design Power (TDP) | 1.9 W |
| Product type | Network Interface Card |
| Status | Launched |
| Launch date | Q3'08 |
| Product brief URL | http://www.intel.com/Assets/PDF/prodbrief/319831.pdf |
| Network interface card type | Desktop |
| Network interface card cable medium | Copper |
| Market segment | Desktop |
| Last change | 63903513 |
| Product family | Intel Gigabit desktop adapter |
| Product series | Intel Gigabit CT |
| Product codename | Shelter Island |
| Ethernet adapter ARK ID | 50395 |
| Design | |
| Internal |  |
| Certification | FCC B, UL, CE |
| Weight | 1 kg |
|---|---|
| EAN / UPC Code |
