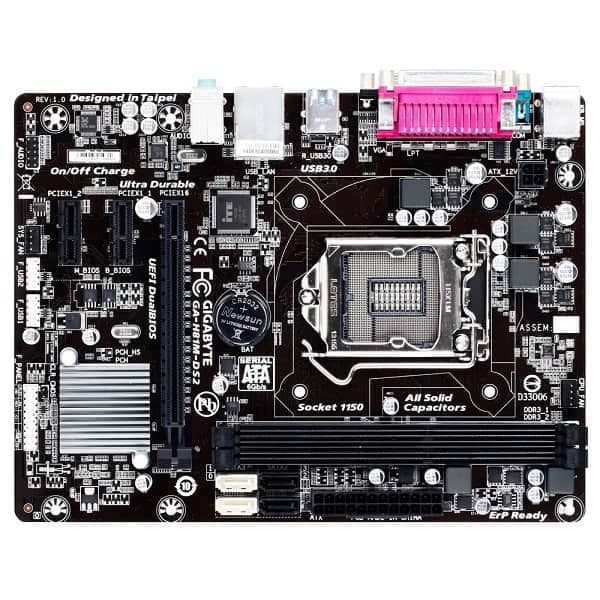

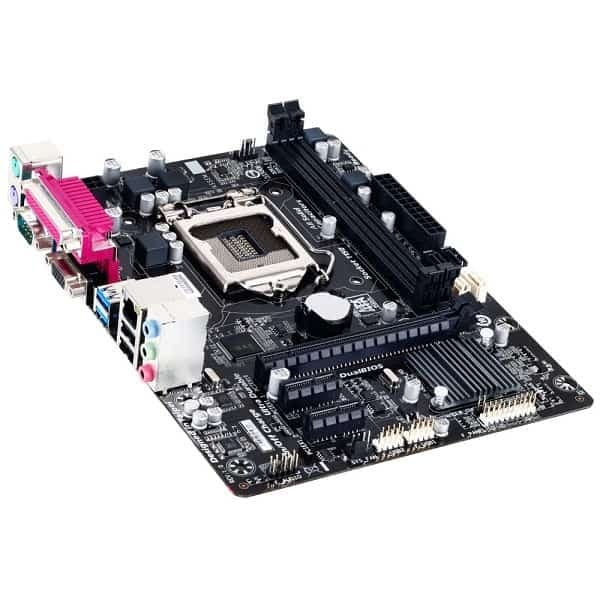

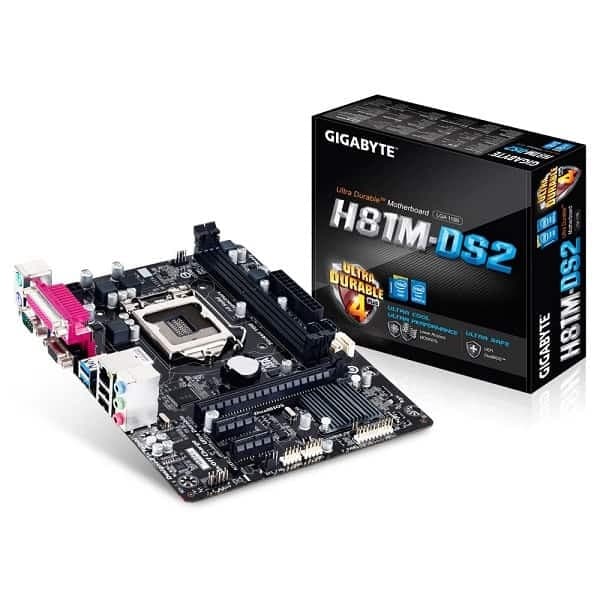

GIGABYTE H81M DS2 Ultra Durable Intel Motherboard
- Supports 4th Generation Intel® Core™ processors
- GIGABYTE Ultra Durable™ 4 Plus Technology
- GIGABYTE UEFI DualBIOS™
- USB 3.0 ports with GIGABYTE 3x USB power
Original price was: ₹7,100.00.₹6,599.00Current price is: ₹6,599.00.
GIGABYTE H81M DS2 Ultra Durable Motherboard
Feature
GIGABYTE H81M DS2 Series Motherboards
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.
Next Gen Intel® H81 Series Platform
The latest Intel H81 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.
GIGABYTE Ultra Durable™ 4 Plus
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
Ultra Safe
GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
Humidity Protection
Humidity can play havoc on a motherboard’s circuitry.GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Power Failure Protection
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
Electrostatic Protection
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
High ESD Protection for USB and LAN (USB 3.0 only)
GIGABYTE H81M DS2 motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
One Fuse per USB Port (USB 3.0 only)
On GIGABYTE H81M DS2 motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer
| Weight | 1 kg |
|---|---|
| BRANDS | GIGABYTE |
| CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU (Please refer “CPU Support List” for more information.) |
|---|---|
| Chipset | Intel® H81 Express Chipset |
| Memory | 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor – Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200 Maximum shared memory of 1 GB |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) |
| Storage Interface | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices |
| USB | Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |

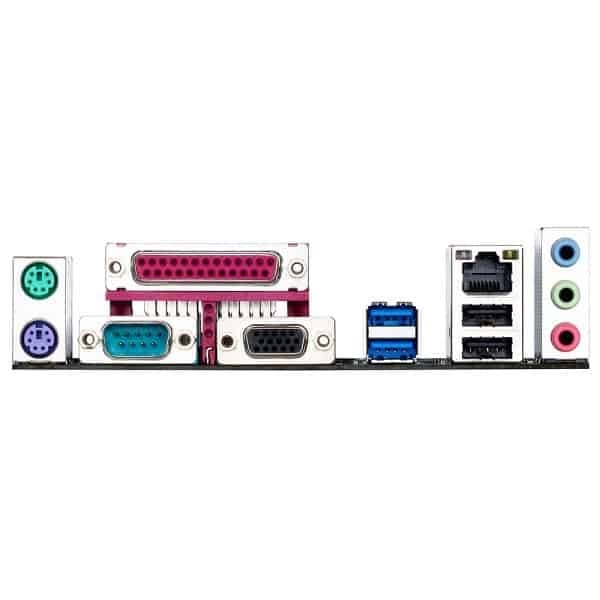

| Back Panel Connectors | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 10/8.1/8/7 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| Product Type | |
|---|---|
| color | |
| Brands | |
| Memory Series | |
| Motherboard Series | |
| Platform | |
| Socket | |
| Chipset | |
| Warranty | |
| EAN / UPC Code |
