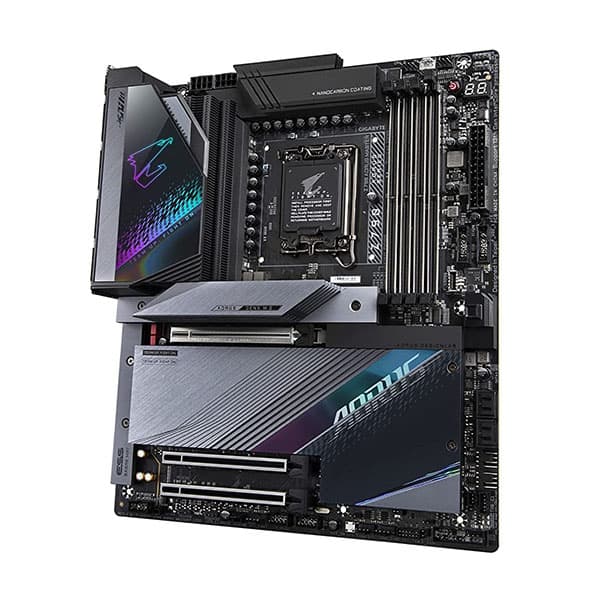

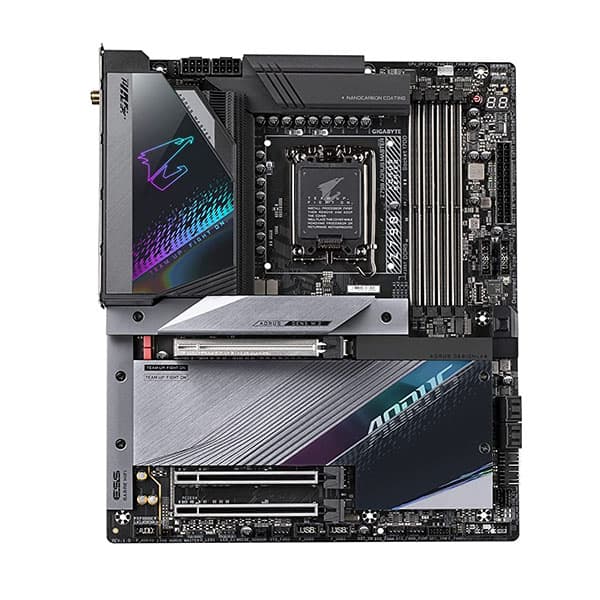

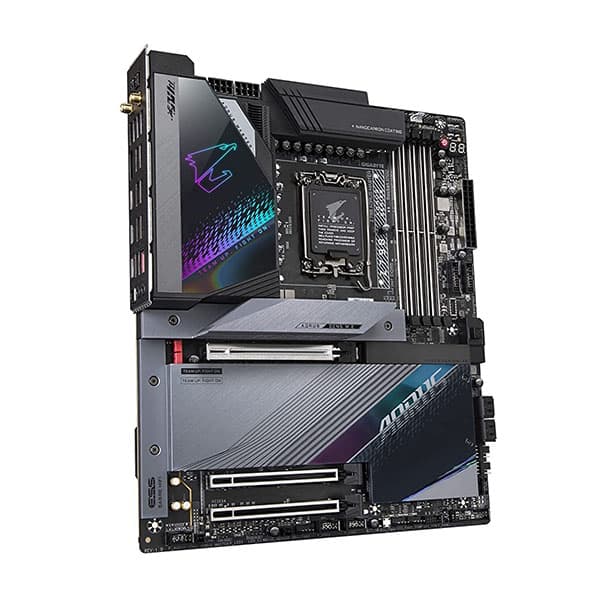

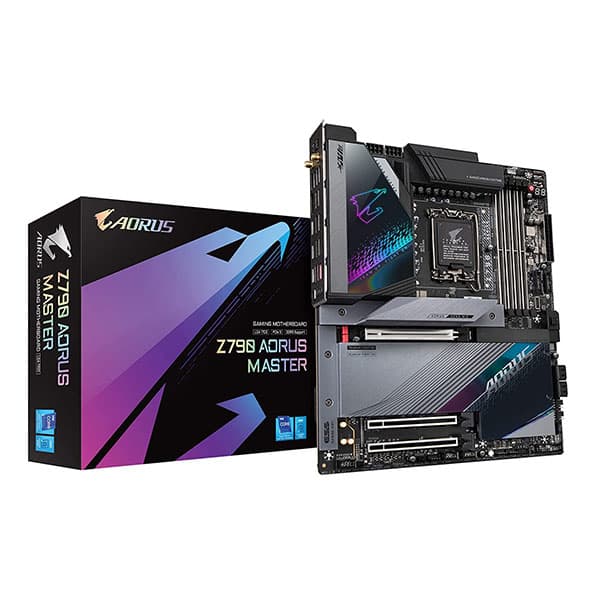

GIGABYTE Z790 Aorus Master Intel Gaming E-ATX Motherboard
- Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
- DDR5 Compatible: 4*SMD DIMMs with XMP 3.0 Memory Module Support
- Commanding Power Design: Direct 20+1+2 Phases Digital VRM Solution with 105A Power Stage
- Cutting-Edge Thermal Design: M.2 Thermal Guard III, Fins-Array III with NanoCarbon Coating, 8mm Mega-Heatpipe, PCIe Ultra Durable Armor, 8-Layer PCB
- Next Gen Connectivity: SMD PCIe 5.0, 1* PCIe 5.0 x4, 4* PCIe 4.0 x4 M.2, 2* USB 3.2 Gen 2×2 Type-C
- EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design
- Fast Networking: Marvell AQtion 10GbE LAN, Intel WiFi 6E 802.11ax, 2T2R & BT5
- Dynamic Audio: ESS SABRE Hi-Fi 9118 DAC, ALC 1220-VB Audio, Audiophile WIMA Capacitors
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
... people are viewing this right now
Original price was: ₹90,000.00.₹54,249.00Current price is: ₹54,249.00.
Out of stock
Email when stock available
GIGABYTE Z790 AORUS Master (LGA 1700/ Intel Z790/ EATX/ DDR5/ 5* M.2/ PCIe 5.0/ USB 3.2 Gen2X2 Type-C/Intel WiFi 6E/ Marvell AQtion 10GbE LAN/Q-Flash Plus/EZ-Latch Plus/Gaming Motherboard)
Gigabyte Z790 Aorus Master lga1700 E-Atx Motherboard (Z790-AORUS-MASTER)
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Direct 20+1+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
- Fins-Array III & M.2 Thermal Guard III：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch Plus：SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Hi-Fi Audio with DTS:X® Ultra：ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC
- Fast Networks：Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax with DCT
- Extended Connectivity：DP, USB-C® 10Gb/s, Front and Dual Rear USB-C® 20Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Equipped with Intel’s LGA 1700 socket and Z790 chipset, you can leverage a wide range of Core, Celeron, and Pentium processors, enhancing performance and responsiveness. Four dual-channel DDR5 RAM slots enable you to install up to 128GB of memory to enhance multitasking and rendering speeds. Install an array of storage drives for your media assets and games with four SATA III and five M.2 PCIe interfaces. The AORUS MASTER also has one PCIe 5.0 x16, one PCIe 3.0 x16 (in x4 mode), and one PCIe 3.0 x16 (in x1 mode) expansion slot so you can equip your system with various graphics and utility cards. Connect your low-powered peripherals such as mice, keyboards, and controllers to the AORUS MASTER with a series of USB 3.2 Gen 1 and Gen 2 ports which can also handle resource-demanding devices such as external drives, A/V interfaces, and more. You can also use Bluetooth 5.3 technology to support wireless devices for a true cable-free experience. Quickly access online assets with Wi-Fi 6E (802.11ax) technology for wireless connectivity or use the wired 10 Gigabit Ethernet port for a strong and reliable connection.
Performance
Twin Digital VRM design leverages 20 VCORE phases and 105A Power Stage to ensure electrical throughput that can handle Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 8000 MHz for enhanced multitasking and rendering performance.
Enhanced Thermal Design
Designed to maintain thermal performance and prevent system throttling and utilizing GIGABYTE’S Fins-Array III technology, the AORUS MASTER’s fully covered MOSFET heat sink, M.2 Thermal Guard, 8mm heatpipe, 7.5 W/mK Thermal Pad, 6-layer 2x copper PCB, and NanoCarbon Baseplate work together to ensure that onboard components are safe under heavy loads. Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.
Front Panel USB-C Connector
The front and back USB-C 3.2 Gen 2×2 ports provide up to 20 Gb/s throughput while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.
Personalization & Customization
With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.
Ultra Durable
Sporting an easy DIY design, the AORUS MASTER provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch Plus provides quick removal for your graphics card and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor.
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
| Chipset | Intel® Z790 Express Chipset |
| Memory | Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® ALC1220-VB CODEC * The front panel line out jack supports DSD audio.ESS ES9118 DAC chipSupport for DTS:X® UltraHigh Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Killer™ Wi-Fi 6E AX1690 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header) Chipset+2 USB 3.2 Gen 2 Hubs: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |

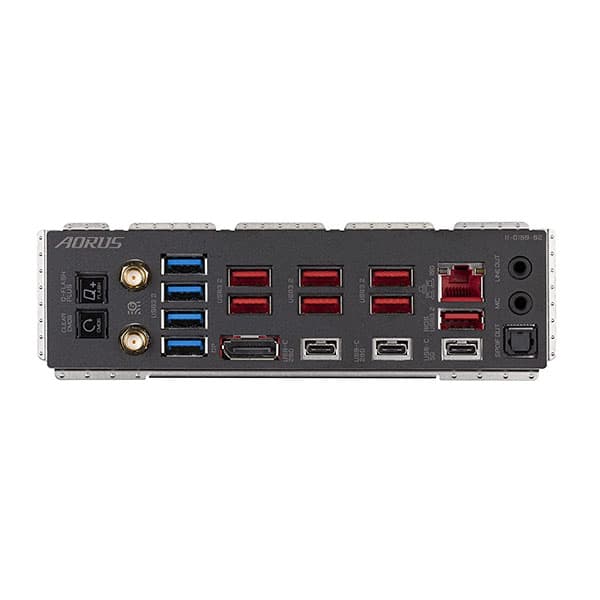

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.0cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice |
