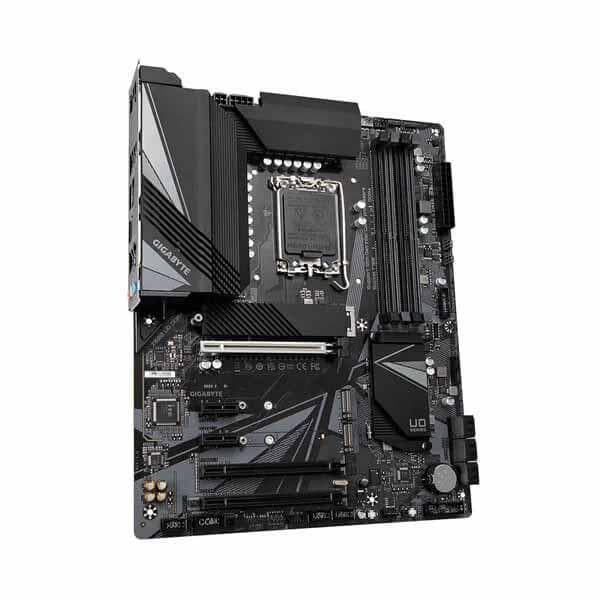

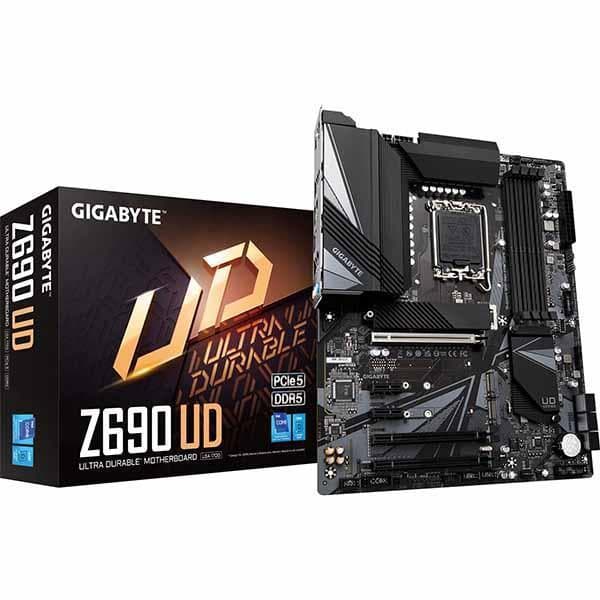

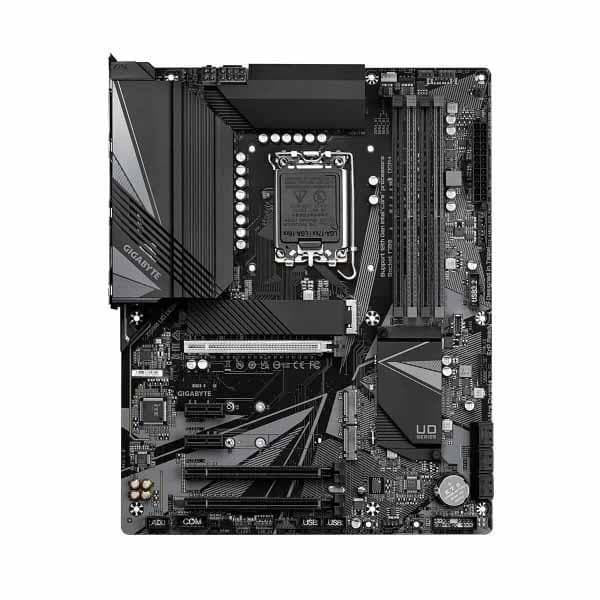

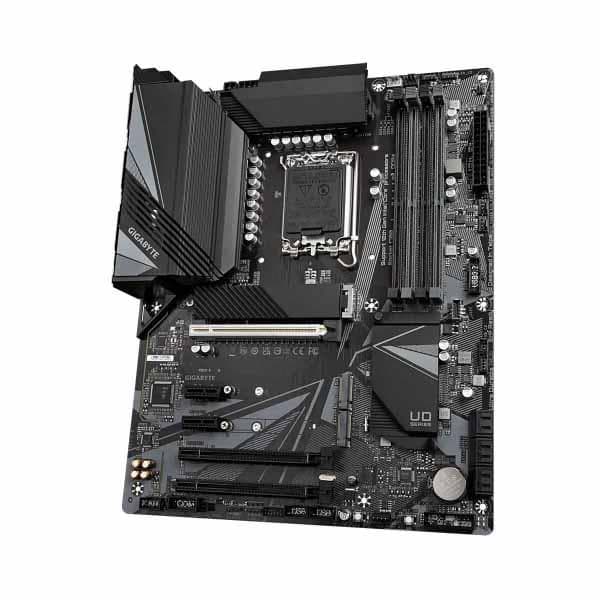

Gigabyte Z690 UD DDR5 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Brand:
Gigabyte
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- DDR5 MEMORY Design
- Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor
- Ultra Performance VRM Heatsinks
- Fast 2.5GbE LAN with Bandwidth Management
- 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
- SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0, supports Addressable LED & RGB LED Strips
... people are viewing this right now
Original price was: ₹35,000.00.₹20,899.00Current price is: ₹20,899.00.
Out of stock
Email when stock available
Gigabyte Z690 UD DDR5 Intel Motherboard
Features:
Intel® Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5 GbE LAN, Rear USB 3.2 Gen 2×2 Type-C®, Q-Flash Plus
- Z690 UD DDR5 Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor
- Ultra Performance VRM Heatsinks
- Z690 UD DDR5 Fast 2.5 GbE LAN with Bandwidth Management
- 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
- SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Overview :
UNPARALLELED PERFORMANCE
Gigabyte Z690 UD With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
ADVANCED THERMAL SOLUTION
Gigabyte Z690 UD uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
NEXT GENERATION CONNECTIVITY
Gigabyte Z690 UD Motherboard let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.
ULTRA DURABLE
Gigabyte Z690 UD features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
| Chipset | Intel Z690 |
| CPU Socket | LGA 1700 |
|

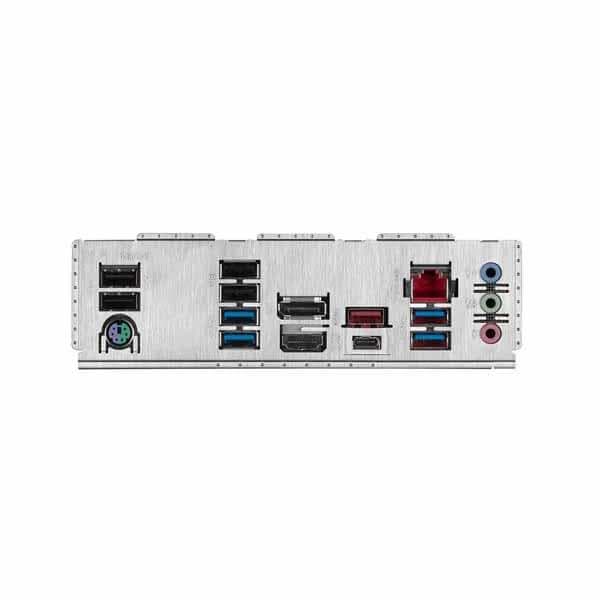

Back Panel I/O |
|
| USB | 1 x USB 3.2 Gen 2×2 Type-C |
| 1 x USB 3.1 / USB 3.2 Gen 2 Type-A | |
| 4 x USB 3.1 / USB 3.2 Gen 1 Type-A | |
| 4 x USB 2.0 Type-A | |
| Thunderbolt | None |
| Display | 1 x DisplayPort |
| 1 x HDMI | |
| Audio | 3 x 3.5 mm |
| Ethernet / Controller | 1 x Realtek 2.5Gigabit |
| PS/2 | 1 x Combo |
|
Memory |
|
| Memory Slots | 4 x 288-Pin |
| Memory Support | Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
|
Storage Expansion |
|
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) |
| 2 x M Key 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2) | |
| U.2 | None |
| Optane Memory Support | Yes |
| RAID Support | RAID 0, 1, 5, 10 |
|
Internal I/O |
|
| Expansion Slots | 1 x PCIe 5.0 x16 |
| 1 x PCIe 3.0 x16 (x4 mode) | |
| 1 x PCIe 3.0 x16 (x1 mode) | |
| 2 x PCIe 3.0 x1 | |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port) |
| 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) | |
| 2 x USB 2.0 Header (Supports 4 USB Type-A Port) | |
| Multi-GPU Support | 2-Way, Quad-GPU AMD CrossFireX |
| Air Cooling | 1 x 4-Pin CPU |
| 4 x 4-Pin System | |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard |
| 1 x 8-Pin ATX | |
| 1 x 4-Pin ATX | |
| Security | TPM Header |
| LED Header | 4 x RGB |
| Audio | 1 x S/PDIF |
| Diagnostics | Clear CMOS, Flash BIOS, Reset |
| Add-On | 1 x Thunderbolt Card Header |
| Legacy | 1 x Serial |
|
BIOS |
|
| ROM | 256 Mb |
|
Front Panel I/O |
|
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
|
Audio |
|
| Audio Codec | Realtek (7.1-Channel) |
|
Software |
|
| Supported Operating Systems | Windows 10 (64-Bit) |
|
Physical |
|
| Form Factor | ATX |
| Dimensions | 9.6 x 12.0″ / 24.4 x 30.5 cm |
| Brands | |
|---|---|
| Chipset | |
| Motherboard Size | |
| Socket | |
| Memory Series | |
| Compatibality | |
| Platform | |
| Motherboard Series | |
| Warranty | |
| EAN / UPC Code |
