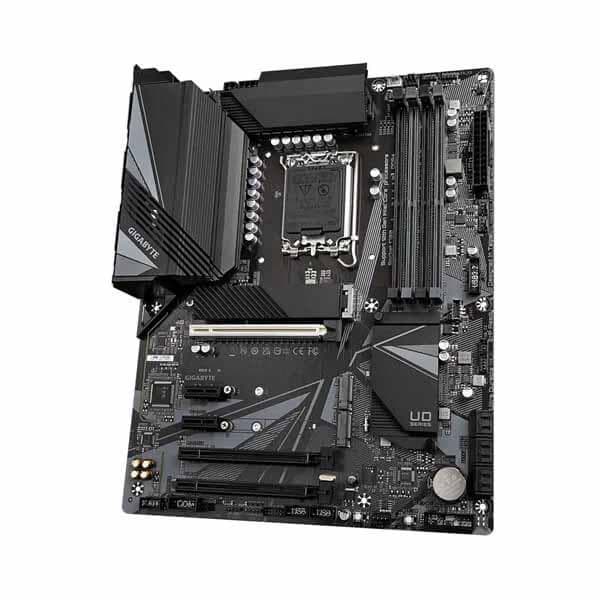

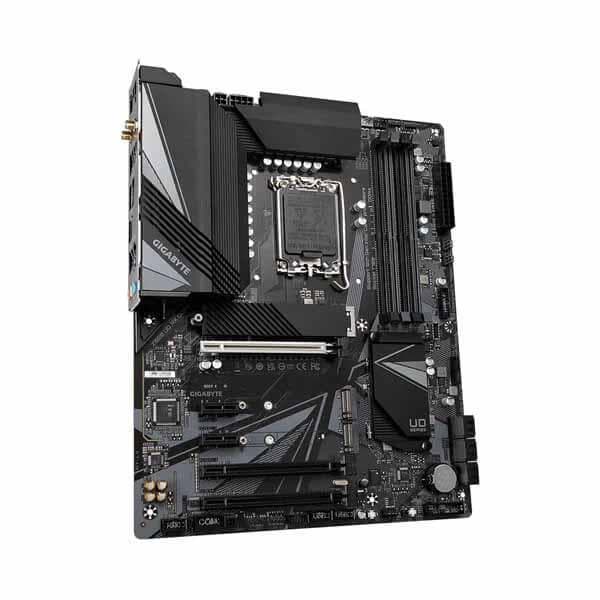

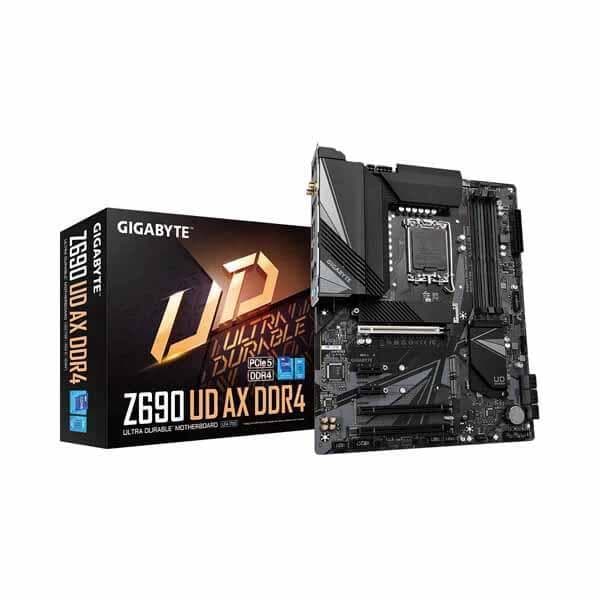

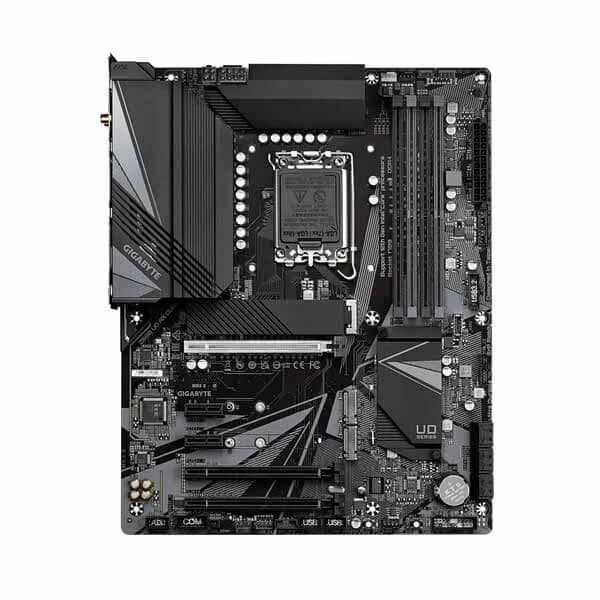

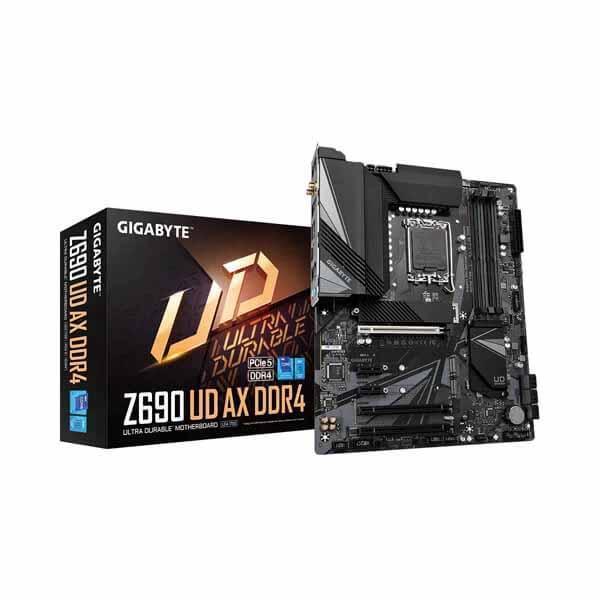

Gigabyte Z690 UD AX DDR4
Z690 UD AX DDR4 1
Z690 UD AX DDR4 2
Z690 UD AX DDR4 3
Z690 UD AX DDR4 4

Gigabyte Z690 UD AX DDR4 (Wi-Fi) Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors

Brands
Brand:
gigabyte
Gigabyte
  • Z690 UD AX DDR4 Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • DDR5 MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​
  • Ultra Performance VRM Heatsinks
  • Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
  • Fast 2.5GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
  • SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0, supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  •  Delivery & Return

    ? Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now
  Share
Guaranteed Safe Checkout

Original price was: ₹38,000.00.Current price is: ₹21,499.00.

Out of stock

Email when stock available

Description Specifications Additional information Reviews (0) Q & A

Gigabyte Z690 UD AX DDR4 (Wi-Fi) Intel Motherboard

Features:

Intel® Z690 Motherboard with Phases Digital VRM Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2×2 Type-C®, Q-Flash Plus
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​
  • Ultra Performance VRM Heatsinks
  • Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
  • Fast 2.5 GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
  • SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Overview :

UNPARALLELED PERFORMANCE

Gigabyte Z690 UD AX DDR4 With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

ADVANCED THERMAL SOLUTION

Gigabyte Z690 UD AX DDR4 uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

NEXT GENERATION CONNECTIVITY

Gigabyte Z690 UD AX Motherboard let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.

ULTRA DURABLE

Gigabyte Z690 UD AX features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  • L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset Intel® Z690 Express Chipset
Memory
  • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6 AX201
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
  • 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 3 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x serial port header
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Q-Flash Plus button
  • 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

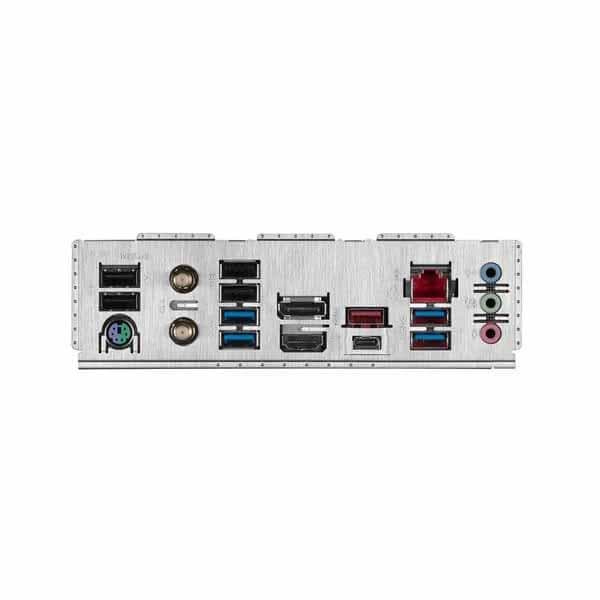

Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® Gaming LAN Bandwidth Control Utility
Operating System
  • Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty
3 Years
Note ***Features, Price and Specifications are subject to change without notice
