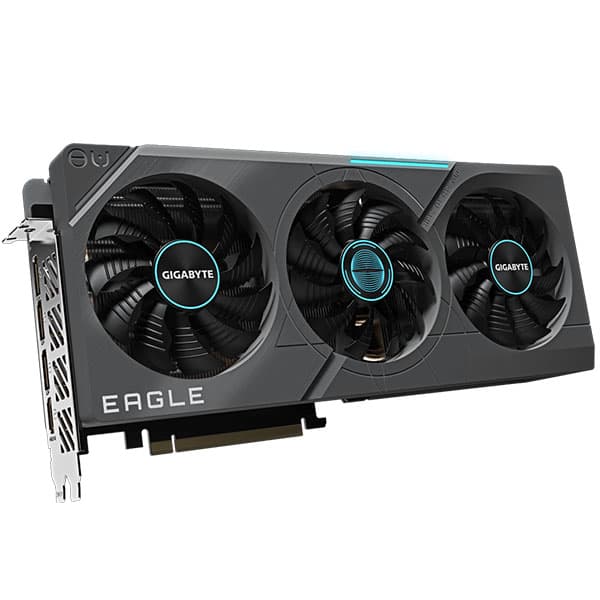

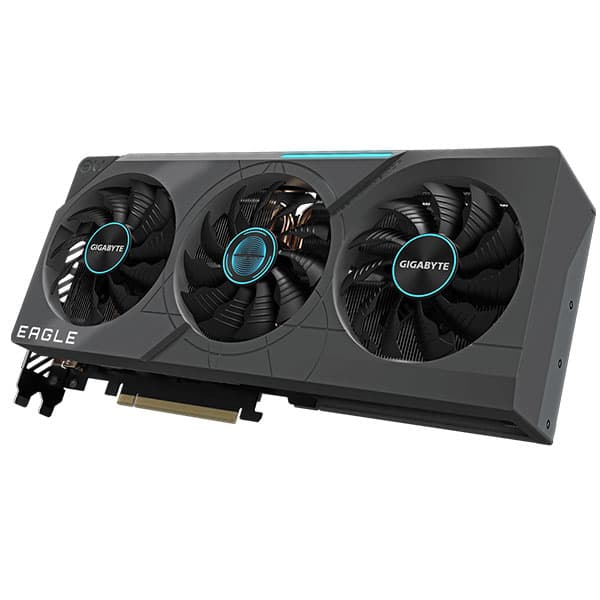

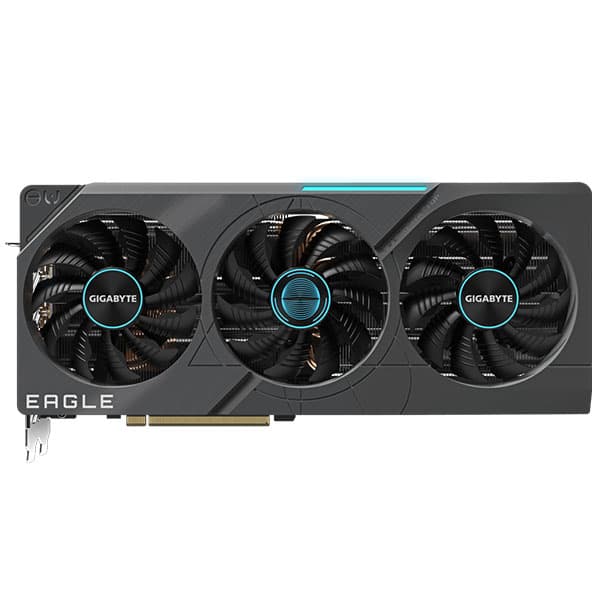

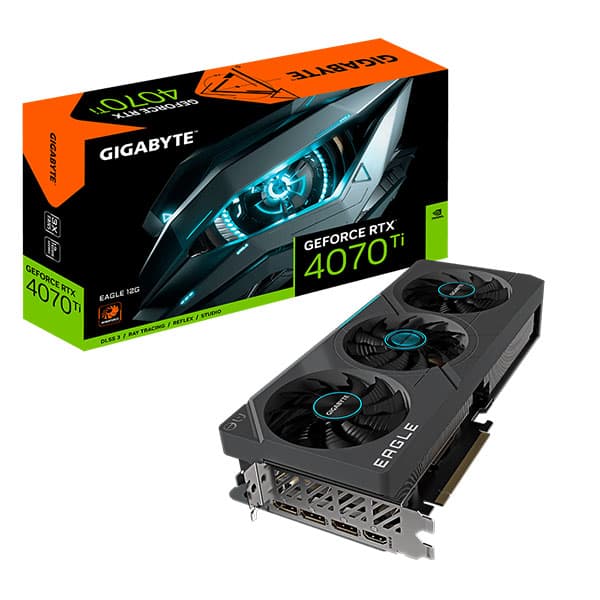

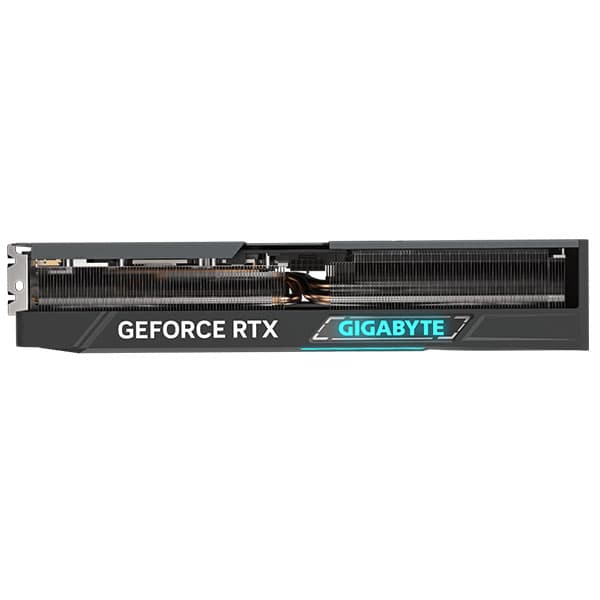

Gigabyte RTX 4070 TI Eagle 12GB GDDR6X Gaming Graphic Card
- Powered by NVIDIA DLSS 3
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2x AI performance
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Powered by GeForce RTX 4070 Ti 12GB
- Integrated with 12GB GDDR6X 192-bit memory interface
- WINDFORCE Cooling System, RGB Fusion, Dual BIOS, Protection metal back plate, Anti-Sag Bracket
Gigabyte RTX 4070 Ti EAGLE 12GB GDDR6X (GV-N407TEAGLE-12GD)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 6 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

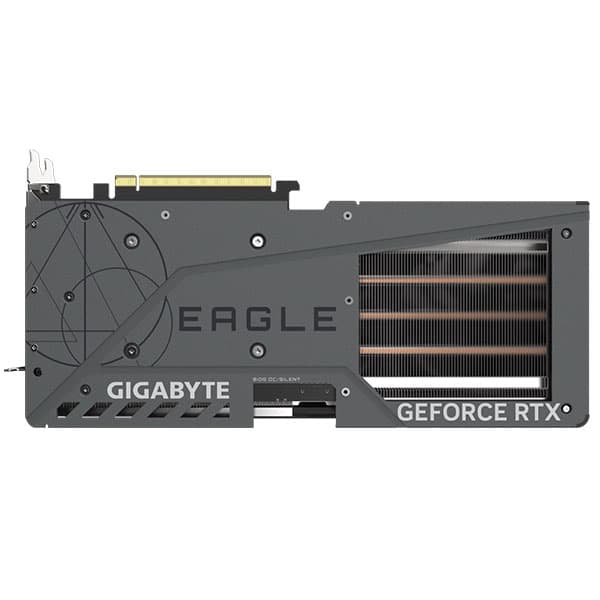

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
|Chipset||GeForce RTX™ 4070 Ti|
|Core Clock||2625 MHz (Reference card: 2610 MHz)|
|Memory Clock||21 Gbps|
|Memory Bus||192 bit|
|Card Bus||PCI-E 4.0|
|Dimension||L=301 W=136 H=58 mm|
|Recommended PSU||750 W|
|Power Connectors||16 Pin*1|

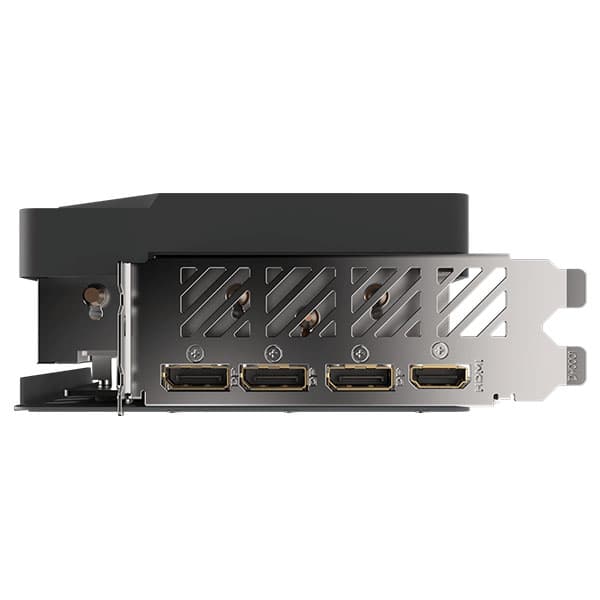

|Output||DisplayPort 1.4 *3 HDMI 2.1 *1|
|Accessories||1. Quick guide 2. Anti-sag bracket 3. Anti-sag bracket installation guide 4. One 16-pin to two 8-pin power adaptor.|
|Note*||Price, features, and specifications are subject to change without notice.|
