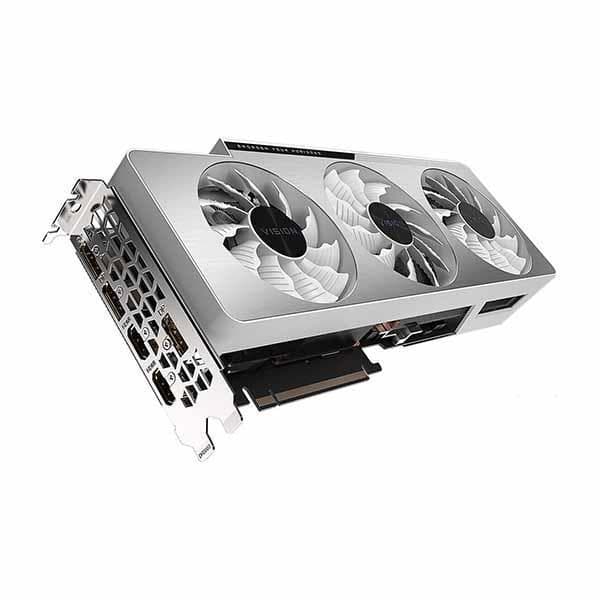

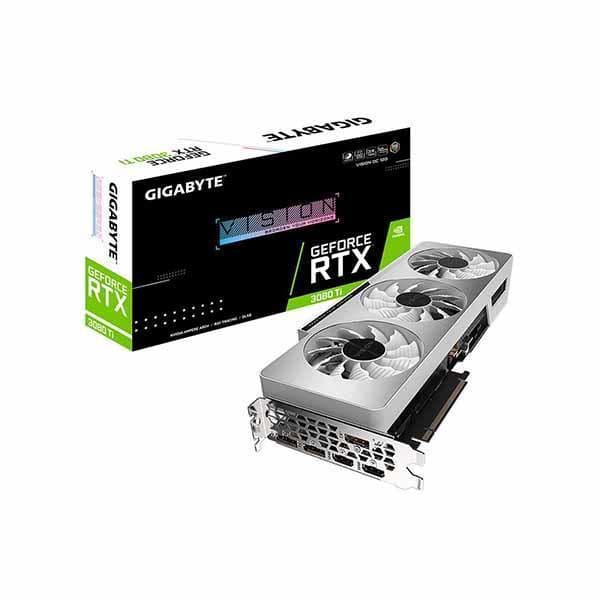

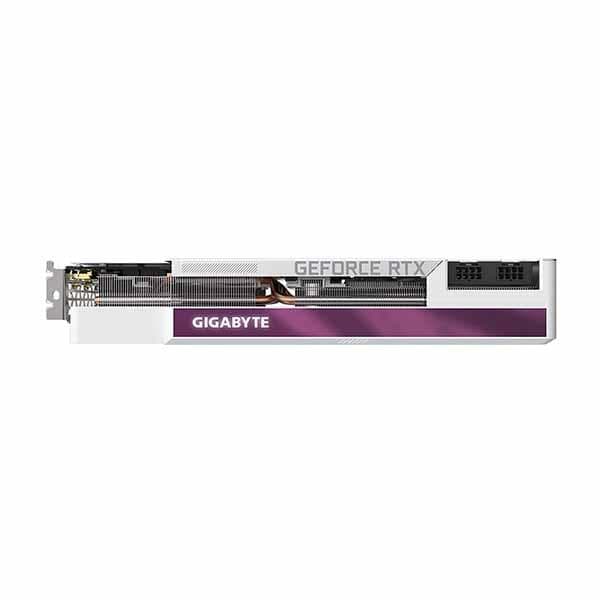

GIGABYTE GeForce RTX 3080 Ti VISION OC 12G
- RTX 3080 Ti VISION OC 12GB 384-Bit GDDR6X
- Core Clock 1710 MHz
- 2 x HDMI 2.1 3 x DisplayPort 1.4a
- 10240 CUDA Cores
- PCI Express 4.0
₹85,000.00
GIGABYTE GeForce RTX 3080 Ti VISION OC 12G
GIGABYTE VISION OC GeForce RTX 3080 Ti 12GB GDDR6X PCI Express 4.0 ATX Video Card GV-N308TVISION OC-12GD
EATURES
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX 3080 Ti VISION OC
- Integrated with 12GB GDDR6X 384-bit memory interface
- RTX 3080 Ti VISION OC WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate
CORE CLOCK
1710 MHz (Reference Card: 1665 MHz)
CREATE YOUR WORK FASTER THAN EVER
Powerful GeForce RTX 30 VISION sereies accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING?3D ANIMATION?PHOTOGRAPHY?GRAPHIC DESIGN?ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.

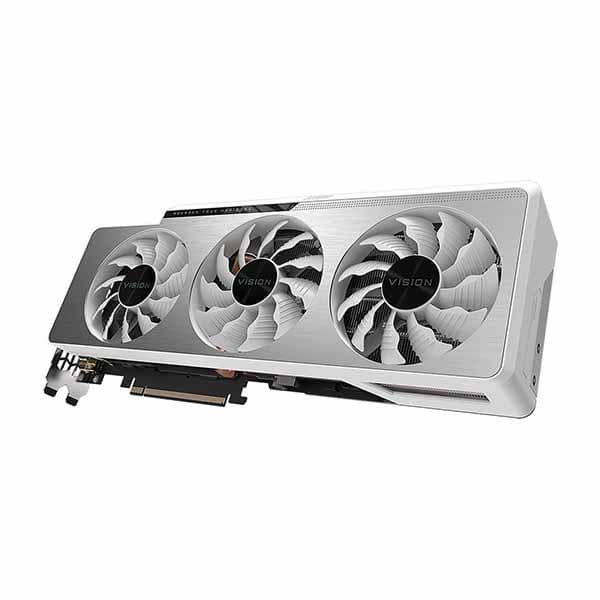

RTX 3080 Ti VISION OC WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features two 90mm and one 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
3D ACTIVE FAN
RTX 3080 Ti VISION OC 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
EXCELLENCE

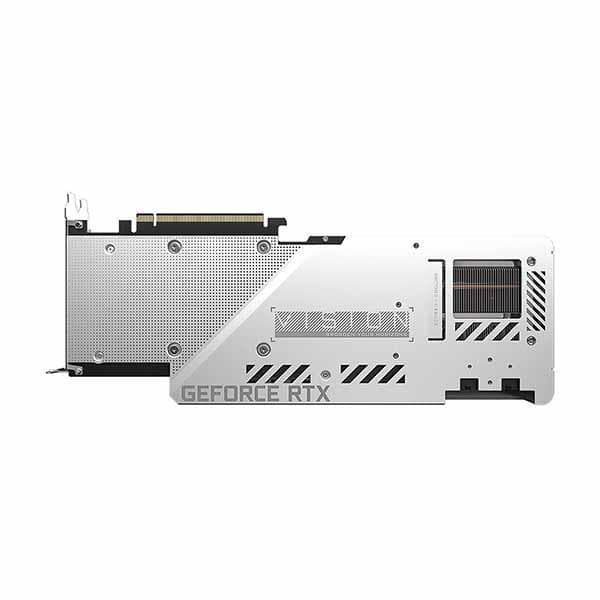

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
| Model | |
| Brand | GIGABYTE |
| Series | VISION OC |
| Model | GV-N308TVISION OC-12GD |
| Interface | |
| Interface | PCI Express 4.0 |
| Chipset | |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 30 Series |
| GPU | GeForce RTX 3080 Ti |
| Architechture | Ampere |
| Core Clock | 1710 MHz |
| CUDA Cores | 10240 |
| Memory | |
| Effective Memory Clock | 19000 MHz |
| Memory Size | 12GB |
| Memory Interface | 384-Bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Ports | |
| Multi-Monitor Support | 4 |

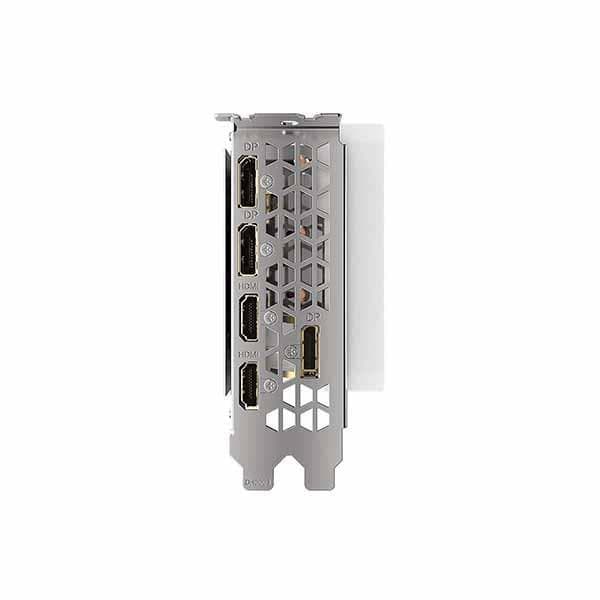

| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Details | |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | WINDFORCE 3X |
| Recommended PSU Wattage | 750W |
| Power Connector | 2 x 8-Pin |
| Features | |
| Features | NVIDIA Ampere Streaming Multiprocessors |
| 2nd Generation RT Cores | |
| 3rd Generation Tensor Cores | |
| Powered by GeForce RTX 3080 Ti | |
| Integrated with 12GB GDDR6X 384-bit memory interface | |
| WINDFORCE 3X Cooling System with alternate spinning fans | |
| RGB Fusion 2.0 | |
| Protection metal back plate | |
| Form Factor & Dimensions | |
| Form Factor | ATX |
| Max GPU Length | 320 mm |
| Card Dimensions (L x H) | 12.60″ x 4.96″ |
| Slot Width | 2.7 slot |
| Packaging | |
| Package Contents | Accessories |
| Quick guide |
| Weight | 2 kg |
|---|---|
| Dimensions | 32 × 13 × 6 cm |
| Brands | |
| Memory Bus | |
| Cooling Type | |
| Memory Series | |
| GPU Memory Size | |
| GPU Series | |
| GPU Chipset | |
| TDP | |
| Warranty | |
| EAN / UPC Code |
GIGABYTE GeForce RTX 3080 Ti VISION OC 12G
Q & A
The GIGABYTE GeForce RTX 3080 Ti VISION OC 12G graphics card uses standard PCIe 8-pin and 12-pin power connectors for power supply. The dimensions of the graphics card are 320mm x 126mm x 58mm (12.6" x 4.96" x 2.28")
