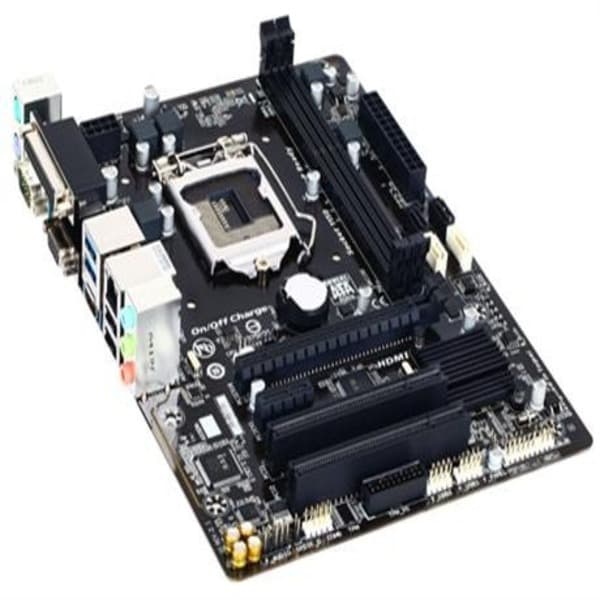

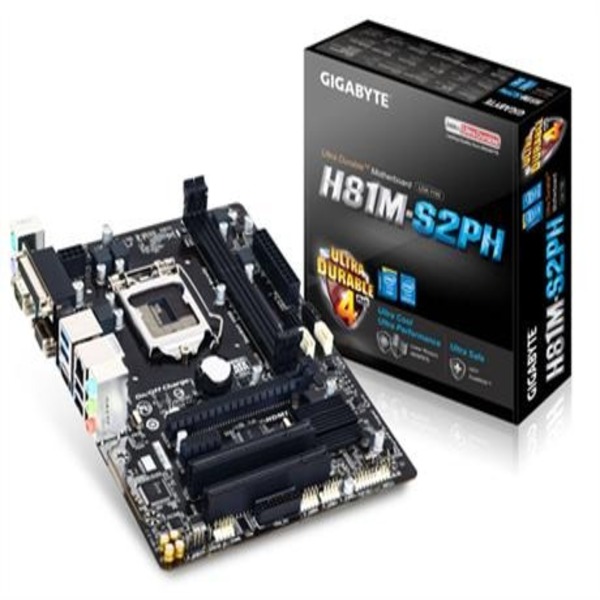

Gigabyte H81M-S2PH m-ATX Intel Motherboard

Gigabyte H81M-S2PH m-ATX Intel Motherboard

Feature

GIGABYTE 8 Series Motherboards

Gigabyte H81M S2PH is a fast and ultra durable entry level budget friendly for 4th generation motherboard for everyday office and home use with both HDMI 1.4a and VGA displays. It also adds a Dual BIOS 64Mbit, HDMI, VGA display, more PCI slots, 8 USB Slot, Realtek 1Gbps LAN, 2 RAM DDR3 slots – 1333 to 1600 MHz FSB and much more.

GIGABYTE H81M-S2PH Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Ultra Performance

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Ultra Safe

GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

Humidity Protection

Humidity can play havoc on a motherboard’s circuitry.GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Power Failure Protection

GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

Electrostatic Protection

GIGABYTE H81M-S2PH motherboard feature High Resistance ICs which help protect the motherboard against electrostatic discharge.

High ESD Protection for USB and LAN (USB 3.0 only)

GIGABYTE H81M-S2PH 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

One Fuse per USB Port (USB 3.0 only)

On GIGABYTE H81M-S2PH 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer

GIGABYTE One Fuse per
USB Port Design Traditional One Fuse Design
for Multi-USB Ports

On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE’s highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger…more

LAN Optimizer – Intelligent optimization network management tool

GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.

GIGABYTE EasyTune

GIGABYTE EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings.

GIGABYTE Smart Fan 2

As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans.

GIGABYTE @BIOS

The new and updated GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

GIGABYTE EZ Setup

GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.
