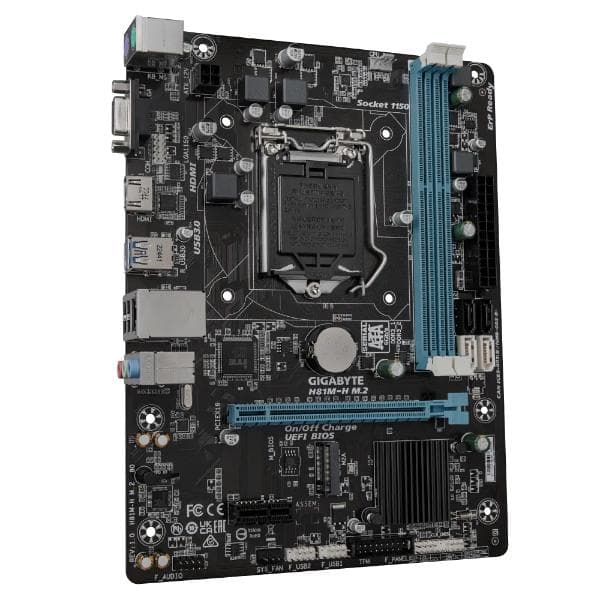

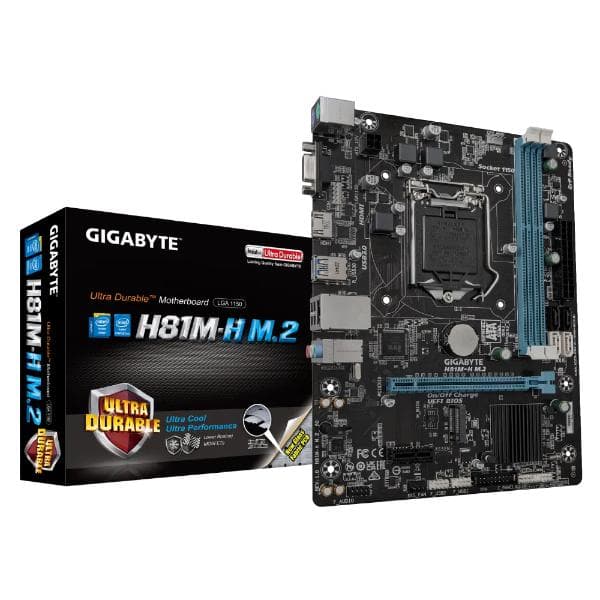

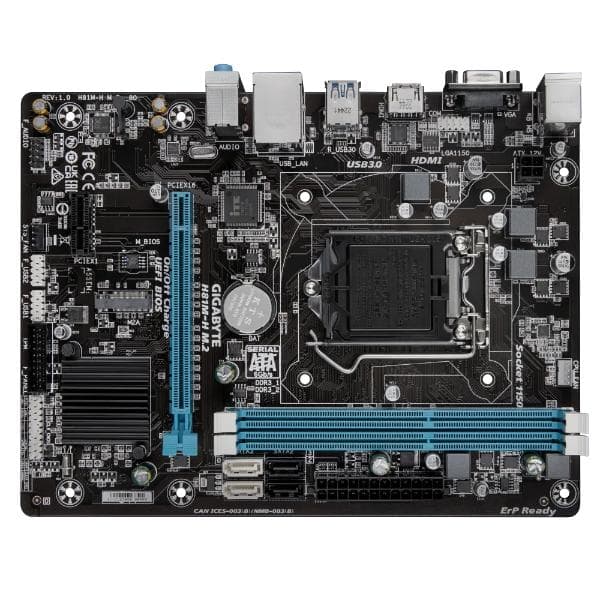

Gigabyte H81M-H M.2 (rev. 1.0) LGA 1150 DDR3 Intel Motherboard
17 sold in last 11 hours
Hurry! Over 2 people have this in their carts
Brand:
Gigabyte
- Supports 4th Generation Intel® Core™ processors
- GIGABYTE Ultra Durable™ Technology
- GIGABYTE UEFI BIOS
- GIGABYTE On/Off Charge™ for USB devices
- LAN with high ESD Protection
- NVMe PCIe Gen2 x4 M.2 Connector

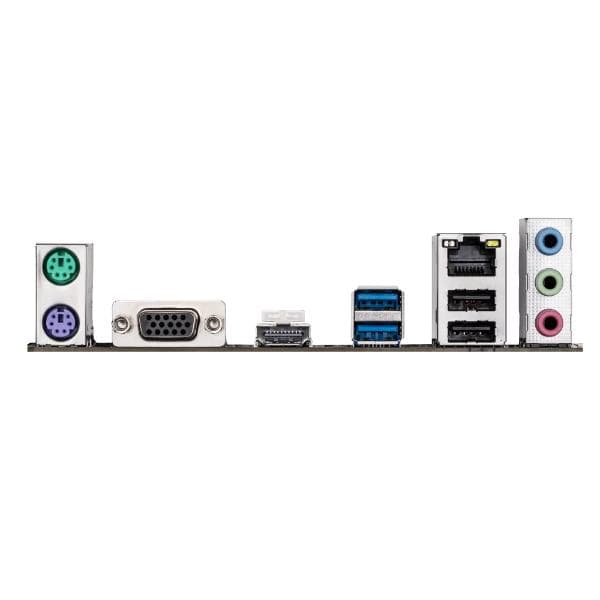

- HDMI, D-SUB port on rear panel
- Solid capacitors for CPU VRM design
Estimated Delivery: Thu, Jan 01 – Mon, Jan 05
... people are viewing this right now
Original price was: ₹8,000.00.₹6,999.00Current price is: ₹6,999.00.
Gigabyte H81M-H M.2 rev. 1.0 Micro ATX Motherboard ( Socket Intel LGA1150, Support 4th Generation Intel Core CPU And Intel Celeron CPU, 2 x DDR3 RAM Slots, Max 16 GB )
GIGABYTE 8 Series Motherboards
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.
Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
NVMe PCIe Gen2 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
GIGABYTE Ultra Durable™
GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Ultra Performance
 |
GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
|
||||||
Humidity Protection
Humidity can play havoc on a motherboard’s circuitry.GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Power Failure Protection
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
Electrostatic Protection
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
High ESD Protection for USB and LAN (USB 3.0 only)
GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today’s standard HD pixel density. GIGABYTE 8 series motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE’s highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger…more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
GIGABYTE App Center
GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.
GIGABYTE EasyTune
| GIGABYTE EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings. |
| GIGABYTE Smart Fan 2 |
| As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans. |
 |
GIGABYTE @BIOS
The new and updated GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.
GIGABYTE EZ Setup
GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.
| Component | Specification |
|---|---|
| CPU | Supports Intel® Core™ i7/i5/i3 Processors, Pentium® Processors, Celeron® Processors (LGA1150) (L3 cache varies with CPU, refer to "CPU Support List") |
| Chipset | Intel® H81 Express Chipset |
| Memory | 2 x DDR3 DIMM sockets, Up to 16GB DDR3 1600/1333 MHz (Dual Channel) * Due to Windows 32-bit limitations, usable memory may be less than 4GB if more than 4GB is installed. |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics - 1 x D-Sub port (1920x1200) - 1 x HDMI port (4096x2160, HDMI 1.4a) - Max 1GB Shared Memory |
| Audio | Realtek® Audio CODEC, High Definition Audio (2/4/5.1/7.1 Channel) |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, 1 x PCI Express x1 slot (PCI Express 2.0) |
| Storage Interface | Chipset: |
| - 1 x M.2 connector (SATA and PCIe 2.0 x4/x2 SSD support) | |
| - 2 x SATA 6Gb/s connectors (SATA3 0/1) | |
| - 2 x SATA 3Gb/s connectors (SATA2 2/3) (M2A connector shares bandwidth with SATA3 0 connector. Refer to "2-7 Internal Connectors" for details.) | |
| USB | Chipset: |
| - 2 x USB 3.0/2.0 ports on back panel - 6 x USB 2.0/1.1 ports (2 on back panel, 4 internal) | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan Speed, Overheating Warning, Fan Fail Warning, Fan Speed Control (fan dependent) |
| BIOS | 1 x 32 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for Q-Flash, APP Center (applications and functions may vary), EasyTune, EZ Setup, USB Blocker, Smart TimeLock, Smart Recovery 2, ON/OFF Charge |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Supports Windows 10/7 |
Add a review
Currently, we are not accepting new reviews
Q & A
Ask a question
Gigabyte H81M-H M.2 (rev. 1.0) LGA 1150 DDR3 Intel Motherboard
Your question
* Question is required
Name
* Name is required
Email
* Email is required
Does this m/b support Patriot PSD316G1600KH 2x8GB DDR3 ram ?
YES, THE GIGABYTE H81M-H M.2 (REV. 1.0) MOTHERBOARD SUPPORTS PATRIOT PSD316G1600KH 2X8GB DDR3 RAM. IT HAS TWO DDR3 DIMM SLOTS AND CAN HANDLE UP TO 16GB OF DDR3 1600/1333 MHZ MEMORY IN DUAL CHANNEL MODE.
(0)
(0)
Add an answer
Your answer
* Answer is required
Name
* Name is required
Email
* Email is required
Can support i3 3240 ? And NVMe generation?
THE GIGABYTE H81M-H M.2 (REV. 1.0) LGA 1150 DDR3 INTEL MOTHERBOARD IS COMPATIBLE WITH THE INTEL CORE i3-3240 PROCESSOR. IT SUPPORTS NVMe SSDS THROUGH ITS NVMe PCIe GEN2 x4 M.2 CONNECTOR. THIS MOTHERBOARD FEATURES GIGABYTE ULTRA DURABLE TECHNOLOGY AND UEFI BIOS, MAKING IT AN IDEAL CHOICE FOR BUILDING SYSTEMS WITH THE i3-3240 AND NVMe SSDS.
(0)
(0)
Add an answer
Your answer
* Answer is required
Name
* Name is required
Email
* Email is required
