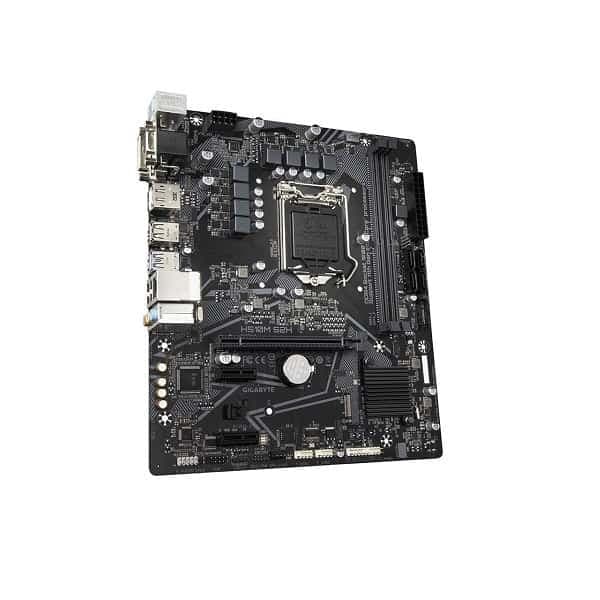

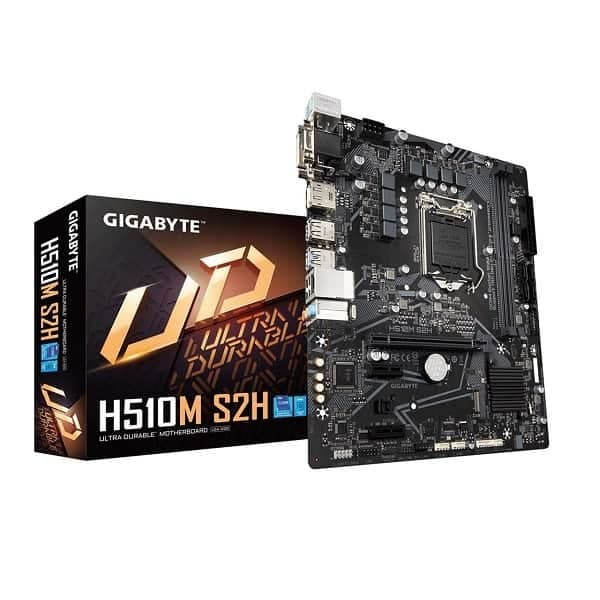

Gigabyte H510m S2h Micro-atx Intel Motherboard
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
- GIGABYTE H510M S2H Exclusive 8118 Gaming LAN with Bandwidth Management
- 4 Display Interfaces Support
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹11,160.00 Original price was: ₹11,160.00.₹6,499.00Current price is: ₹6,499.00.
Out of stock
Email when stock available
GIGABYTE H510M S2H MICRO-ATX INTEL MOTHERBOARD
Feature
6+2 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 6+2 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Single 32GB Support
The maximum memory capacity on the H510 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
High-End Audio Capacitors
GIGABYTE H510M S2H motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE H510M S2H motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
* Maximum support of 2 independent display at one time.
Solid Pin Power Connectors
H510m motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Main Features
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
- GIGABYTE H510M S2H Exclusive 8118 Gaming LAN with Bandwidth Management
- 3 Display Interfaces Support
- High Quality Audio Capacitors and Audio Noise
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE H510M S2H APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Model | |
Brand | GIGABYTE |
Model | H510M S2H (rev. 1.0) |
Supported CPU | |
CPU Socket Type | LGA 1200 |
CPU Type | Supports 11th / 10th Gen Intel Core processors |
Supports Intel Pentium / Celeron processors* | |
* Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family. | |
Chipsets | |
Chipset | Intel H510 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Memory | |
Number of Memory Slots | 2x288pin (DDR4) |
Memory Standard | DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 (11th Generation Intel Core i9 / i7 / i5 processors) |
DDR4 2933 / 2666 / 2400 / 2133 (10th Generation Intel Core i9 / i7 processors) | |
DDR4 2666 / 2400 / 2133 (10th Generation Intel Core i5 / i3 / Pentium / Celeron processors) | |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* |
* Actual support may vary by CPU. | |
PCI Express x1 | 2 x PCI Express 3.0 x1 |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
* The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. | |
Onboard Audio | |
Audio Chipset | Realtek Audio CODEC |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Realtek GbE LAN chip |
Max LAN Speed | 10/100/1000Mbps |

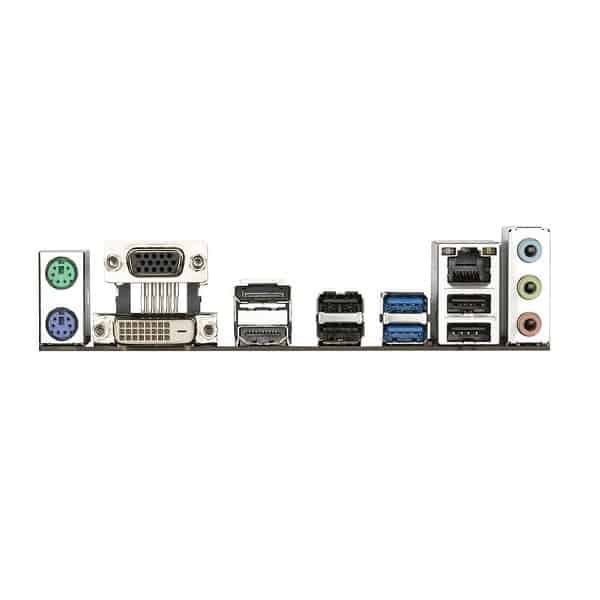

Rear Panel Ports | |
Back I/O Ports | 1 x PS/2 keyboard port |
1 x PS/2 mouse port | |
1 x D-Sub port | |
1 x DVI-D port | |
1 x DisplayPorts | |
1 x HDMI port | |
2 x USB 3.2 Gen 1 ports | |
4 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
Internal I/O Connectors | |
Onboard USB | 1 x USB 3.2 Gen 1 header |
2 x USB 2.0/1.1 headers | |
Other Connectors | 1 x CPU fan header |
2 x system fan headers | |
1 x RGB LED strip header | |
1 x front panel header | |
1 x front panel audio header | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x serial port header | |
1 x Clear CMOS jumper | |
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. | |
Physical Spec | |
Form Factor | Micro ATX |
LED Lighting | RGB |
Dimensions (W x L) | 9.6″ x 8.3″ |
Power Pin | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
Windows Compatibility | |
Windows 11 | Supported |
Features | |
Features | I/O Controller: |
iTE I/O Controller Chip | |
H/W Monitoring: | |
Voltage detection | |
Temperature detection | |
Fan speed detection | |
Overheating warning | |
Fan fail warning | |
Fan speed control | |
* Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS: | |
1 x 256 Mbit flash | |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features: | |
Support for APP Center | |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
@BIOS | |
Ambient LED | |
EasyTune | |
Fast Boot | |
Game Boost | |
ON/OFF Charge | |
Smart Backup | |
System Information Viewer | |
Support for Q-Flash | |
Support for Xpress Install | |
Bundled Software: | |
Norton Internet Security (OEM version) | |
Realtek 8118 Gaming LAN Bandwidth Control Utility | |
Operating System: | |
Support for Windows 10 64-bit |
Product Type | |
---|---|
color | |
Brands | |
Socket | |
Chipset | |
Memory Series | |
Motherboard Series | |
Platform | |
Warranty | |
EAN / UPC Code |
