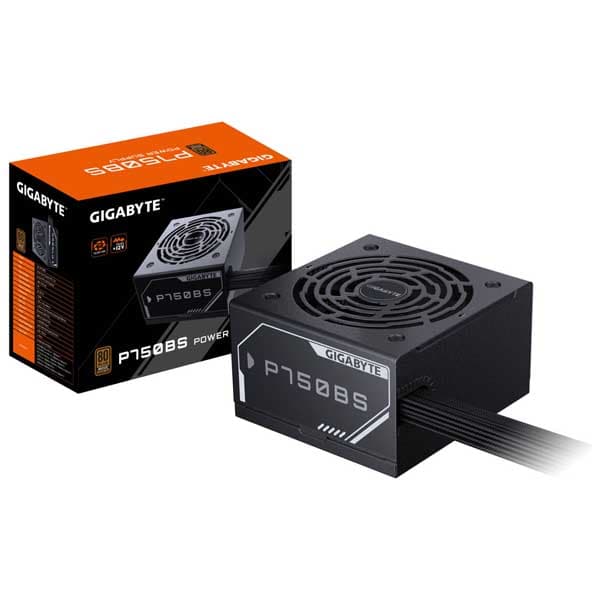

GIGABYTE GP-P750BS 750W Non-Modular 80 Plus Bronze Power Supply
The 80 Plus Bronze certification (230V EU) guarantees a 88% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.
The embossed design of soft-textured cables enhances friction between the cable and surfaces, reducing wear and tear for a longer lifespan. It also effectively prevents tangling and knotting, keeping cables neat and tidy. The soft material provides a comfortable touch, while the variety of embossed patterns adds a touch of aesthetics to the product.
Gigabyte
Black
Non-Modular
750W
1 Year
4719331555238
GP-P750BS
2 kg
N/A
| Category | Specifications |
|---|---|
| Model | GP-P750BS |
| Type | Intel Form Factor ATX 12V |
| Output Capacity | 750W |
| PFC | Active PFC (>0.9 Typical) |
| Input Voltage | 200–240 Vac |
| Input Current | 6 A |
| Input Frequency | 50–60 Hz |
| Dimensions | 150 × 140 × 86 mm |
| Fan Type | 120 mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS Certification | Bronze (230V EU) |
| Efficiency | 88% at Typical Load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100–150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Embossed, All Black |
| ATX/MB 20+4 Pin | 1 × 600 mm |
| CPU/EPS 4+4 Pin | 2 × (600 mm + 150 mm) |
| PCI-E 6+2 Pin | 4 × (500 mm + 150 mm) |
| SATA Connectors | 4 × (500 mm + 150 mm + 150 mm + 150 mm) |
| SATA + Peripheral Connectors | 3 × SATA + 1 × Peripheral (500 mm + 150 mm + 150 mm + 150 mm) |
