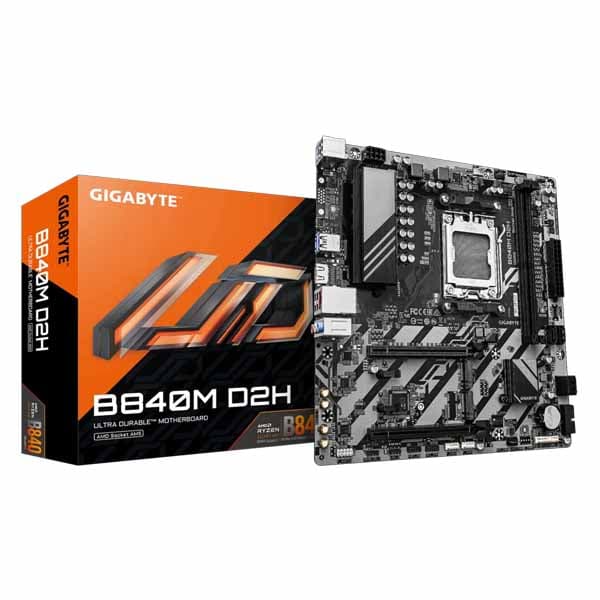

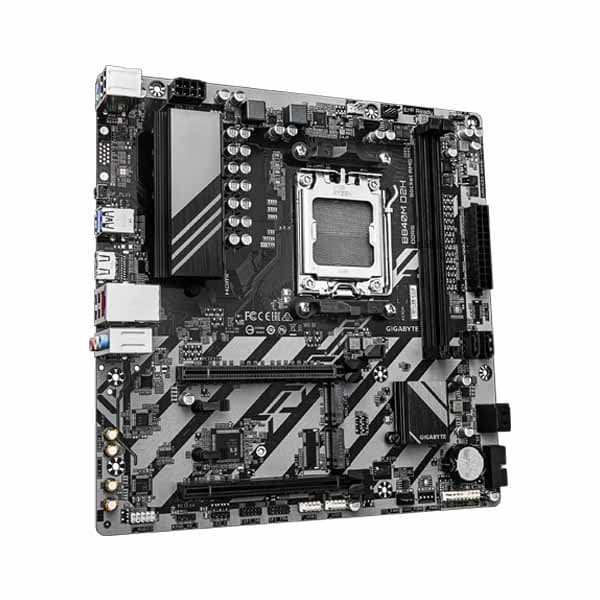

Gigabyte B840M D2H AMD AM5 M-ATX Motherboard
3 sold in last 20 hours
Hurry! Over 6 people have this in their carts
Brand:
Gigabyte
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPO™ Memory Module Support
Estimated Delivery: Tue, Feb 10 – Sat, Feb 14
... people are viewing this right now
Original price was: ₹46,000.00.₹11,089.00Current price is: ₹11,089.00.
Gigabyte B840M D2H AMD AM5 M-ATX Motherboard
Feature
- Gigabyte X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPO™ Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
- Fast Networking : 2.5GbE LAN
Brand New Gaming Experience
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.
One-Click Acceleration:
Enhance Gaming FPS Performance with a single click.
AORUS AI SNATCH
Unleash Ultimate Performance with One-Click Activation.
AORUS AI SNATCH
Unleash Ultimate Performance with One-Click Activation.
Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance CPU & DDR5 speeds with a single click.
- Real time Analyze
- OC accuracy UP
- EZ to Pro
AI-Driven PCB Technology
-Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
- AI-ViaFusion TechnologyOptimized vias & pads for signal integrity
- AI-Trace TechnologySmart routing for peak performance
- AI-Layer TechnologyTailored stackups for enhanced functionality
Key Features:
AI-Generated Design Recipes
AI-Driven Simulation
AI-Powered Signal Verification
Single and cross-layer signal optimization
HyperTune BIOS – AI-Driven Advanced BIOS Optimization Technology
BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimize signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
AI-Enhanced Performance Optimization
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE’s AI-Enhanced HyperTune – Unleashing next-gen BIOS performance.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
- 5+2+2 Phases digital PWM + 60A DrMOS
- Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
Infinite Memory Performance
GIGABYTE UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 4.0 Hardware Design
Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.
* Photo for reference only.
Hi-Fi Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
* Photo for reference only.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
PCIe EZ-Latch
Easy ejection with single click for graphics cards
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
| Category | Details |
|---|---|
| CPU | AMD Socket AM5, support for: |
| - AMD Ryzen™ 9000 Series Processors | |
| - AMD Ryzen™ 8000 Series Processors | |
| - AMD Ryzen™ 7000 Series Processors | |
| (Go to GIGABYTE's website for the latest CPU support list.) | |
| Chipset | AMD B840 |
| Memory | Support for DDR5 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| ** Support for native HDMI 2.1 TMDS compatible ports. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode | |
| - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: |
| - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs | |
| - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| - 2 x USB 3.2 Gen 1 ports on the back panel | |
| CPU+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| - 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 1 x system fan header | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x SATA 6Gb/s connectors | |
| 2 x M.2 Socket 3 connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

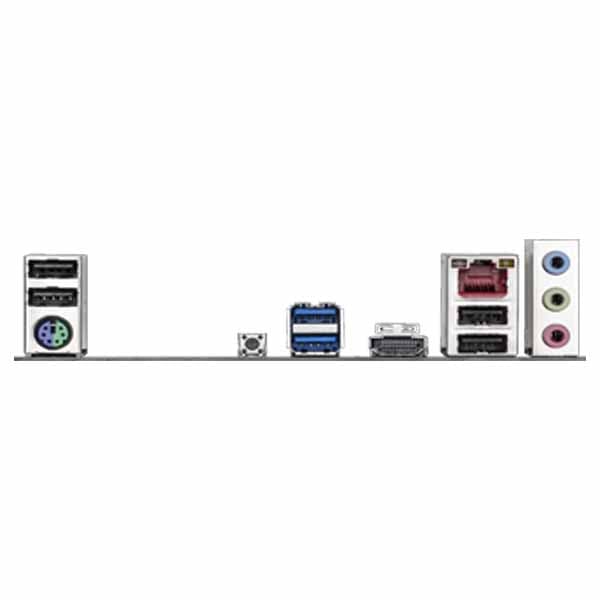

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 2 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x HDMI port* | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| * Actual support may vary by CPU. | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3-year warranty |
