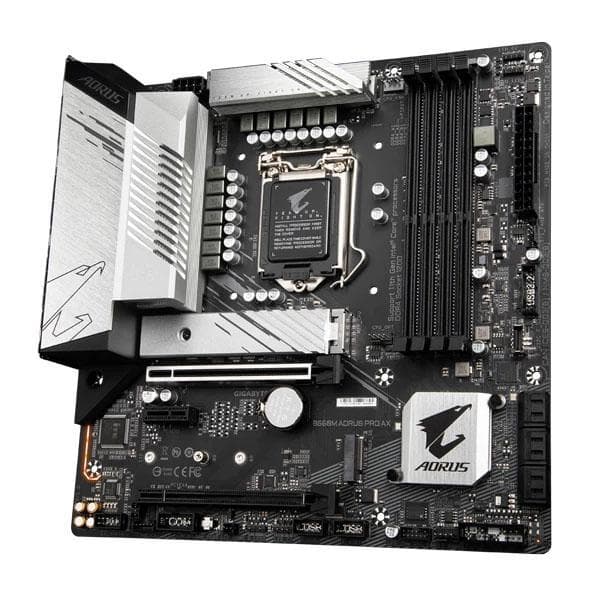

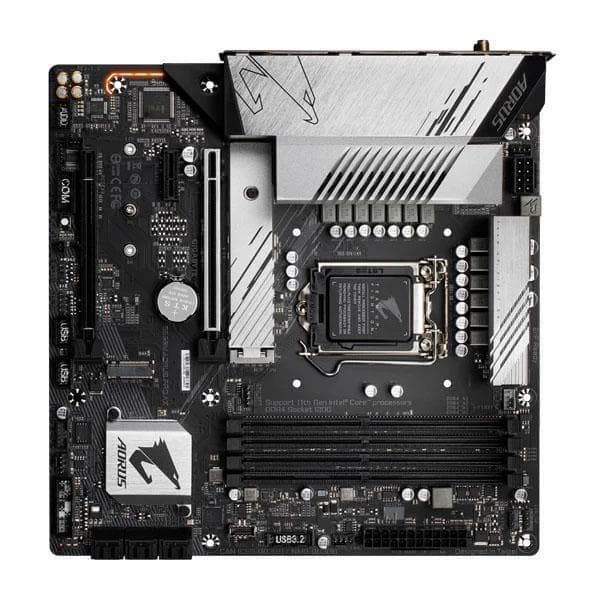

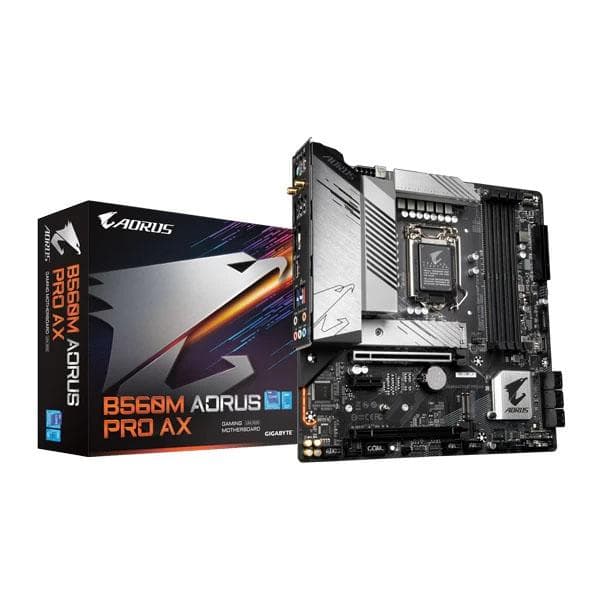

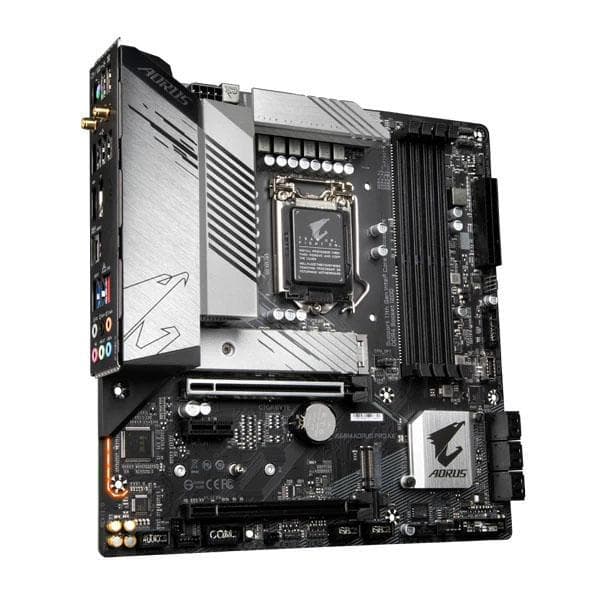

Gigabyte B560M Aorus PRO AX (Wi-Fi) Intel Motherboard

Brands
  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s Transfer Speeds
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now
  Share
Guaranteed Safe Checkout

₹14,550.00

Out of stock

Email when stock available

Description Specifications Additional information Reviews (0) Q & A

Gigabyte B560M Aorus PRO AX (Wi-Fi) Intel Motherboard

Gigabyte B560M Aorus PRO AX M-ATX Form Factor Motherboard, Features Unlocked Memory Support, All new 11th Gen Rocket Lake CPU Support, DDR4 5333 Mhz and Upto 128GB Memory Support, Includes 2.5 Gigabit Lan, Intel AX200 WiFi 6 and HD Audio Connectivity.

Features

  • B560M Aorus PRO AX Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s Transfer Speeds
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.

Description Specifications Additional information Reviews (0) Q & A
CPU LGA1200 package:
  1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  3. L3 cache varies with CPU
Chipset Intel® B560 Express Chipset
Memory
  1. 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® Audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
LAN
  1. Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module Intel® Wi-Fi 6 AX200
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only.
Chipset:
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
USB Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support
  2. 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
  3. 2 x USB 3.2 Gen1 ports on the back panel
  4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
  1. 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
  2. 2 x USB 3.2 Gen1 ports available through the internal USB header
Chipset+ 2 USB 2.0 Hub:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 2 x M.2 Socket 3 connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 2 x Thunderbolt™ add-in card connectors
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper
  19. 1 x Q-Flash Plus button
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

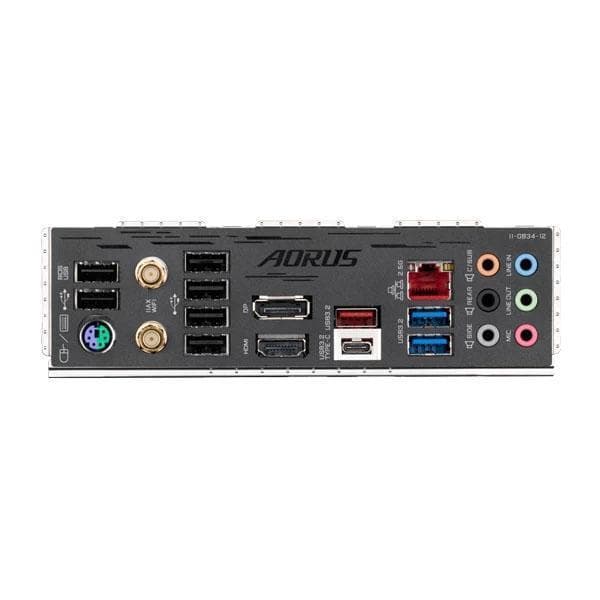

Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB Type-C® port, with USB 3.2 Gen2x2 support
  • 1 x USB 3.2 Gen2 Type-A port (red)
  • 2 x USB 3.2 Gen1 ports
  • 6 x USB 2.0/1.1 ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x RJ-45 port
  • 6 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software Norton® Internet Security (OEM version) cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Waarranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Description Specifications Additional information Reviews (0) Q & A
Weight 1 kg
Dimensions 27 × 27 × 7 cm
