Gigabyte B550 Vision D-P Motherboard

Brands
3 sold in last 15 hours
Hurry! Over 7 people have this in their carts
  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer by dual PCIe 4.0/3.0 x16 and one PCIe 3.0 x16 slots
  • Fully Quadro® QVL Tested
  • The limitless connectivity by Thunderbolt™ 3
  • High-bandwidth and low-latency network support by dual 2.5GbE Ethernet
  • Intel® Wi-Fi 6 802.11ax makes latency a thing of the past
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
  • Comprehensive connectivity with USB3.2 Gen 2 Type-A and Type-C™ connection
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  •  Delivery & Return

    ? Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  Estimated Delivery: Dec 24 – Dec 28
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

Original price was: ₹39,289.00.Current price is: ₹22,499.00.

+

Features

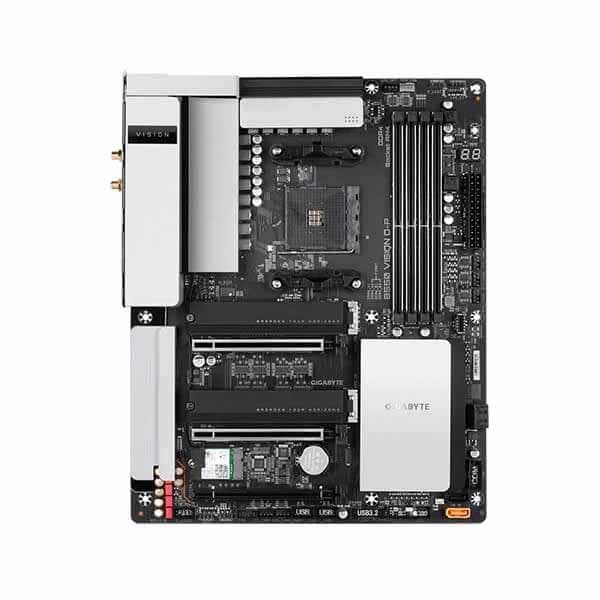

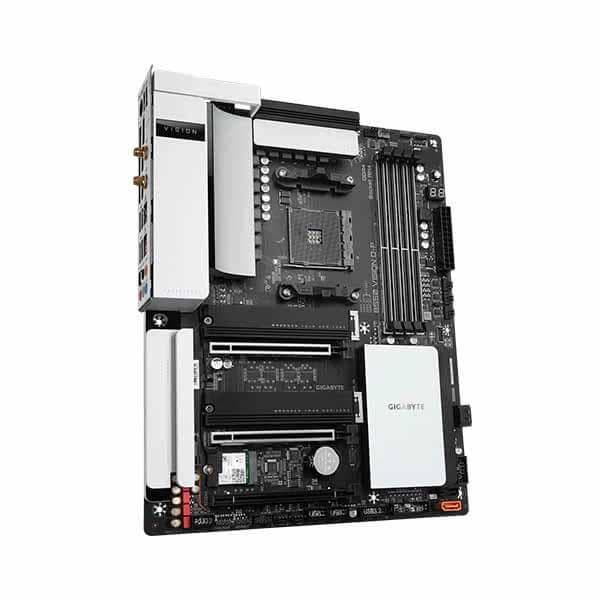

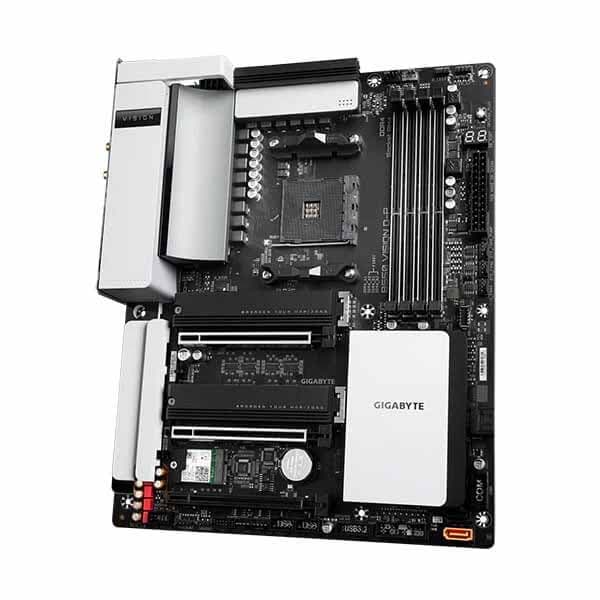

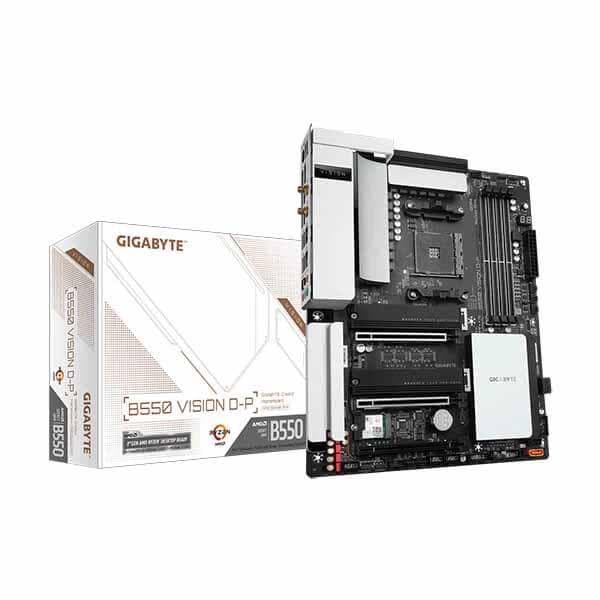

Gigabyte B550 Vision D-P Motherboard

AMD B550 Vision D-P Creators Motherboard with Intel Thunderbolt™ 3 certification, effective cooling solution, DDR4 ECC & Non-ECC memory, Intel® Wi-Fi 6 802.11ax and dual 2.5GbE LAN, Triple PCIe 4.0/3.0 x16 slots, Dual PCIe 4.0/3.0 M.2 Connectors
  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer by dual PCIe 4.0/3.0 x16 and one PCIe 3.0 x16 slots
  • Fully Quadro® QVL Tested
  • The limitless connectivity by Thunderbolt™ 3
  • High-bandwidth and low-latency network support by dual 2.5GbE Ethernet
  • Intel® Wi-Fi 6 802.11ax makes latency a thing of the past
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
  • Comprehensive connectivity with USB3.2 Gen 2 Type-A and Type-C™ connection
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

B550 Vision D-P motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It’s the perfect fit for DIY creators to build their own ideal machine.

To protect against data corruption

B550 Vision D-P comes with Error Correction Code (ECC) memory corrects errors in your data as it passes in and out of memory to ensure reliability for critical applications.

Make Your Expandability Flexible

B550 Vision D-P supports Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.

NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

CPU AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Chipset AMD B550
Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • AMD Ryzen™ 5000 series processors:
  • Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ Processors:
  • Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  • Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors+Intel® Thunderbolt™ 3 Controller:
  1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
  • Realtek® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2)
Wireless Communication module Intel® Wi-Fi 6 AX200
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x8 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x8 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  1. Supporting PCIe 3.0 x4 mode * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
  1. Support for RAID 0, RAID 1, and RAID 10
USB Integrated in the CPU:
  1. 3 x USB 3.2 Gen 1 ports on the back panel
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+Intel® Thunderbolt™ 3 Controller:
  1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
  1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x SATA DOM power connector
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  16. 1 x USB 3.2 Gen 1 header
  17. 2 x USB 2.0/1.1 headers
  18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  19. 1 x serial port header
  20. 1 x Clear CMOS jumper
  21. 2 x temperature sensor headers
  22. 1 x Q-Flash Plus button
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

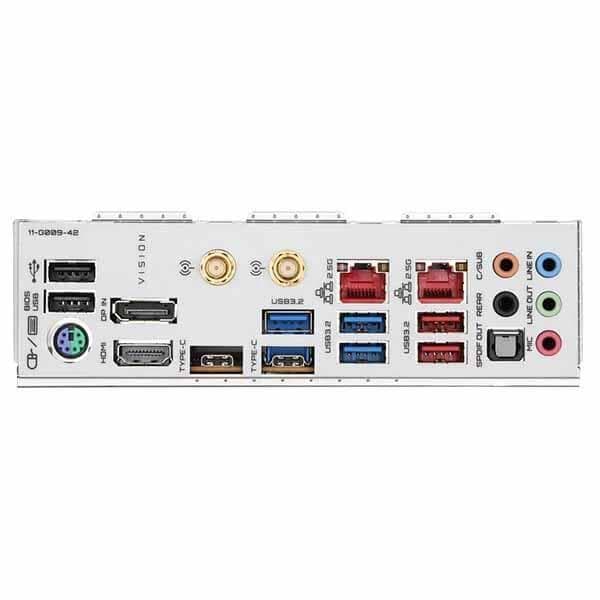

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort In port
  3. 1 x HDMI port
  4. 2 x SMA antenna connectors (2T2R)
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
  7. 3 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 2 x RJ-45 ports
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you inst
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Dimensions 35 × 29 × 8 cm
