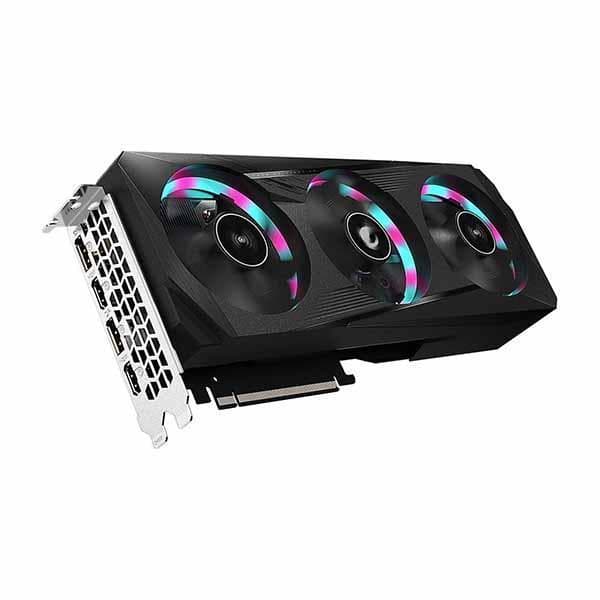

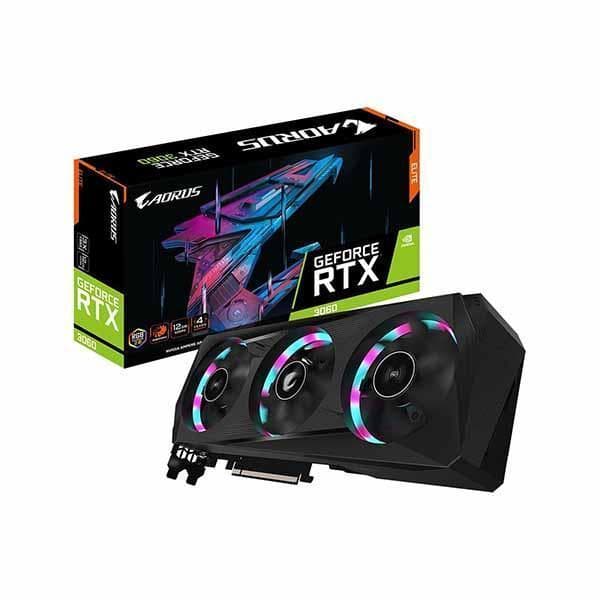

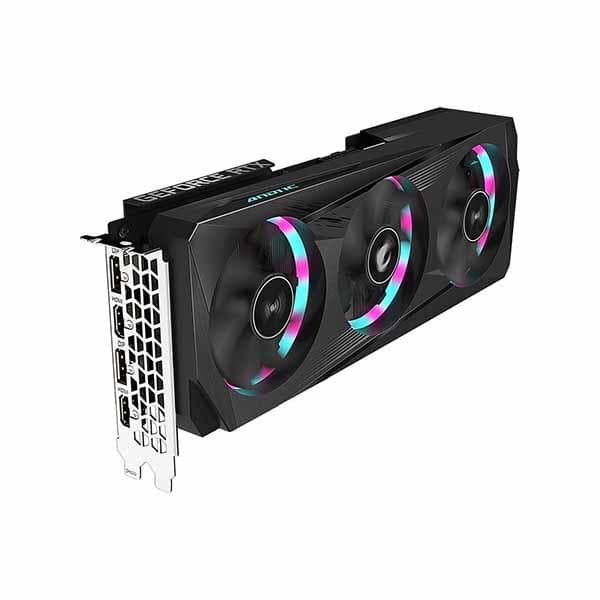

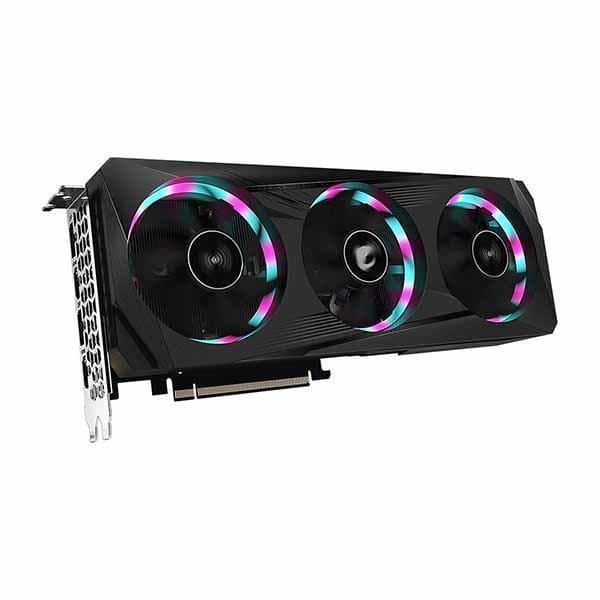

Gigabyte Aorus Geforce Rtx 3060 Elite 12gb Gddr6 Graphics Card
- 12GB 192-Bit GDDR6
- Boost Clock 1867 MHz
- 2 x HDMI 2.1 2 x DisplayPort 1.4a
- 3584 CUDA Cores
- PCI Express 4.0
₹45,500.00
Email when stock available
GIGABYTE AORUS GEFORCE RTX 3060 ELITE 12GB GDDR6
GIGABYTE AORUS GeForce RTX 3060 ELITE 12GB GDDR6 PCI Express 4.0 ATX Video Card GV-N3060AORUS E-12GD (rev. 2.0) (LHR)
FEATURES
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX 3060 ELITE
- Integrated with 12GB GDDR6 192-bit memory interface
- RTX 3060 ELITE WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate
- 4 years warranty (Online registration required)
CORE CLOCK
- 1867 MHz (Reference Card: 1777 MHz)
DESIGN CONCEPT
Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night.
The new era of esports has arrived.
RTX 3060 ELITE WINDFORCE 3X
COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure.
3D ACTIVE FAN
RTX 3060 ELITE 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The LED fan indicator can provide an instant display of fan status.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX 3060 with 12G memory and 360 GB/s memory bandwidth has 3584 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
POWER INDICATORS
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
EXTREME OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
ULTRA DURABILITY
The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
INTUITIVE AORUS ENGINE
Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
| Graphics Processing | GeForce RTX™ 3060 |
| Core Clock | 1867 MHz (Reference Card: 1777 MHz) |
| CUDA® Cores | 3584 |
| Memory Clock | 15000 MHz |
| Memory Size | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192 bit |
| Memory Bandwidth (GB/sec) | 360 GB/s |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=296 W=117 H=56 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 Pin*1, 6 Pin*1 |

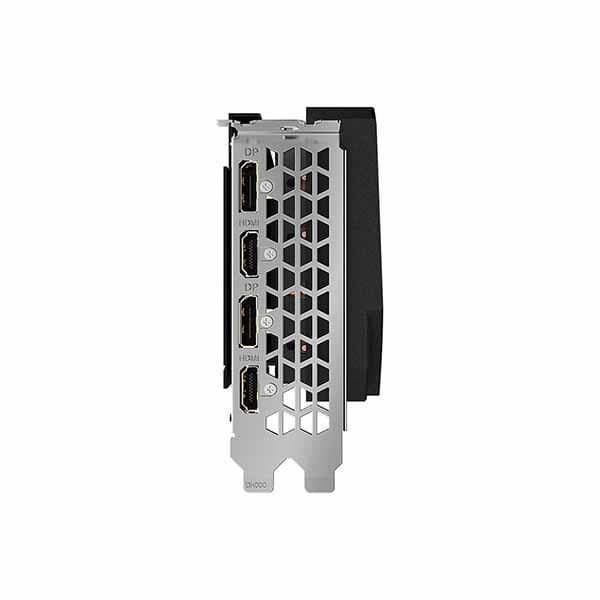

| Output | DisplayPort 1.4a *2 |
| HDMI 2.1 *2 | |
| SLI Support | N/A |
| Accessories | 1. Quick Guide |
| 2. 4-year warranty | |
| 3. Metal sticker |
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 12 × 6 cm |
| Brands | |
| Cooling Type | |
| Memory Bus | |
| Memory Series | |
| GPU Memory Size | |
| GPU Series | |
| TDP | |
| Warranty | |
| EAN / UPC Code |
