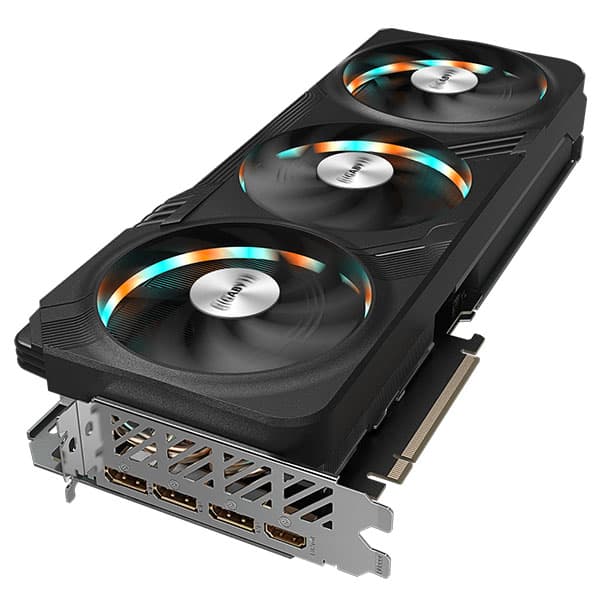

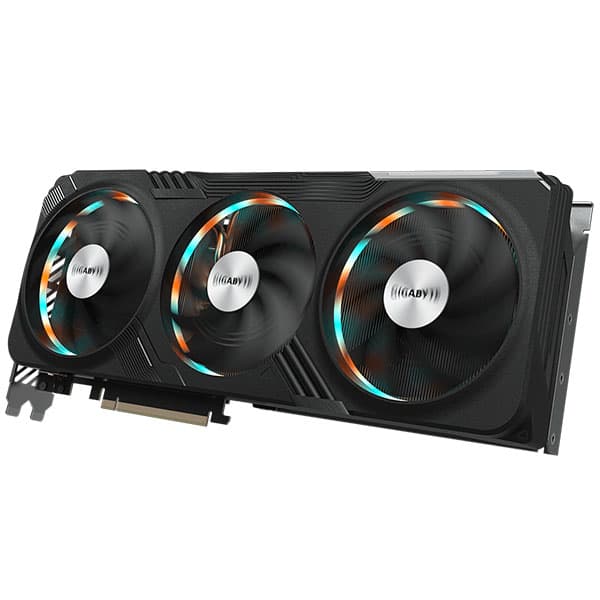

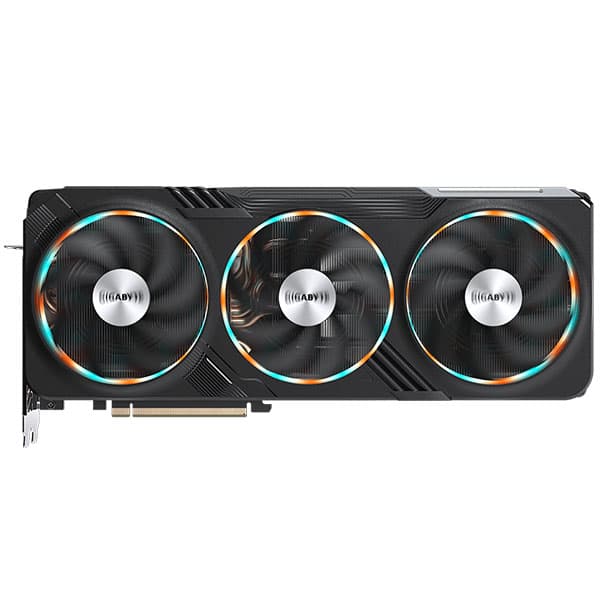

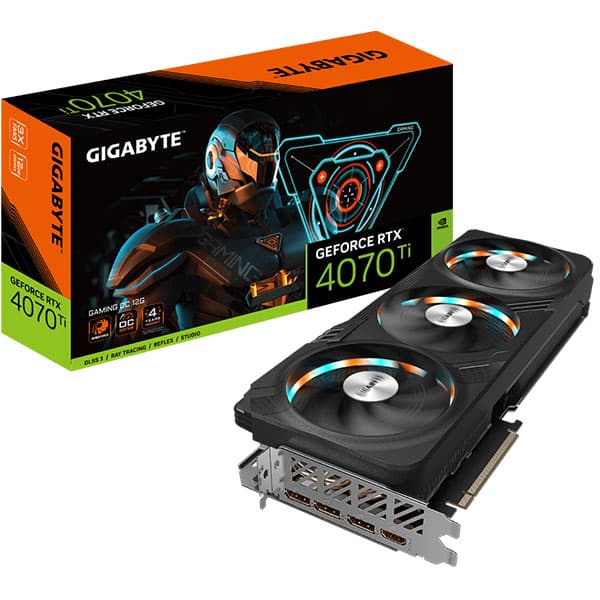

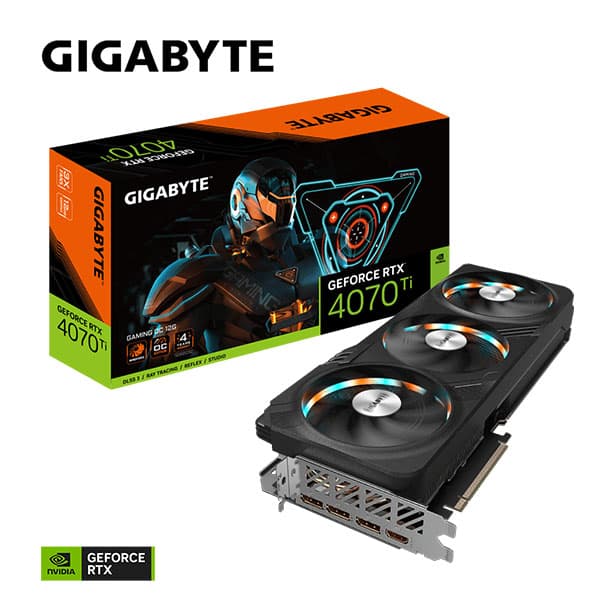

Gigabyte GeForce RTX 4070 Ti GAMING OC 12G Graphic Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce 4070 Ti GAMING OC
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
- 4 Years Warranty (Online registration required)
Original price was: ₹135,000.00.₹69,119.00Current price is: ₹69,119.00.
Gigabyte NVIDIA GeForce RTX 4070 Ti GAMING OC 12GB Ada Lovelace Graphics Card
Feature
WINDFORCE Cooling System
The Gigabyte 4070 Ti GAMING OC WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Vapour Chamber & Heat-Pipe
The vapour chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Screen Cooling
4070 Ti GAMING OC Extended heatsink allows air to pass through, providing better heat dissipation.
Graphene Nano Lubricant
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Dual BIOS
4070 Ti GAMING OC factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
RGB Fusion
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronise with other devices in GIGABYTE CONTROL CENTER.
Protective Metal Backplate
The metal backplate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Anti-Sag Bracket
The new anti-sag bracket is tailored to each graphics card. It provides the optimised reinforcement and better overall visual appearance.
Ultra Durable
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Power Indicators
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| Graphics Processing | GeForce RTX™ 4070 Ti |
| Core Clock | 2640 MHz (Reference card : 2610 MHz) |
| CUDA® Cores | 7680 |
| Memory Clock | 21 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6X |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=336 W=140 H=58 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 16 pin *1 |
| Output | DisplayPort 1.4 *3 |
| HDMI 2.1 *1 | |
| Accessories | 1. Quick guide |
| 2. Warranty registration | |
| 3. Anti-sag bracket | |
| 4. Anti-sag bracket installation guide | |
| 5. One 16-pin to two 8-pin power adaptor |
| Weight | 1 kg |
|---|---|
| Brands | |
| GPU Chipset | |
| GPU Series | |
| Max GPU Boost Clock | |
| Memory Bus | |
| Memory Series | |
| GPU Memory Size | |
| TDP | |
| Warranty | |
| EAN / UPC Code |
