Dual Infinite Mirror
• Real-time Digital Display
• Upgraded Fluid System
• Patented PWM Pump
• Hidden Cable Routing
• Hydraulic PWM Fans
• Built-in Lighting Effects
• Motherboard Sync ARGB

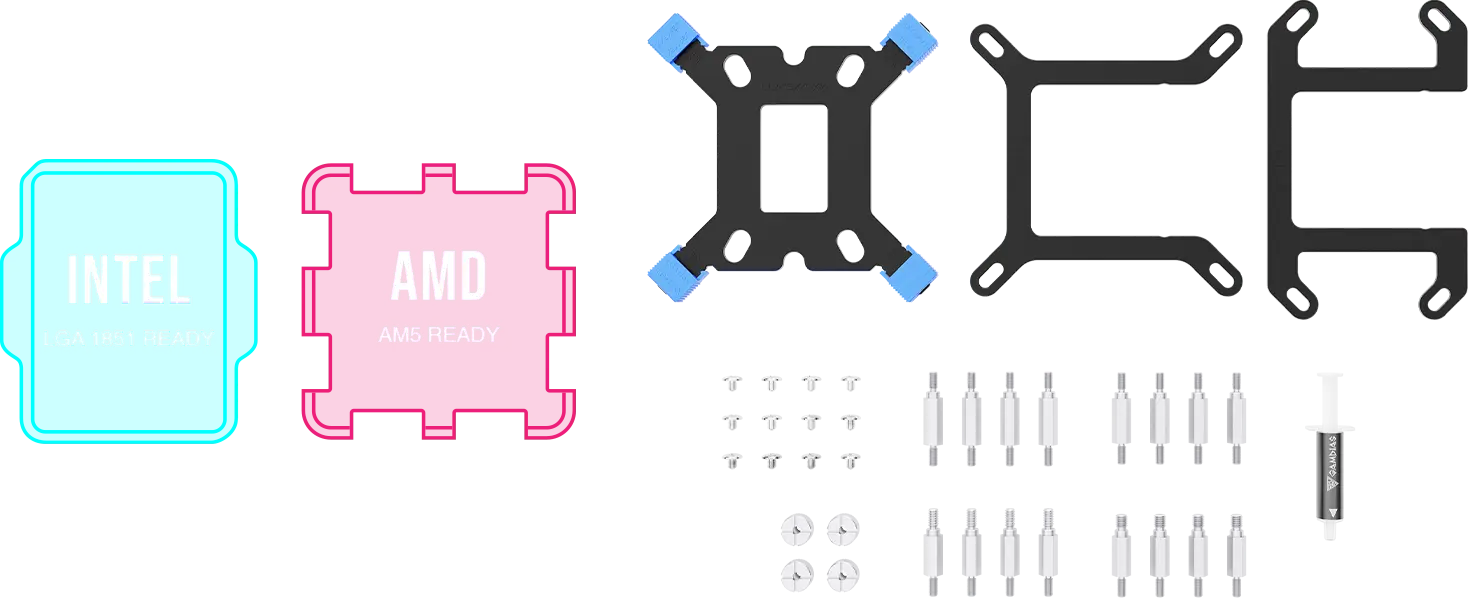

• Universal Mounting Kits Support LGA 1851 / AM5

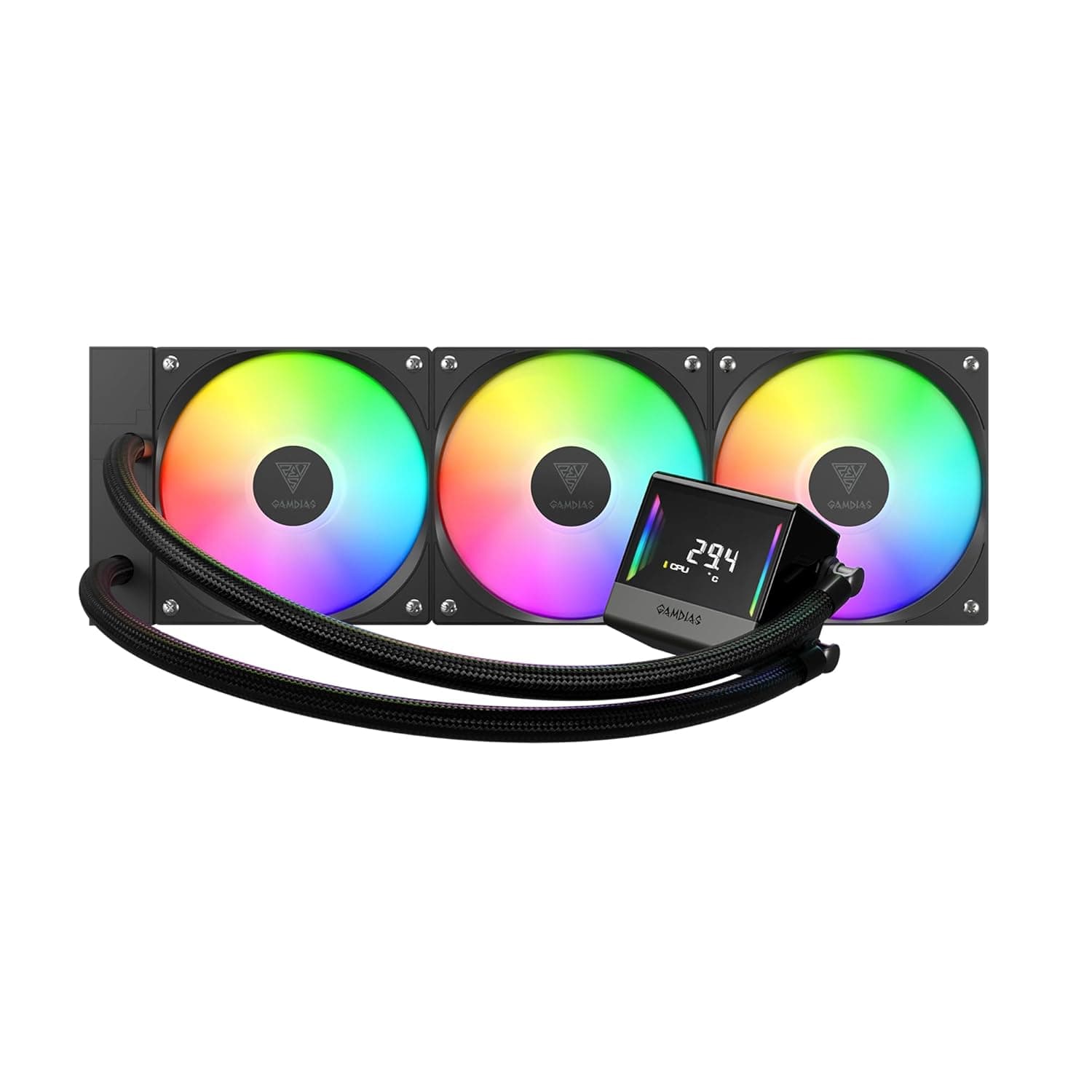

The CHIONE E4-360 Series is available in black and white editions. This cooler provides robust cooling for your CPU, incorporating a patented PWM pump with a speed of 4600 RPM and three 120mm ARGB PWM fans. Additionally, it features a digital display with a dual infinity mirror that showcases real-time CPU temperature or fan speed.

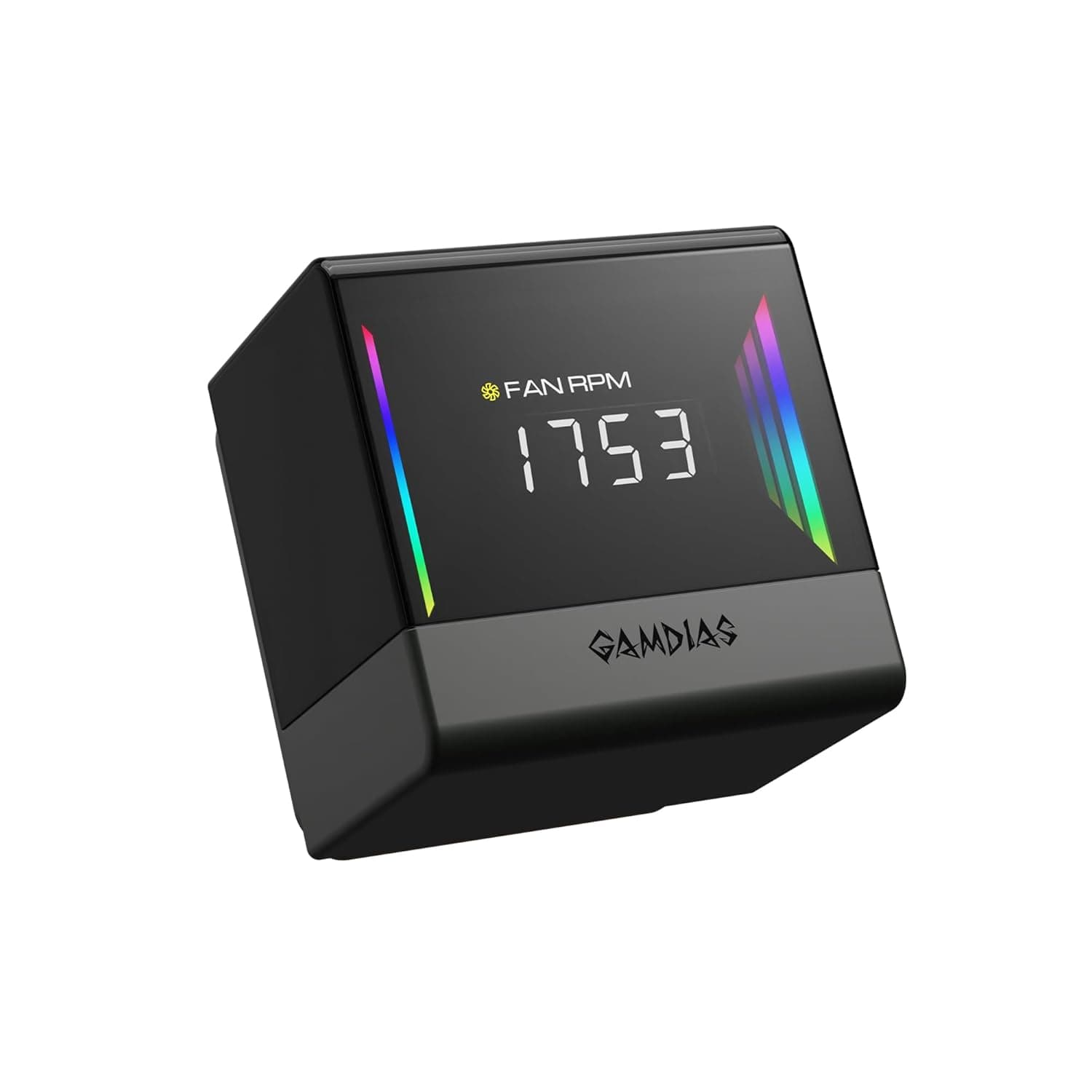

The digital display integrated into the water block conveniently displays real-time CPU temperature and fan speed, allowing for effortless system status monitoring. And around the display are two RGB infinity mirrors to enhance visual appeal.
The CHIONE E4-360 empowers users to monitor real-time system information through the intuitive ZEUS CAST software. This versatile software enables the selection of display modes, including CPU temperature, temperature alarms, and fan speed RPM information.

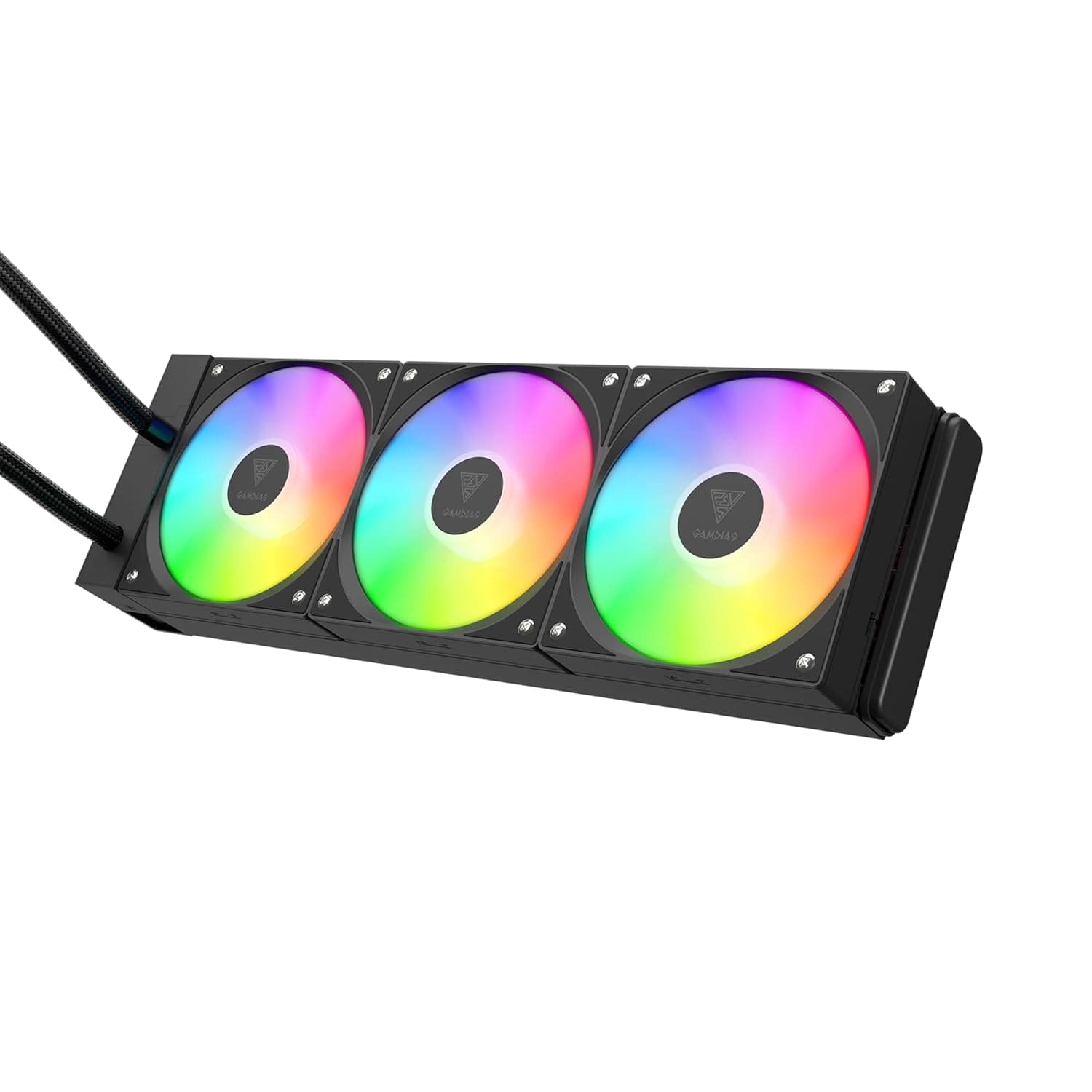

The CHIONE E4-360 features a patented PWM pump operating at 4600 RPM positioned on the side of the radiator, providing elite performance and extending lifespan due to reduced bracket vibration. Additionally, the detachable chamber streamlines the fan installation process.

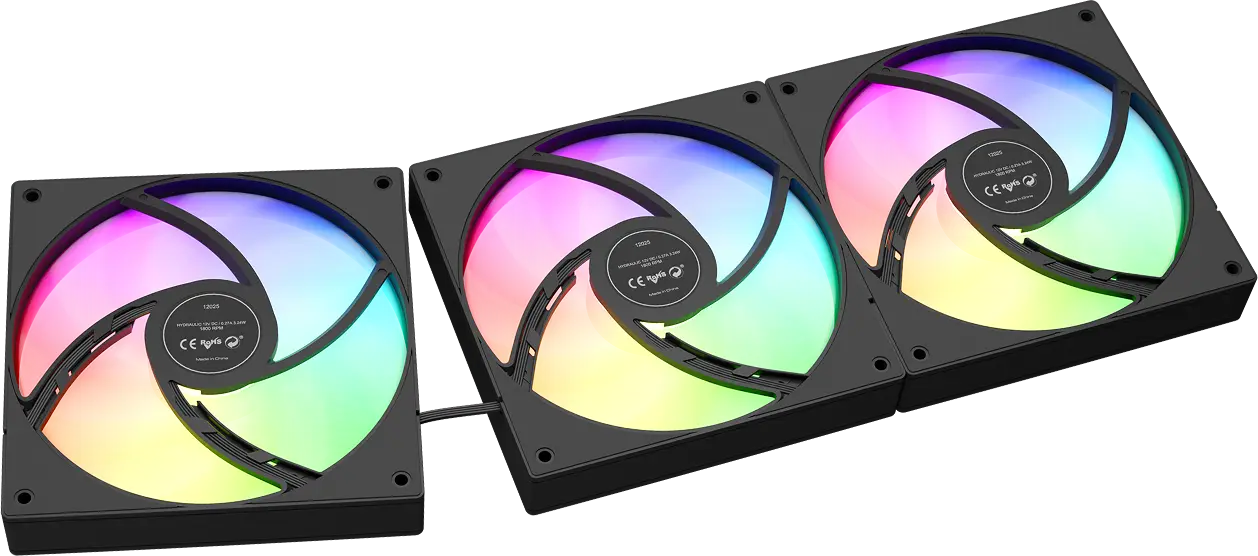

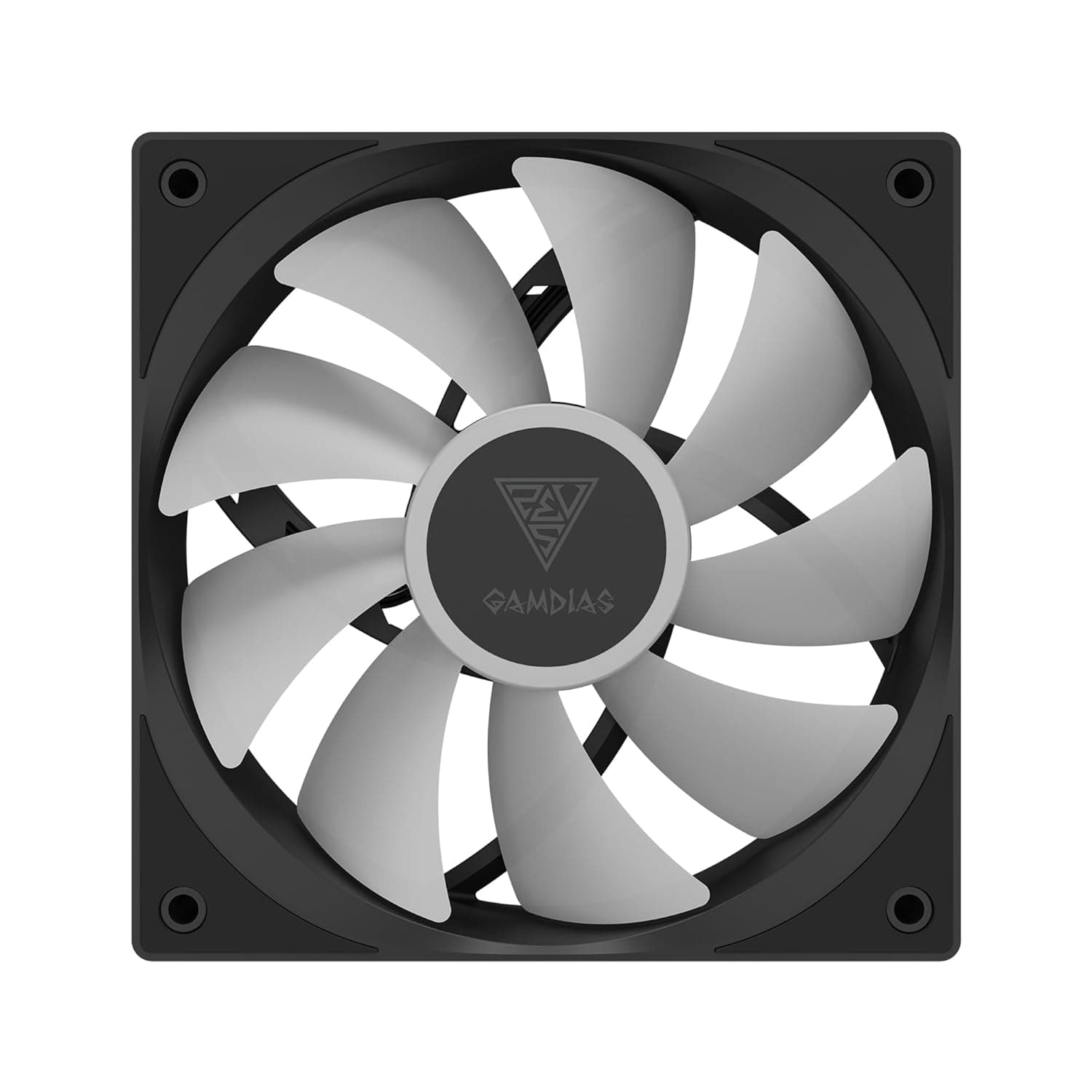

Engineered to enhance airflow efficiency, the PWM fans operate at speeds of up to 1800 RPM, delivering exceptional static air pressure and airflow rates of up to 73.36 CFM. These hydraulic bearing fans incorporate PWM functionality and customizable RGB lighting, ensuring optimal cooling performance and visually captivating aesthetics.

The meticulously designed hidden cable routing mechanism effectively addresses cable management challenges, resulting in a clean and organized system build.

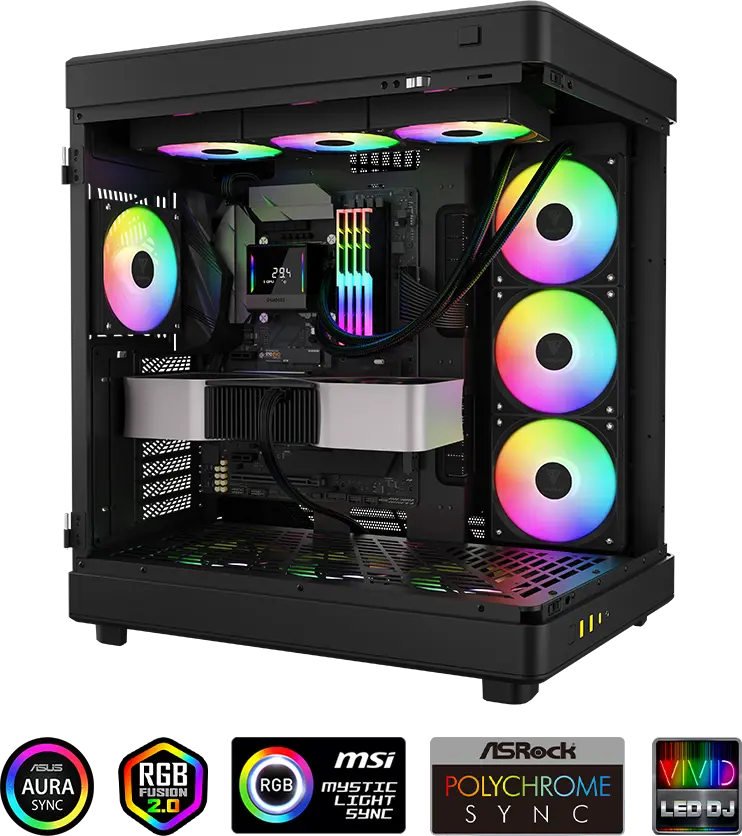

Effortlessly switch between 30 pre-programmed lighting effects using the conveniently provided switch connector or the dedicated case LED button. Furthermore, achieve synchronized and personalized lighting effects by connecting to any motherboard equipped with a 5V 3-Pin addressable RGB header.

Gamdias
Liquid
120mm * 3
800 – 1800 RPM ±10%
ARGB
Gaming
360mm
CHIONE E4-360
1 kg
N/A
| Category | Feature | Details |
|---|---|---|
| Model | Product Name | CHIONE E4-360 |
| Package Contents | Included Items | Cooler ×1, Fan ×3, Thermal Grease ×1, Mounting Kit, GAMDIAS AEOLUS BOX Adapter Cable ×1 |
| Fan | Fan Dimensions | 120 × 120 × 25 mm |
| Fan | Fan Speed | 800 – 1800 RPM ±10% |
| Fan | Noise Level | 11 – 33.8 dBA |
| Fan | Airflow | 73.36 CFM |
| Fan | Air Pressure | 2.12 mmH2O |
| Fan | Bearing Type | Hydraulic Bearing |
| Fan | Rated Voltage | 12V (Fan) / 5V (LED) |
| Fan | Connector | PWM & 5V Sync |
| Fan | PWM Control Support | Yes |
| Liquid Cooler | Radiator Dimensions | 396 × 120 × 27 mm |
| Liquid Cooler | Tube Material | EPDM |

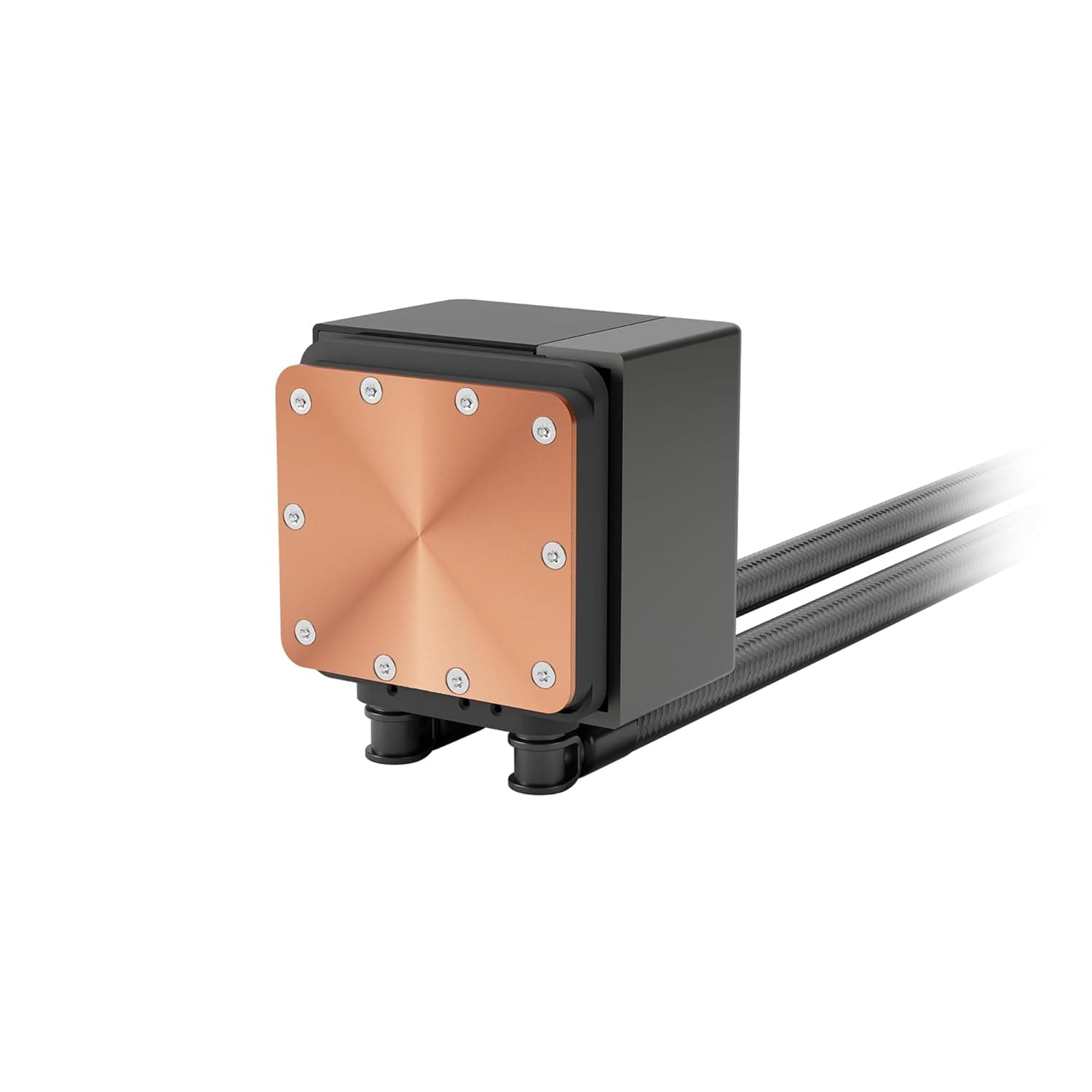

| Liquid Cooler | Base Plate Material | Copper |
| Liquid Cooler | Radiator Material | Aluminum |
| Liquid Cooler | Sleeved Tube | Yes |
| Pump | Pump Rated Voltage | 12V |
| Pump | Pump Speed | 4600 RPM ±10% |
| Pump | Pump Connector | 4-Pin |
| Compatibility | CPU Socket Support | LGA2066 / 2011-v3 / 2011 / 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 |
| RGB Support | Motherboard RGB Sync | 5V 3-Pin Addressable (Digital) RGB Header Only |
