Real Walnut Mesh Front Panel
• 3 Built-in 120mm NOTUS M1 Fans
• Front-Mounted ATX PSU Design
• Supports Dual 360mm Radiators
• Supports Connector-hidden Motherboards
• Fits Mini-ITX, and Micro-ATX motherboards
• Compatible with 395mm GPU
• Gen 2x2 Type-C Port Ready

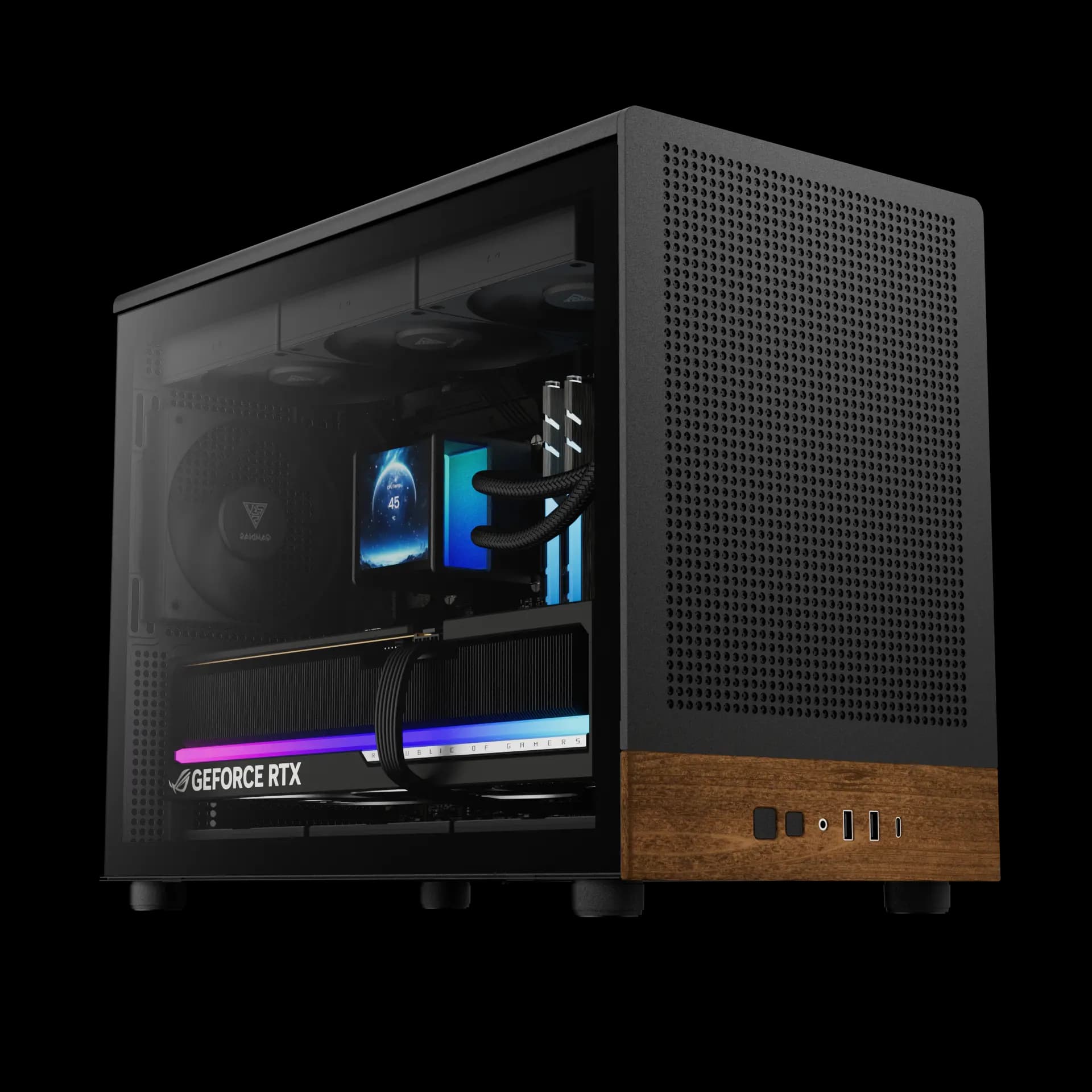

The ATHENA M4M WOOD is a compact micro-tower case that combines high performance with natural aesthetics. It features a fully perforated mesh front panel and a distinctive real wood I/O panel that adds a modern touch. The case comes with three 120mm NOTUS M1 fans to ensure optimized airflow while maintaining a clean look. With support for dual 360mm radiators, BTF motherboards, and GPUs up to 395mm, this case offers excellent thermal performance and broad hardware compatibility in a space-efficient design.
The ATHENA M4M WOOD allows robust airflow intake and exhaust configurations with a mesh front panel and perforated vents built throughout the case.

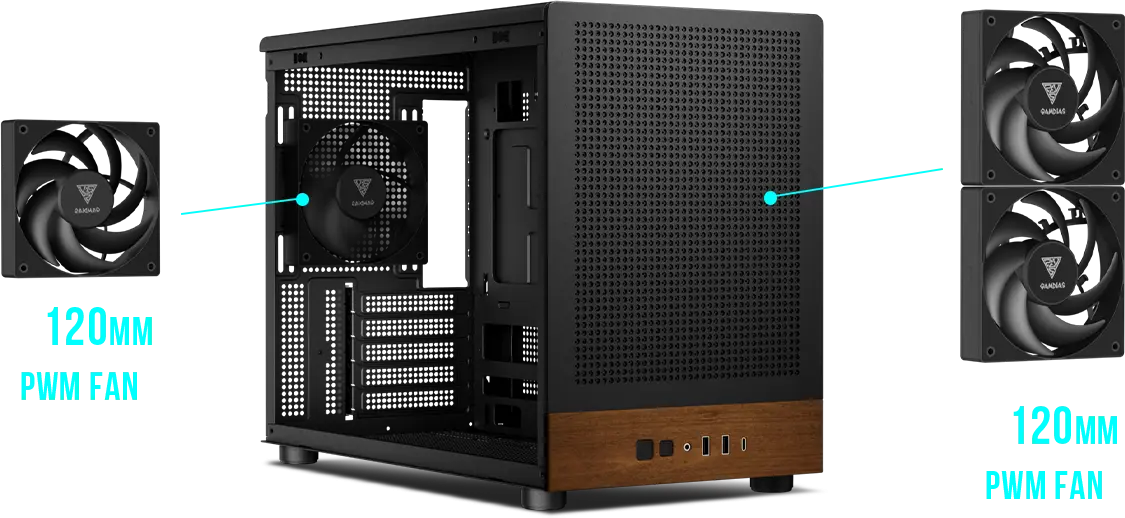

The case comes with three 120mm NOTUS M1 fans, including two front intake fans and one rear exhaust fan, providing optimized airflow, efficient heat dissipation, and near-silent operation.

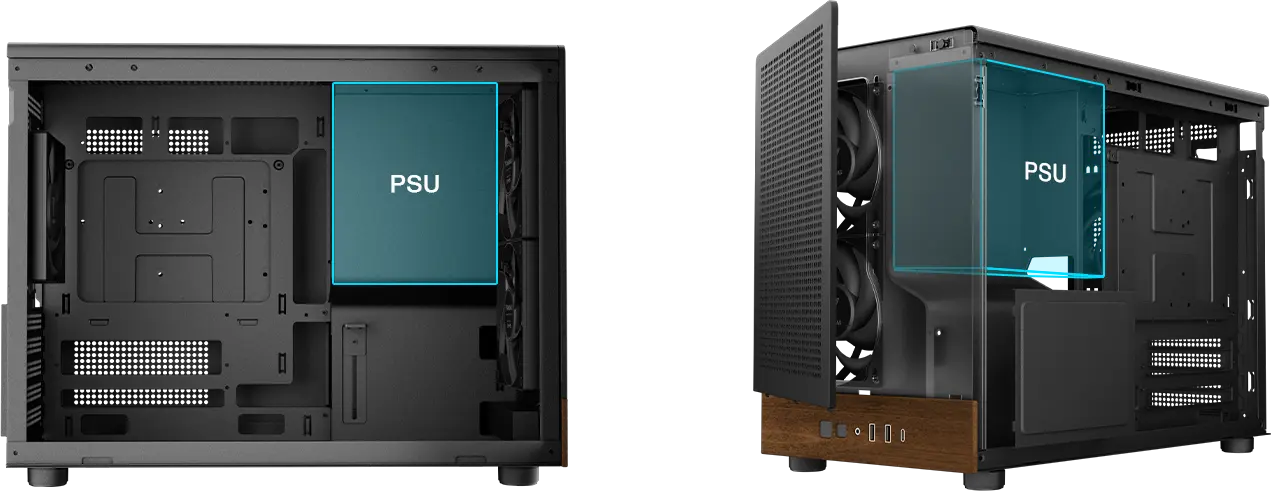

The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.

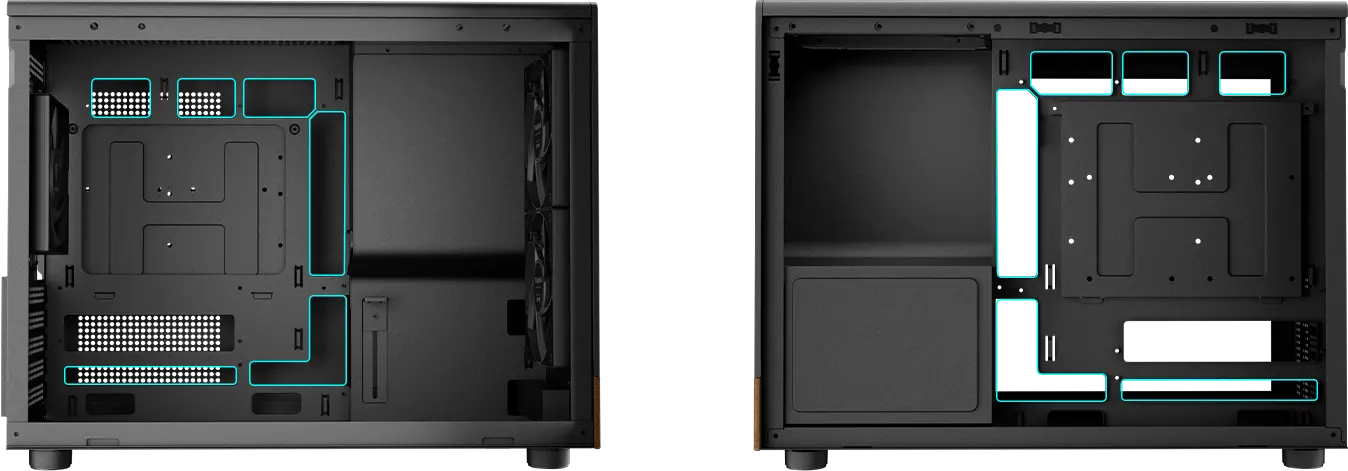

This case supports connector-hidden motherboard (BTF motherboard), enabling cables to plug in from the back for a cleaner front appearance and enhanced PC setups.

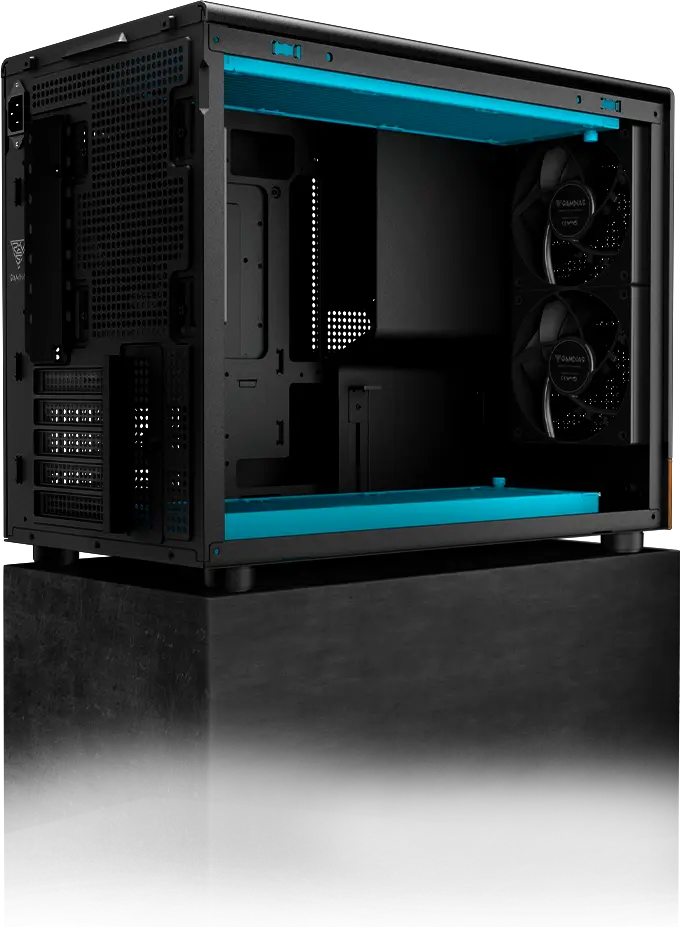

The ATHENA M4M WOOD provides superior cooling performance as it can support 360mm radiators on the top and the bottom simultaneously.
The I/O features one USB 3.2 Gen 2x2 Type-C port for high transfer speeds up to 20 Gbps, two USB 3.0 port, a reset button, and additional audio connectivity.

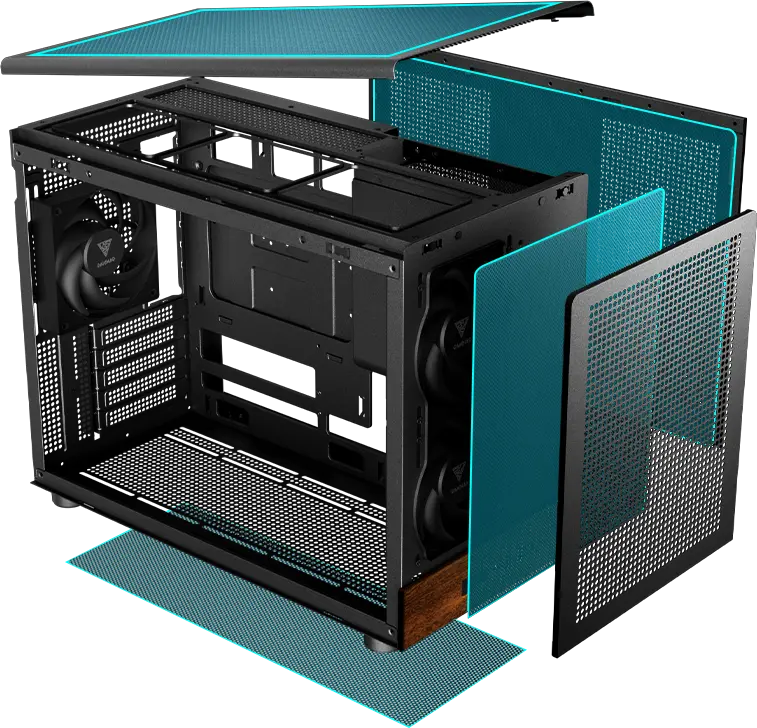

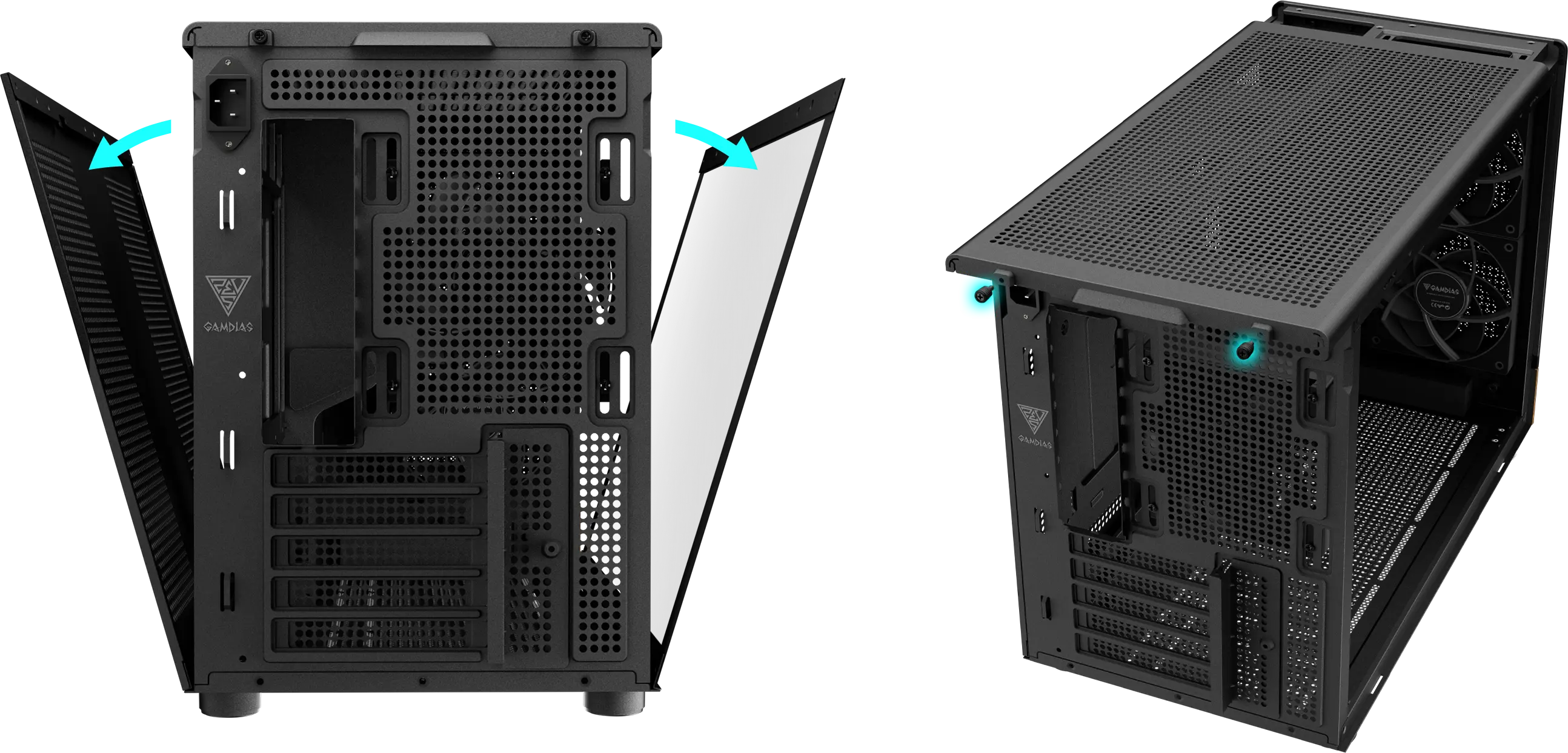

The case features a modular design that allows nearly every panel to be easily detached for better accessibility. The side panels are secured with a simple clasp mechanism, while the top panel is secured with thumb screws.
The ATHENA M4M WOOD can accommodate up to 9 fans and offers flexible options for the installation of radiators at the front, top, bottom and rear.

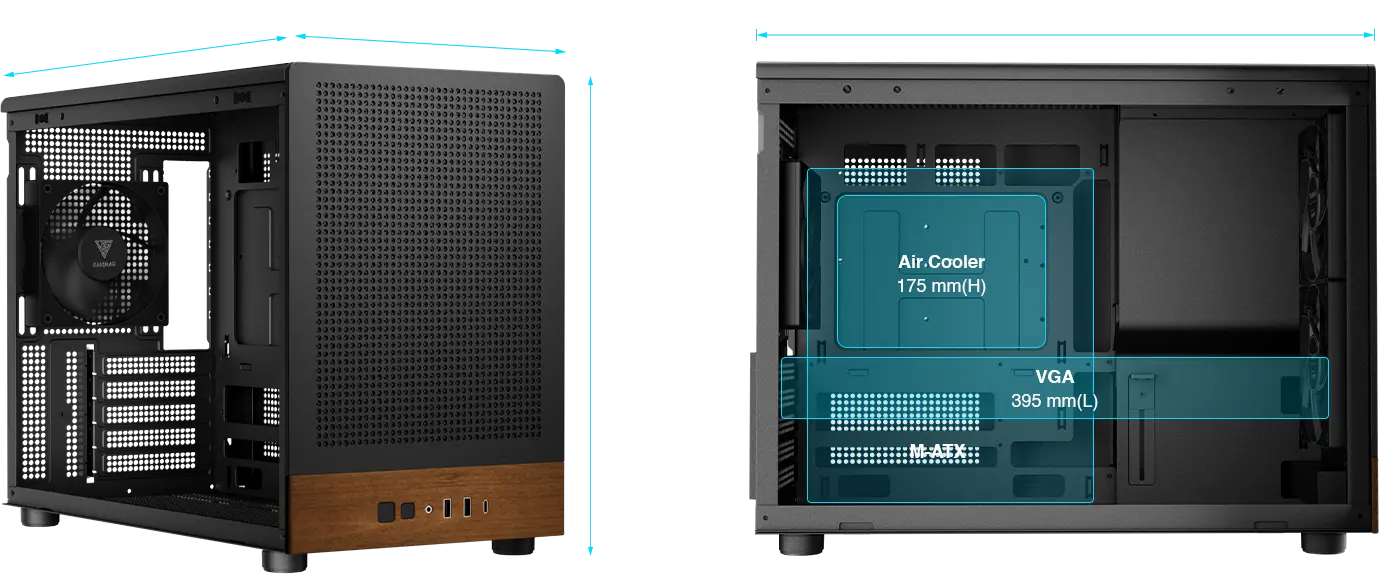

Designed with a compact form factor, the case offers the option to house up to m-ATX motherboards and VGA cards up to 395mm.
The interior configuration has ample room for cable management optimization and supports PSU lengths up to 150mm.
Equipped with dust filters on the top and side, the case effectively protects against dust while maintaining ventilation.
Gamdias
Micro Tower
no
mATX
Black Wood
ATHENA M4M WOOD
1 kg
N/A
| Category | Feature | Details |
|---|---|---|
| General | Model | ATHENA M4M WOOD |
| Case | Case Type | Micro Tower |
| Case | Motherboard Support | Mini-ITX, Micro-ATX |
| Case | Synchronization | 5V 3-Pin Addressable Header |
| Case | Case Color | Black |
| Case | Expansion Slots | 5 |
| Case | Material | SPCC & ABS & Tempered Glass & Wood |
| Case | Window | Left |
| Case | Radiator Support | Top: 360 mm / Front: 240 mm / Bottom: 360 mm |
| Case | Fan Support | Top: 3 × 120 mm / Bottom: 3 × 120 mm / Front: 2 × 120 mm / Rear: 1 × 120 mm |
| Case | Pre-installed Fans | Front: 2 × 120 mm BK PWM Fans / Rear: 1 × 120 mm BK PWM Fan |

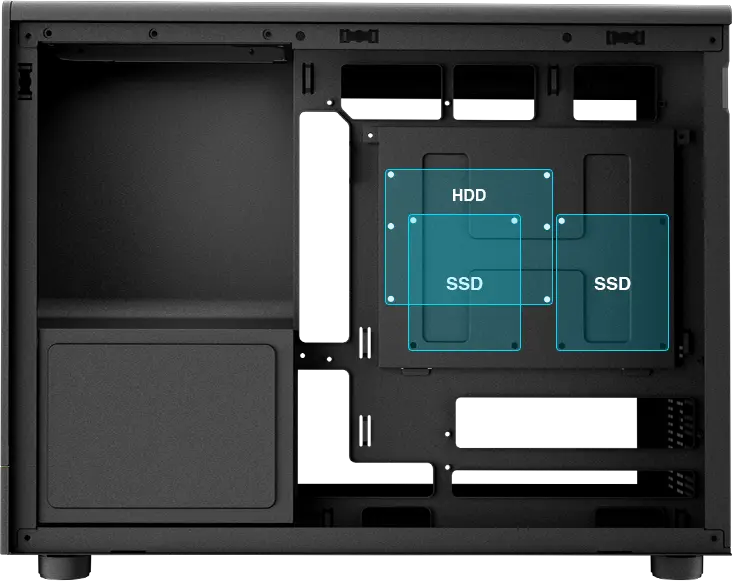

| Case | Drive Bays | 1 × 3.5" + 1 × 2.5" or 2 × 2.5" |
| Case | I/O Ports | USB 3.0 ×2, Type-C ×1, HD Audio ×1, Reset ×1 |
| Clearance | CPU Cooler Height | Up to 175 mm |
| Clearance | GPU Length | Up to 395 mm |
| Clearance | PSU Length | Up to 150 mm |
| Dimensions | Size (L × W × H) | 446 × 235 × 347 mm |
| Note | PSU Compatibility | Some PSUs may have compatibility issues depending on AC inlet orientation; recommended to use GAMDIAS PSU |
| Downloads | User Manual | Point 1, Point 2 |
