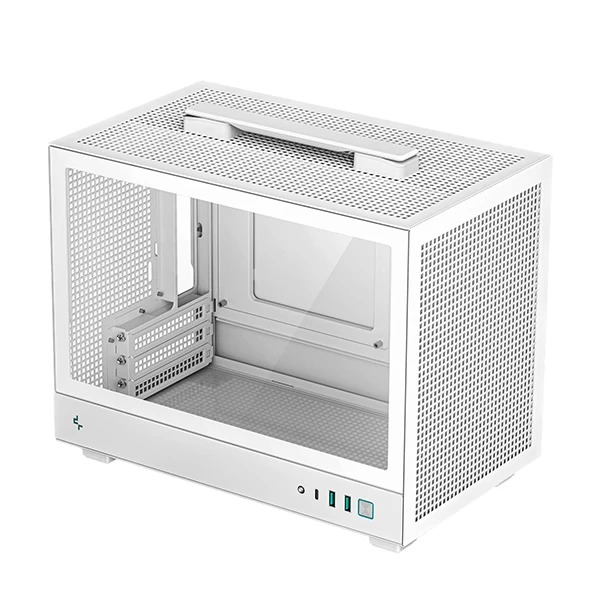

DeepCool CH160 (Mini-ITX) Mini Tower Cabinet (White)
Brand: DeepCool
- PREMIUM AIRFLOW: Mesh panels surround the CH160 from numerous sides and create a high-airflow environment; the ability to install up to 172mm tall air coolers also adds to it.
- NO ADDED GPU LATENCY: 3-slot GPUs up to 305mm can be inserted directly into the motherboard without the aid of a rise cable.
- FLEXIBLE POWER OPTIONS: Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm.
- ULTIMATE PORTABILITY: The small size of the CH160, paired with the sturdy carry handle, makes carrying your system painless.
- FLEXIBLE DRIVE OPTIONS: The fan brackets are removable, and the front fan bracket can be utilized to support both an SSD and an HDD drive.
- QUALITY OF LIFE IMPROVEMENTS: With 3 dust filters, 2 USB 3.0, a Type-C, and a hybrid audio port, the CH160 puts everything within arm’s reach.
... people are viewing this right now
Original price was: ₹5,999.00.₹4,194.00Current price is: ₹4,194.00.
Out of stock
Email when stock available
DeepCool CH160 WH Mini-ITX PC Case, High Airflow Mesh Panels, Full-Sized Air Cooler Support, Direct Insert GPU Capable, Flexible Drive and PSU Compatibility, White
Feature
- PREMIUM AIRFLOW: Mesh panels surround the CH160 from numerous sides and create a high-airflow environment; the ability to install up to 172mm tall air coolers also adds to it.
- NO ADDED GPU LATENCY: 3-slot GPUs up to 305mm can be inserted directly into the motherboard without the aid of a rise cable.
- FLEXIBLE POWER OPTIONS: Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm.
- ULTIMATE PORTABILITY: The small size of the CH160, paired with the sturdy carry handle, makes carrying your system painless.
- FLEXIBLE DRIVE OPTIONS: The fan brackets are removable, and the front fan bracket can be utilized to support both an SSD and an HDD drive.
- QUALITY OF LIFE IMPROVEMENTS: With 3 dust filters, 2 USB 3.0, a Type-C, and a hybrid audio port, the CH160 puts everything within arm’s reach.
The DeepCool CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
| Model | CH160 |
| P/N | R-CH160-WHNGI0-G-1 |
| Color | White |
| Product Dimensions | 336×200×283.5mm(L×W×H) |
| Net Weight | 3.3Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 Type-C×1 |
| 3.5" Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| 2.5" Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support |
|
| Radiator Support | None |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
| Warranty | 1 Year |
| Note | *** Image use for reference only *** Features, Price, Specifications are subject to change without notice. |
