DeepCool CG580 Panaromic ATX PC Cabinet – Black
10 sold in last 13 hours
Hurry! Over 6 people have this in their carts
Brand: DeepCool
Estimated Delivery: Thu, Apr 02 – Mon, Apr 06
... people are viewing this right now
Original price was: ₹14,999.00.₹4,699.00Current price is: ₹4,699.00.
DeepCool CG580 Panaromic ATX PC Cabinet – Black

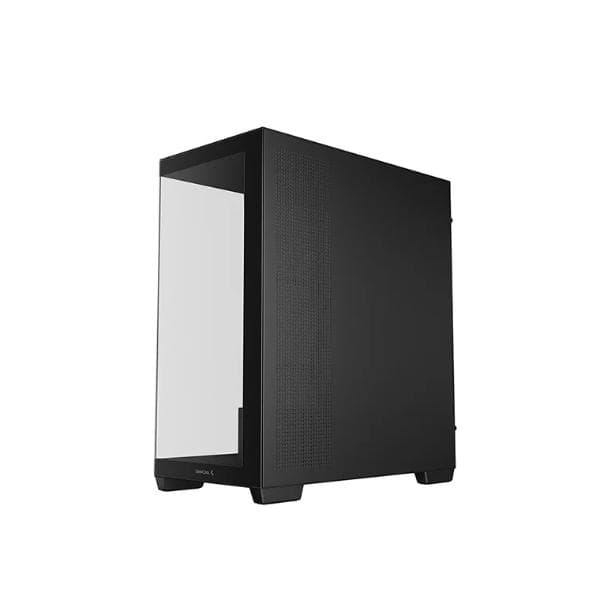

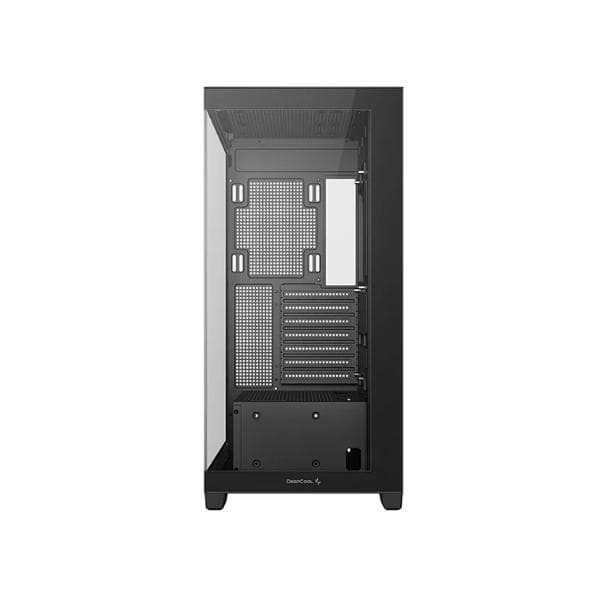

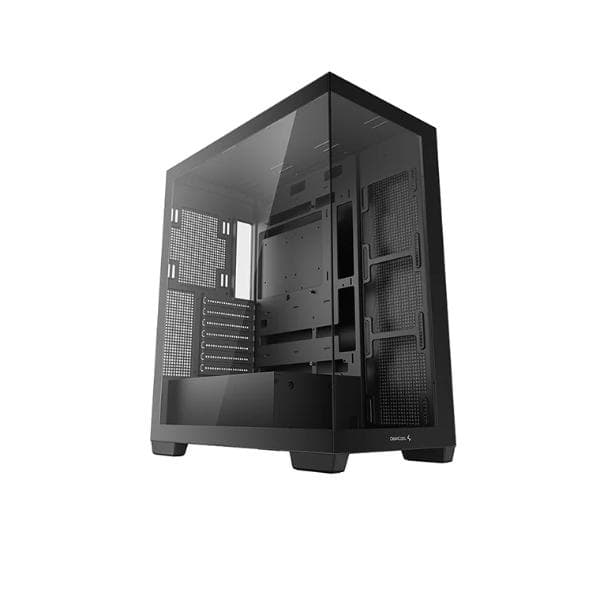

The CG580 is a picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.
KEEPING IT CLEAN
The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.
THE SUPPORT YOU NEED
Designed to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5″” HDD drive.
RADIATORS:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
FANS:
Top: 3x120mm/2x140mm
Side: 3x120mm
Rear: 1x120mm/1x140mm
Bottom: 1x120mm
PSU Shroud: 2x120mm
QUALITY OF LIFE FEATURES

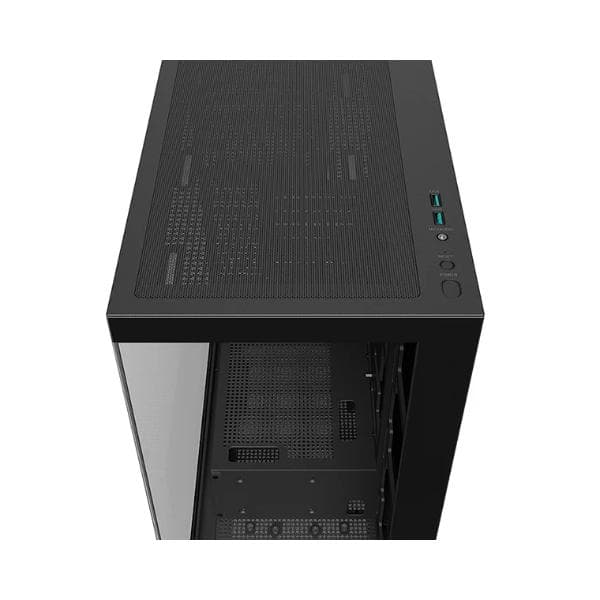

With two USB 3.0 ports and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. The magnetic top filter keeps dust out of your system and makes cleaning a little easier.
| Product Dimensions | 437×235×501mm(L×W×H) |
| Net Weight | 7.9Kg |
| Materials | ABS+SGCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2、Audio×1、Power、Reset |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: NA Top: 3×120mm/2x140mm Side: 3x120mm Rear: 1×120mm/1x140mm Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two） PSU Shrouded: 2×120mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360mm Side: 120/240/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 176mm |
| GPU Length Limit | 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side) |
| Power Supply Type | ATX PS2（maximum length: 210mm） |
Add a review
Currently, we are not accepting new reviews
Q & A
Ask a question
DeepCool CG580 Panaromic ATX PC Cabinet - Black
Your question
* Question is required
Name
* Name is required
Email
* Email is required

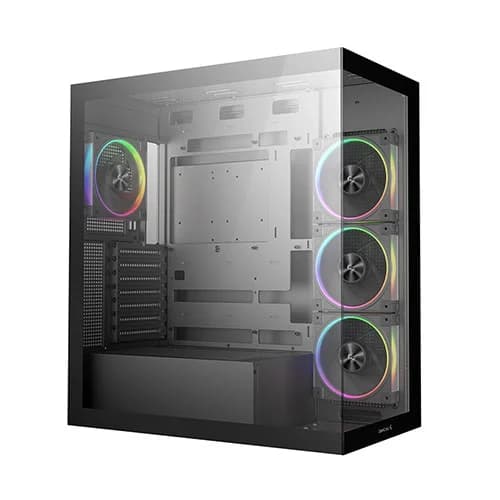

When will be the 4f version preincluded be available on the site
