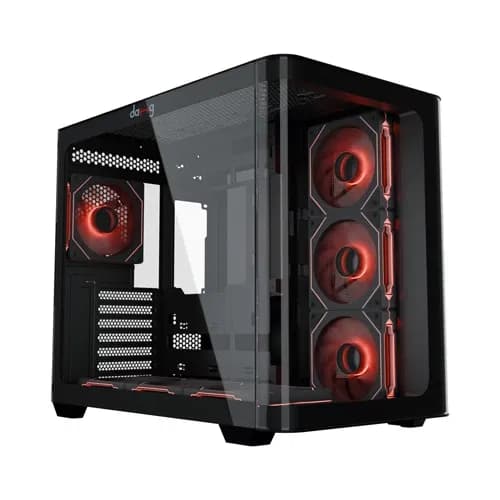

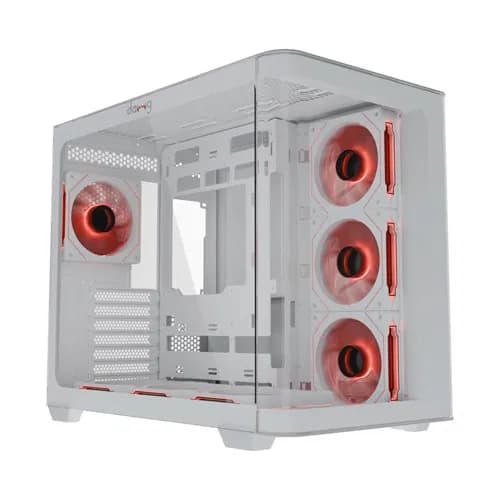

Y 820 Mid Tower Chassis supports ATX/mATX, features USB 3.0, dual USB ports, ARGB Sync, enhanced airflow, silent design, dual-side seamless curved glass panel, separate chamber PSU design, 160mm CPU cooler clearance, 445mm GPU length, pre-installed ARGB fans with infinity mirror glow, rear 120mm fan, bottom and side 120mm x 3 reverse blade fans, and optional top cooling fans. AIO supports up to 360mm (top and bottom) and 280mm (side).
Specifications
- Model: X 820
- Form Factor: Mid Tower
- Motherboard: ATX | mATX
- I/O Ports: USB 3.0 | USB x 2 | Headphone | Mic
- Drive:
– Config 1: HDD x 2 + SSD x 2
– Config 2: HDD x 1 + SSD x 3 HDD x 1 + SSD x 3
- Fan Type: ARGB, Hexa Pattern, Center & Side Infinity Mirror Glow
- Cooling Fans:
– Rear: 120mm x 1
– Top: 120mm x 3 (Optional) | 140mm x 2 (Optional)
– Bottom: 120mm x 3 (Reverse Blade)
– Side: 120mm x 3 (Reverse Blade) | 140mm x 2 (Optional)
- AIO:
– Top: Up to 360mm
– Bottom: Up to 360mm
– Side: Upto 280 mm
- CPU Cooler Height: 160 mm
- GPU Length: 445mm
- Panel Type: 2 Side Seamless Curved Glass
- PSU: Separate Chamber, 240 mm
- Dust Filter: Top Magnetic, Bottom Magnetic
- PCIe Expansion: 7
- Dimension (WxDxH): 28.5 x 46 x 40 cm
- Weight: 7.9 kg
