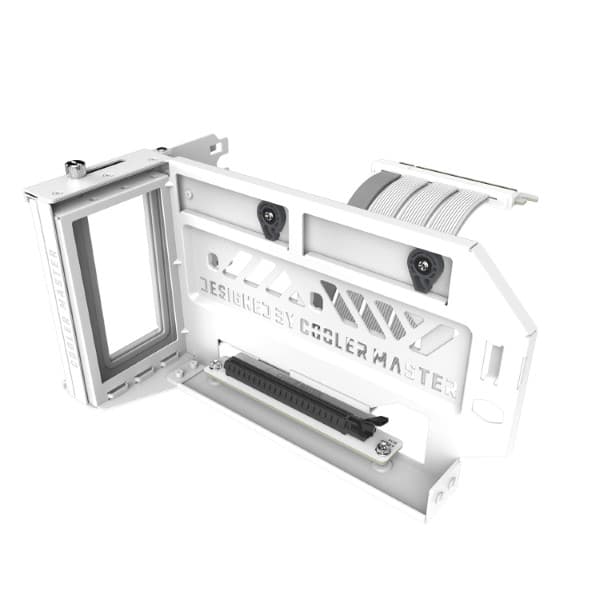

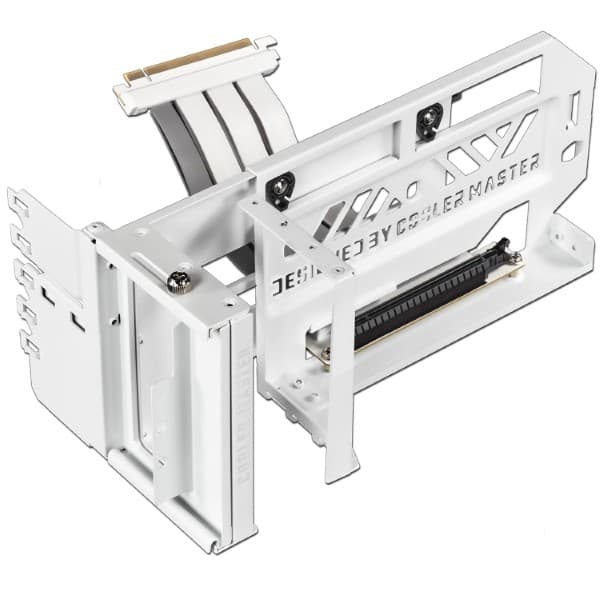

This remastered design supports cases ranging in size from m-ATX to ATX and features a removable adjustable GPU bracket. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.
Bring the best out of your components by showing off your GPU.
Designed for both ATX and mATX cases, this accessory is compatible with the lastest GPUs available on the market.
When installing the Vertical GPU Holder Kit V3 in a m-ATX case users may need to remove the rear case fan for additional clearance. It is also necessary to use low profiles CPU air-coolers, all-in-one liquid coolers, or custom water cooling loops to guarantee optimal clearances between components.
The newly revised Vertical Graphics Card Holder Kit fits all standard ATX chassis, now providing even more options for adjusting graphics card position.
Compatibility with m-ATX cases is guaranteed thanks to the brand new design that simply requires 4 PCi slots for installation. GPU connection to external monitors is facilitated due to the modular design, now 100% adjustable according to preference and needs.
Granted compatibility with all standard ATX and m-ATX chassis.
Toollessly adjustable up to 65mm horizontally...
...as well as up to 30mm towards the side panel.
Premium SGCC steel provides reliable support, eliminating possibilities of sagging or deformation. Supports up to 3.5kg*. *Reference weight GeForce RTX 4090 Founder's Edition: 2.2kg ROG STRIX GeForce RTX 4090 O24G: 2.5kg
The fully ventilated design is specially designed to allow unrestricted airflow for "flow-through" GPU coolers.
The modular design allows GPUs to placed in the system after the holder has been fixed in a preferred layout.
Cooler Master
4719512134184
Normal
2 Year
White
MCA-U000R-WFVK03
1 kg
N/A
| Specification | |
|---|---|
| Model Number | MCA-U000R-WFVK03 |
| Available Color(S) | White / Gray |
| Dimensions (L X W X H) | GFX Holder kit: 249 x 148.1 x 141.8 mm (close size),
GFX Holder kit: 305 x 178.1 x 141.8 mm (open size), Riser cable: 165mm (6.49in) |
| Supported Chassis Type | E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.) |
| Supported Graphics Cards | Any length, up to 3 slots wide |
| Riser Cable Model | Riser Cable PCIe 4.0 x16 |
| Compatibility | PCIE 4.0 and older |
| Certifications | BKC210933AC |
| PCB / WIRE UL NUMBERS | E1895721 / E252840 |
| Electronic Component Materials | PCBA, Silver Plated Copper Wire 30 AWG |
| Insulation Materials | PE, TPE |
| Other Materials | ABS, PP, SGCC STEEL, NICKEL, GOLD, BRASS |
| CONNECTORS | PCI-E X16 Male TO PCI X16 90° Female |
| WORKING VOLTAGE / CURRENT | DC 12V / 5A |
| OPERATING TEMPERATURE | -20° TO +100° Celsius |
| REQUIRED PCI SLOTS | Minimum 4 PCI slots required for mounting |
| Weight | 0.81 kg |
| Series | Others |
| Warranty | 2 Year |
| Note* | Price, feature and specifications are subject to change without notice. |
