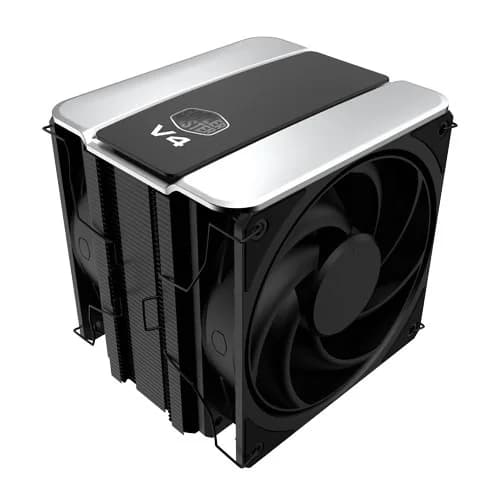

Cooler Master V4 Alpha 3DHP 120mm CPU Air Cooler
Original price was: ₹8,900.00.₹3,349.00Current price is: ₹3,349.00.
Cooler Master V4 Alpha 3DHP 120mm CPU Air Cooler
The Cooler Master V4 CPU air cooler delivers exceptional cooling performance and sleek aesthetics. Engineered to maintain optimal processor temperatures under heavy workloads, it features Cooler Master’s proprietary 3DHP technology for rapid heat dissipation and peak system efficiency. The V4 Alpha 3DHP Black has been crafted in the shape of a classic V automotive engine but delivers performance comparable to that of one of the most efficient electric cars available. The V4 CPU air cooler stands out with its innovative design and excellent performance. Built for enthusiasts and perfected for professionals, the V4 isn’t just a cooler, it’s the heartbeat of your high-performance machine. Build to Endure, Styled to Inspire.
3DHP TECHNOLOGY
Advanced thermal management solution that efficiently dissipates heat and results in outstanding performance.
EXCELLENT THERMAL DISSIPATION
Delivers lower temperatures under the same CPU workload, ensuring stable system operation and enhanced reliability
RING BLADE FAN DESIGN
The rear exhaust fan blades adopt a ring-shaped blade design, ensuring stable noise levels while effectively preventing high-frequency noise when paired with the module.
MINIMALIST DESIGN
Showcases a sleek and refined appearance, seamlessly blending with most existing systems for a harmonious look.
| Specification | Details |
|---|---|
| Product Name | V4 Alpha 3DHP Black |
| Product Number | MAZ-T2HP-217PK-R1 |
| Exterior Color | Black |
| CPU Socket (Intel®) | LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 |
| CPU Socket (AMD®) | AM5 / AM4 |
| Dimensions (L x W x H) | 133 x 114 x 161 mm | 5.2 x 4.5 x 6.3 inch |
| Heat Sink Material | 2 x 3DHP / Aluminum Fins |
| Fan Item Все | Front / Rear |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm |
| Fan LED Profile | Non-LED |
| Fan Quantity | Front: 1, Rear: 1 |
| Fan Speed | Front: 0–2050 RPM ± 10% Rear: 0–1850 RPM ± 10% |
| Fan Air Airflow | Front: 107.2 m³/h (63.1 CFM) Rear: 85.8 m³/h (50.5 CFM) |
| Fan Pressure | Front: 2.69 mmH₂O Rear: 1.77 mmH₂O |
| Fan MTTF | >200,000 Hours |
| Fan Noise Level | Front: 22.6 dBA Rear: 20 dBA |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | Front: 0.12 A Rear: 0.08 A |
| Fan Safety Current | 0.35 A |
| Fan Power Consumption | Front: 1.44 W Rear: 0.96 W |
| Warranty | 5 years |
| Weight | 1 kg |
|---|---|
| Brands | |
| Fan Size |
