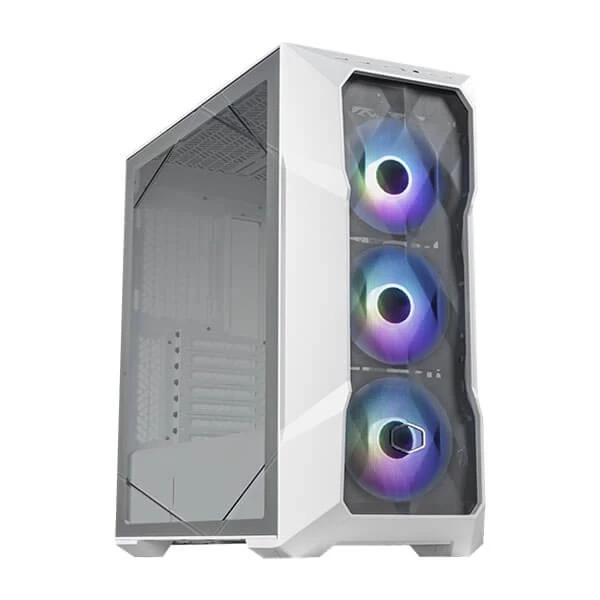

Cooler Master MasterBox TD500 Mesh V2 ARGB (E-ATX) Mid Tower Cabinet (White)
- Polygonal FineMesh Front Panel
- Three CF120 ARGB Fans Included
- USB 3.2 Gen 2 Type C Support
- Tool-Free Crystalline TG Side Panel
- PSU Shroud With Removable Cover
- ARGB Controller Included
- Removable Top Panel
- Removable HDD cage
Original price was: ₹12,899.00.₹8,249.00Current price is: ₹8,249.00.
FineMesh Performance Front Panel
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Available in both Black & White colorations
Cooler Master MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!
Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
ARGB/FAN HUB Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
Removable Top Panel
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
Tool-Free Crystalline TG Side Panel
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
Versatile Cooling Options
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
PSU Shroud With Removable Cover
MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
Hardware Compatibility
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.
| Model Number | TD500V2-WGNN-S00 |
| Exterior Color | White |
| Materials - Exterior | Steel, Mesh, Plastic |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions) |
| Volume | 50L (excl. Protrusions) |
| Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
| I/O Panel - Audio In / Out | 1x Audio Jack |
| I/O Panel - Other | 1x ARGB Fan Hub |
| Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 165mm / 6.49" |
| Clearance - PSU | 200mm, (Recommended up to 170mm) |
| Clearance -GFX | 410mm / 16.14" |
| Cable Routing - Behind Motherboard Tray | 19mm / 0.74" |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Series | MasterBox Series |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Motherboard Size | |
| Radiator Size | |
| Side Panel | |
| Warranty | |
| EAN / UPC Code |
