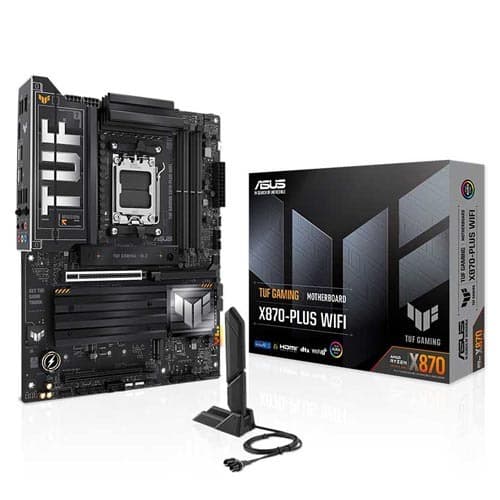

Model |
TUF GAMING X870-PLUS WIFI |
CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
Chipset |
AMD X870 Chipset |
Memory |
4 x DIMM slots, max. 192GB, DDR5 |
|
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors |
|
ECC and Non-ECC, Un-buffered DIMM* |
|
Dual channel memory architecture |
|
Supports AMD Extended Profiles for Overclocking (EXPO™) |
|
ASUS Enhanced Memory Profile (AEMP) |
Graphics |
1 x HDMI™ port** |
|
2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
|
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
|
** Supports 4K@60Hz as specified in HDMI 2.1. |
|
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. |
|
**** VGA resolution support depends on processors’ or graphic cards’ resolution. |
Expansion Slots |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
|
1 x PCIe 5.0 x16 slot (supports x16 mode)** |
|
AMD Ryzen™ 8000 Series Desktop Processors |
|
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** |
|
AMD X870 Chipset |
|
1 x PCIe 4.0 x16 slot (supports x4 mode)**** |
|
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
|
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. |
|
*** Specifications vary by CPU types. |
|
**** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
|
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
Storage |
Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* |
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
|
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
|
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** |
|
AMD Ryzen™ 8000 Series Desktop Processors |
|
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
|
M.2_2 slot not support |
|
AMD X870 Chipset |
|
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
|
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** |
|
2 x SATA 6Gb/s ports |
|
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. |
|
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. |
|
*** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
|
TUF LANGuard |
Wireless & Bluetooth |
Wi-Fi 7* |
|
2×2 Wi-Fi 7 (802.11be) |
|
Supports 2.4/5/6GHz frequency band** |
|
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
|
Bluetooth® v5.4*** |
|
*Wi-Fi features may vary depending on the operating system |
|
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
|
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. |
|
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
|
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
USB |
Rear USB (Total 10 ports) |
|
2 x USB4® (40Gbps) ports (2 x USB Type-C®)* |
|
3 x USB 10Gbps ports (3 x Type-A) |
|
4 x USB 5Gbps ports (4 x Type-A) |
|
1 x USB 2.0 port (1 x Type-A) |
|
Front USB (Total 7 ports) |
|
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)** |
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
* USB Type-C® power delivery output: max. 5V/3A |
|
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. |
Audio |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
|
Impedance sense for front and rear headphone outputs |
|
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
|
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
|
Supports up to 32-Bit/192 kHz playback* |
|
Audio Features |
|
Audio Shielding |
|
Premium audio capacitors |
|
Dedicated audio PCB layers |
|
Audio cover |
|
Unique de-pop circuit |
|
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

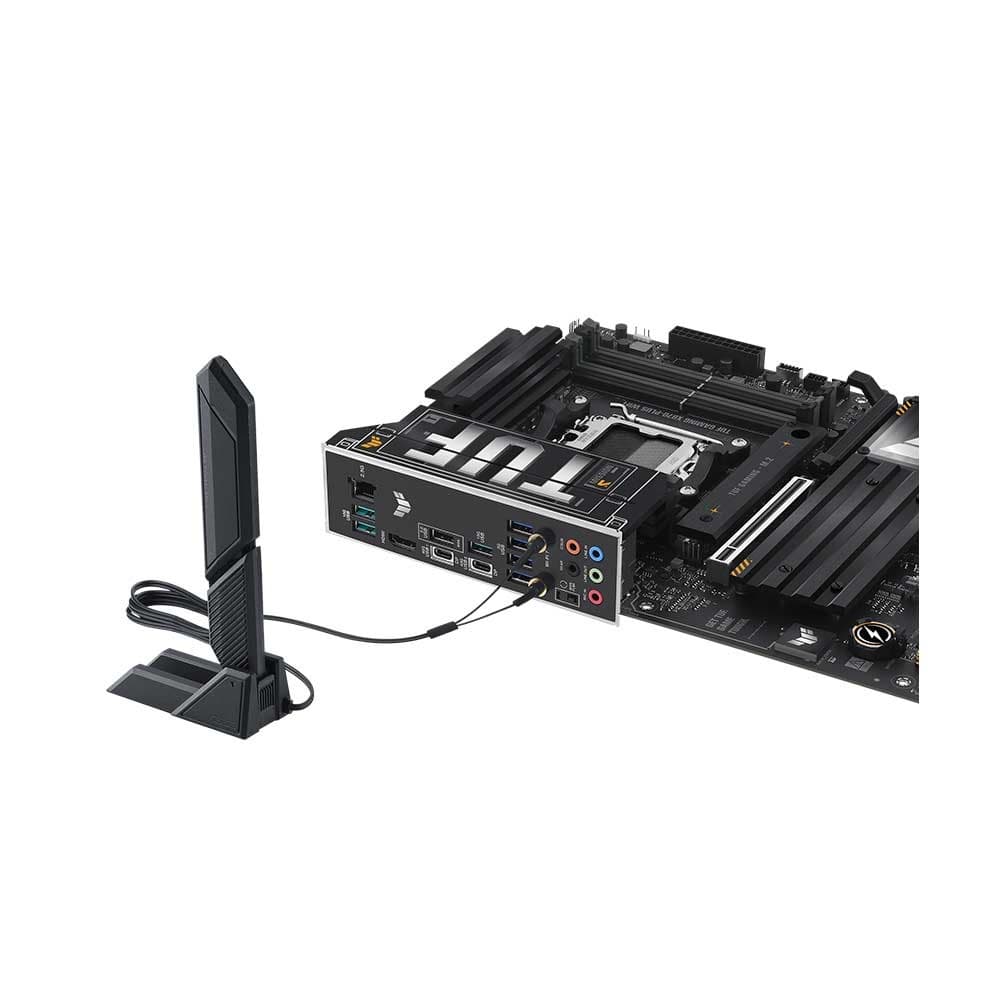

Back Panel I/O Ports |
2 x USB4® (40Gbps) (2 x USB Type-C®) ports |
|
3 x USB 10Gbps ports (3 x Type-A) |
|
4 x USB 5Gbps ports (4 x Type-A) |
|
1 x USB 2.0 port (1 x Type-A) |
|
1 x HDMI™ port |
|
1 x Wi-Fi module |
|
1 x Realtek 2.5Gb Ethernet port |
|
5 x Audio jacks |
|
1 x BIOS FlashBack™ button |
Internal I/O Connectors |
Fan and Cooling Related |
|
1 x 4-pin CPU Fan header |
|
1 x 4-pin CPU OPT Fan header |
|
1 x 4-pin AIO Pump header |
|
4 x 4-pin Chassis Fan headers |
|
1 x W_PUMP+ header |
|
Power Related |
|
1 x 24-pin Main Power connector |
|
2 x 8-pin +12V CPU Power connectors |
|
Storage Related |
|
4 x M.2 slots (Key M) |
|
2 x SATA 6Gb/s ports |
|
USB |
|
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) |
|
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
Miscellaneous |
|
3 x Addressable Gen 2 headers |
|
1 x Clear CMOS header |
|
1 x Chassis Intrusion header |
|
1 x COM Port header |
|
1 x Front Panel Audio header (F_AUDIO) |
|
1 x 10-1 pin Front System Panel header |
|
1 x Thermal Sensor header |
Special Features |
ASUS TUF PROTECTION |
|
DIGI+ VRM (- Digital power design with SPS) |
|
ESD Guards |
|
TUF LANGuard |
|
Overvoltage protection |
|
SafeSlot |
|
Stainless-steel back I/O |
|
ASUS Q-Design |
|
M.2 Q-Latch |
|
PCIe Slot Q-Release |
|
Q-Antenna |
|
Q-Dashboard |
|
Q-DIMM |
|
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
|
Q-Slot |
|
ASUS Thermal Solution |
|
M.2 heatsinks |
|
VRM heatsink design |
|
ASUS EZ DIY |
|
BIOS FlashBack™ button |
|
BIOS FlashBack™ LED |
|
ProCool |
|
Pre-mounted I/O shield |
|
SafeDIMM |
|
Aura Sync |
|
Addressable Gen 2 headers |
|
Front Panel USB 20Gbps with PD Fast Charge Support |
|
Support: up to 30W fast charging and USB Wattage Watcher |
|
Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A |
|
Compatible with PD3.0 |
Software Features |
ASUS Exclusive Software |
|
Armoury Crate |
|
Aura Creator |
|
Aura Sync |
|
Fan Xpert 4 (with AI Cooling II) |
|
Power Saving |
|
ASUS DriverHub |
|
ASUS GlideX |
|
USB Wattage Watcher |
|
TurboV Core |
|
TUF GAMING CPU-Z |
|
DTS Audio Processing |
|
Norton 360 for Gamers (60 Days Free Trial) |
|
WinRAR (40 Days Free Trial) |
|
UEFI BIOS |
|
AI Overclocking Guide |
|
ASUS EZ DIY |
|
ASUS CrashFree BIOS 3 |
|
ASUS EZ Flash 3 |
|
ASUS UEFI BIOS EZ Mode |
|
ASUS MyHotkey |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
|
2 x SATA 6Gb/s cables |
|
Miscellaneous |
|
1 x ASUS WiFi Q-Antenna |
|
2 x M.2 rubber packages |
|
1 x Screw package for M.2 SSD |
|
1 x TUF GAMING sticker |
|
Documentation |
|
1 x Quick start guide |
Operating System |
Windows 11 |
Form Factor |
ATX Form Factor |
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty |
3 Years |
