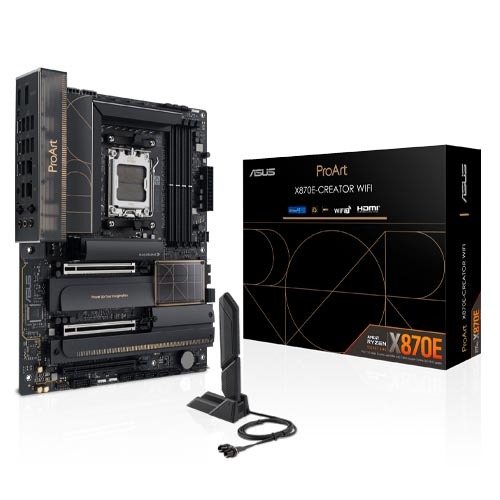

ASUS ProArt X870E-CREATOR WiFi Motherboard
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
- Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity: Dual USB4® ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe® 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
Original price was: ₹80,000.00.₹50,999.00Current price is: ₹50,999.00.
Feature
- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
- Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity: Dual USB4 ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
- Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling and AI Networking II, Dynamic OC Switcher, and Core Flex
- DIY-Friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack, Q-Connector
- ProArt gives you more: ProArt Creator Hub with Color Management working in conjunction with Pantone’s proprietary utilities for one-stop system control and creation related settings
- Advanced security: USB p
X870E-CREATOR WIFI
X870E-CREATOR WIFIThe ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
- DisplayPort™ input port for USB4®
- HDMI® 2.1 port (4K @ 60 Hz)
- 7 x USB 10Gbps ports
- 2 x USB4® ports with DisplayPort™ 1.4 (8K @ 60 Hz)
- 1 x USB 20Gbps Type-C® port
- 10 Gb & 2.5 Gb Ethernet
- BIOS FlashBack™
- 1 x USB 2.0 port
- WiFi 7
- 3 x Audio jacks
- 1 x USB 20Gbps Type-C® front-panel connector with 30-watt PD, QC 4+
- 1 x USB 5Gbps front-panel header
- 4 x SATA 6 Gb/s
- 3 x USB 2.0 headers
- 3 x Aura addressable Gen 2 RGB headers
All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.
Ultrafast Networking
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.
**Specifications vary by model.
Wireless Signal Reception Improvement
Versus previous-generation antenna
PCIe 5.0 Support
Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Four Onboard M.2 Slots
ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.
The Core of Your Powerful Workstation
Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
-
16V core Power (80A, SPS)
-
2 SOC Power (80A, SPS)
-
2 Misc Power (80A, DrMOS)
-
Eight-Layer PCB Design
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.
-
ProCool II Connectors
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
-
Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
-
Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The new Overclocking Load Guard also has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Memory
The ProArt X870E-Creator WiFi enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.
-
DDR5 Strength
For those who want to fly past stock DDR5 speeds*, the ProArt X870E-Creator WiFi is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
-
ASUS Enhanced Memory Profile (AEMP)
This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
The Power of Minimalist Design
A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.
Everything You Need to Optimize Workflow
Customize Your Personal Settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.
Color Management
One of the most important things for creators is color. The top right corner allows easy access to the Color Management feature. This includes the Screen Color Picker and Image Color Extractor that make it simple to get a detailed color analysis and color information, and you can use the Color Palette to build your personal color preferences. You will also find color trends and color palettes created by the professionals at the ASUS Design Center.
Security Control and Remote Management
Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.
USB Port Management
Enable or disable the USB port, or set it to Read Only to prevent data leaks.
Software Blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.
Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.
Upgraded UEFI BIOS
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.
ASUS GlidEx
A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.
Trusted Stability
ProArt X870E-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
| Model | ProArt X870E-Creator WiFi |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to | |
| 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, | |
| ECC and Non-ECC Un-buffered DIMM | |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Graphics | 1 x HDMI™ port** |
| 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| **** VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
| 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) | |
| AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* | |
| 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) | |
| AMD Ryzen™ 8500 & 8300 Series Desktop Processors* | |
| 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) | |
| AMD X870E Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. | |
| *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4. | |
| To ensure compatibility of the device installed, please refer to | |
| https://www.asus.com/support/ for the list of supported peripherals. | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot is not supported | |
| AMD X870E Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * PCIEX16(G5)_2 slot shares bandwidth with M.2_2. | |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet |
| 1 x Intel® 2.5Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details. | |
| USB | Rear USB (Total 11 ports) |
| 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) | |
| 1 x USB 20Gbps port(s) (1 x USB Type-C®) | |
| 7 x USB 10Gbps port(s) (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** | |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports | |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports | |
| “* USB Type-C® power delivery output: max. 5V/3.0A” | |
| ** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* |
| Impedance sense for front and rear headphone outputs | |
| Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
| ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) |
| 1 x USB 20Gbps port (1 x USB Type-C®) | |
| 7 x USB 10Gbps ports (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| 1 x DisplayPort (Input only) | |
| 1 x HDMITM port | |
| 1 x Wi-Fi Module | |
| 1 x Marvell® AQtion 10Gb Ethernet | |
| 1 x Intel® 2.5Gb Ethernet | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) | |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports | |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI+ VRM (- Digital power design) | |
| Enhanced DRAM Overcurrent Protection | |
| ESD Guards | |
| LANGuard | |
| Overvoltage Protection | |
| Safeslot | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| M.2 Q-Release | |
| M.2 Q-Slide | |
| PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| Q-Antenna | |
| Q-Connector | |
| Q-DIMM | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | |
| M.2 heatsink backplate | |
| M.2 heatsinks | |
| VRM heatsink design ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| ProCool | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| AURA Sync | |
| Addressable Gen 2 headers | |
| Bespoke Motherboard Design & Business Focused Features | |
| 24/7 Reliability | |
| Overcurrent Protection | |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | |
| Support: up to 30W fast charging and USB Wattage Watcher | |
| Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A | |
| Compatible with PD3.0 | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 4 with AI Cooling II | |
| Power Saving | |
| ASUS DriverHub | |
| ASUS GlideX | |
| USB Wattage Watcher | |
| TurboV Core | |
| ASUS CPU-Z | |
| ProArt Creator Hub | |
| CreationFirst | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| Remote Management Features | IT Management software supported |
| ASUS Control Center Express(ACCE) | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 1 x DisplayPort cable | |
| 4 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 22110 | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Latch Q-Slide package for M.2 backplate | |
| 2 x Rubber Packages for M.2 | |
| 1 x ProArt ruler | |
| Documentation | |
| 1 x Quick start guide | |
| 1 x ACC Express Activation Key Card | |
| Operating System | Windows® 11 |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Warranty | 3 Years |
Q & A
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
Related Products
- B550M PRO-VDH WIFI Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- B550M PRO-VDH WIFI Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
- AM4 socket: B550-F Ready for 3rd Gen AMD Ryzen™ processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: B550-F On-board WiFi 6 (802.11ax) and Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: B550-F Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: B550-F AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
- AM4 socket: ROG Strix B550-F Ready for 3rd Gen AMD Ryzen™ processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: ROG Strix B550-F Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: ROG Strix B550-F AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
- Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad and 7W/mK pad, and M.2 Shield Frozr are built for high performance system and non-stop works
- Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases IR Digital VRM Solution with PowIRstage
- Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 16 Phases Digital VRM Solution with 70A Power Stage
- Advanced Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Baseplate
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks
- Ultra Durable™ PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1200 and WIMA Capacitors
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
- Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
- AI noise-canceling microphone: B550-Plus WIFI II provides crystal-clear in-game voice communication
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Comprehensive cooling: PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
- 5X Protection III: Multiple hardware safeguards for all-around system protection
Reviews
There are no reviews yet
