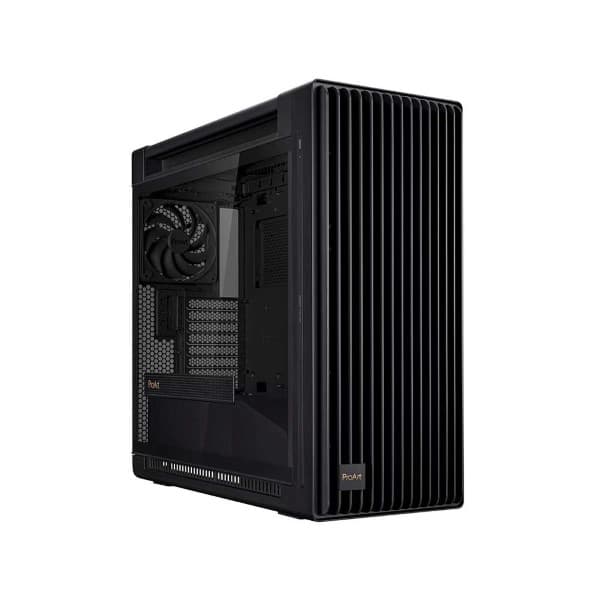

Asus ProArt PA602 (E-ATX) Mid Tower Cabinet (Black)
- Superior Airflow: 15.5 mm front panel grill with 45% porosity, two extra-thick 200 x 38 mm front fans for maximum air intake, and a 140 mm rear exhaust fan
- Superior Thermals: Two deflectors send incoming air towards the motherboard and other internal components to optimize temperatures
- Ample Space: Supports one 420 mm radiator for AIO cooling or custom liquid-cooling loops and the most robust graphics card get ample room for horizontal or vertical mounting
- Extensive I/O: Power Lock Latch and 2-section PWM control; USB Type-C 20Gbps port
- Front Panel IR Dust Indicator: Timely reminders to clean the filter to maintain top-tier airflow
- Creator-Friendly Design: Tool-less graphics card mounting, integrated graphics card holder and built-in fan hub come together to amp up the building experience
- Elegant aesthetics: Minimalist case adorned with ProArt themed design
Original price was: ₹24,500.00.₹22,399.00Current price is: ₹22,399.00.
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person.
ProArt PA602 Case
ProArt PA602 E-ATX computer case, 420 mm radiator support, one 140 mm and two 200mm pre-installed system fans, front panel IR dust indicator, power lock latch, tool-less PCIe mounting, USB 20Gbps support
- Superior Airflow: 15.5 mm front panel grill with 45% porosity, two extra-thick 200 x 38 mm front fans for maximum air intake, and a 140 mm rear exhaust fan
- Superior Thermals: Two air deflectors provide centralized cooling that controls the temperature of motherboards and other internal components
- Ample Space: Supports one 420 mm radiator for AIO cooling or custom liquid-cooling loops and the most robust graphics card get ample room for horizontal or vertical mounting
- Extensive I/O: Power Lock Latch and 2-section PWM control; USB Type-C 20Gbps port
- Front Panel IR Dust Indicator: Timely reminders to clean the filter to maintain top-tier airflow
- Creator-Friendly Design: Tool-less graphics card mounting, integrated graphics card holder and built-in fan hub come together to amp up the building experience
- Elegant aesthetics: Minimalist case adorned with ProArt themed design

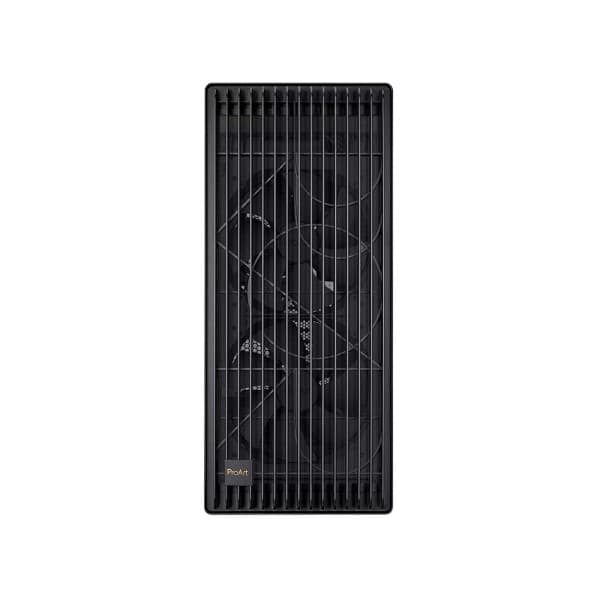

Air Superiority
The PA602 features a 15.5 mm open front grill with 45% porosity to maximize airflow and ventilation. Meanwhile, extra-thick PWM fans yield very high airflow and pleasant acoustics, and pre-installed dual air deflectors work in concert to help centralize cool air for both graphics cards and CPU cooler air intake, enhancing cooling efficiency for the whole system.
1. 15.5 mm open grill for maximum air intake
2. Thicker fans for enhanced cooling
- Front fan 200 x 38 mm
- Rear fan 140 x 28 mm
3. Dual air deflectors for airflow
Front I/O Optimized for Creators
Thoughtful touches streamline the day-to-day experience for artists and designers.
1. Premium Fan Speed Control
With integrated PWM control, switching between normal and working scenarios is effortless.
2. 20Gbps USB Type-C
The PA602 incorporates one 20Gbps USB Type-C port alongside two USB 3.0 and two USB 2.0 ports, for future-proof and backward-compatible connectivity with compatible motherboards.
3. Power Lock Latch
The power button is intelligently designed with a physical latch to prevent accidental presses during your work session, to help provide a hassle-free experience.
Superior Storage Expandability
This chassis supports up to four HDDs or up to eight SATA SSDs, ensuring ample storage capacity for your data storage needs.
- 4: MAX 3.5″ HDD
- 8: MAX 2.5″ SSD
Maximum Compatibility
1. Radiator: 420 mm
2. Graphics Card: 450 mm Horizontal Mounting, 125 mm Vertical Mounting
| Model | ProArt PA602 |
| Case Size | Mid Tower |
| Motherboard Support |
|
| Drive Bays | 4 x 2.5" Bay 4 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 8 2 (additional vertical) |
| Front I/O Port | 2 x USB 3.2 Gen1 1 x UBS 3.2 Gen 2x2 Type C 2 x USB 2.0 Fan Control Button Reset Button |
| Tempered Glass | Left Side |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| Cooling Support (Front) | 2 x 200 mm |
| Cooling Support (Top) | 3 x 120 mm 3 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
| Pre-installed Fans (Front) | 2 x 200 mm |
| Pre-installed Fans (Rear) | 1 x 140 mm PWM |
| Maximum CPU Cooler Height | 190 mm |
| Maximum GPU Length | 450 mm |
| Maximum PSU Length | 190 mm |
| Removable Dust Filters | Front Top Bottom |
| Maximum Cable Management Space | 30 mm |
| Dimensions | 593 x 560 x 245 mm |
| Weight | 15.8 kg |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
