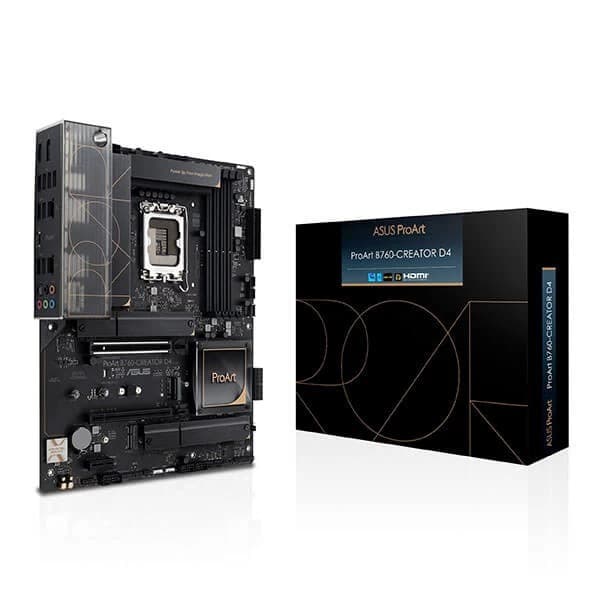

ASUS ProArt B760-CREATOR D4 Intel LGA 1700 (13th and 12th Gen) ATX Content Creator Motherboard,DDR4,PCIe 5.0,3xM.2 Slots,2.5 Gb &1Gb LAN,Front USB 3.2 Gen 2×2 Type-C,Thunderbolt(USB4®) Header
- Intel LGA 1700 socket: Ready for 12th&13th Gen Intel Core processors, support PCIe 5.0,and out of box Windows 11 ready.
- Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, Thunderbolt header support and a USB 3.2 Gen 2×2 front panel connector .
- Next-gen performance: 12+1 power stages rated for 50 amps, PCIe 5.0 ready.
- Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header.
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control.
Original price was: ₹43,246.00.₹25,199.00Current price is: ₹25,199.00.
ASUS ProArt B760-CREATOR D4 Intel LGA 1700(13th and 12th Gen) ATX Content Creator Motherboard,DDR4,PCIe 5.0,3xM.2 Slots,2.5 Gb &1Gb LAN,Front USB 3.2 Gen 2×2 Type C,Thunderbolt(USB4®) Header
Feature
ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing.
ProArt B760-Creator D4
ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C® front-panel connector and a ThunderboltTM 4 header.
Comprehensive Connectivity
PCIe 5.0 for graphics cards
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
Front USB3.2 Gen 2×2 Type-C
A full complement of USB ports, including a front-panel USB 3.2 Gen 2×2 Type-C® connector that provides data transfer speeds of up to 20 Gbps, supports high-end rigs loaded with peripherals.
Thunderbolt™ / USB4® support
The ProArt B760-Creator D4 features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.
M.2 Slot (Key E)
The ProArt B760-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules.
PCIe 4.0 M.2 Storage
The ProArt B760-Creator D4 features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
DDR4 Memory
ProArt B760-Creator D4 supports up to 128 GB of DDR4 memory across four slots. ASUS-exclusive OptiMem II technology improves trace layout to significantly reduce signal distance and crosstalk, enhancing memory stability and compatibility while giving memory kits higher clock speed margins.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
Two-Way AI Noise Cancelation
As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supports Intel® 10 nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® B760 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. | |
| Graphics | 1 x HDMI® port** |
| 1 x DisplayPort port*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Support 4K@60Hz as specified in HDMI 2.1. | |
| *** Support max. 8K@60Hz as specified in DisplayPort 1.4. | |
| Expansion Slots | Intel® 13th & 12th Gen Processors |
| 1 x PCIe 5.0/4.0/3.0 x16 slot | |
| Intel® B760 Chipset* | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot** | |
| ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. | |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel® B760 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*** | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports*** | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| 1 x Intel® 1Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 slot only (Key E, PCIe)* |
| *Wi-Fi module is sold separately. | |
| USB | Rear USB (Total 9 ports) |
| 1 x USB 3.2 Gen 2 Type-C® port | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| – Audio cover | |
| – Unique de-pop circuit | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 port (1 x USB Type-C®) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 1 x Intel® 1Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x M.2 slot (Key E) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5 pin System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ header | |
| Special Features | ASUS 5X PROTECTION III |
| – DIGI+ VRM (- Digital power design with DrMOS) | |
| – Enhanced DRAM Overcurrent Protection | |
| – ESD Guards | |
| – LANGuard | |
| – Overvoltage Protection | |
| – SafeSlot | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – Q-Connector | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – Flexible M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – ProCool | |
| – Pre-mounted I/O shield | |
| AURA Sync | |
| – AURA RGB header | |
| – Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| – AURA Creator | |
| – AURA Sync | |
| – Fan Xpert 4 | |
| – Power Saving | |
| – Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| – Performance And Power Saving Utility | |
| DIGI+ VRM | |
| Turbo app | |
| ASUS CPU-Z | |
| IT Management software supported | |
| – ASUS Control Center Express(ACCE) | |
| ProArt Creator Hub | |
| CreationFirst | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 2 x M.2 Rubber packages | |
| 1 x Screw package for M.2 Key E | |
| 1 x ProArt ruler | |
| 1 x Q-connector | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
