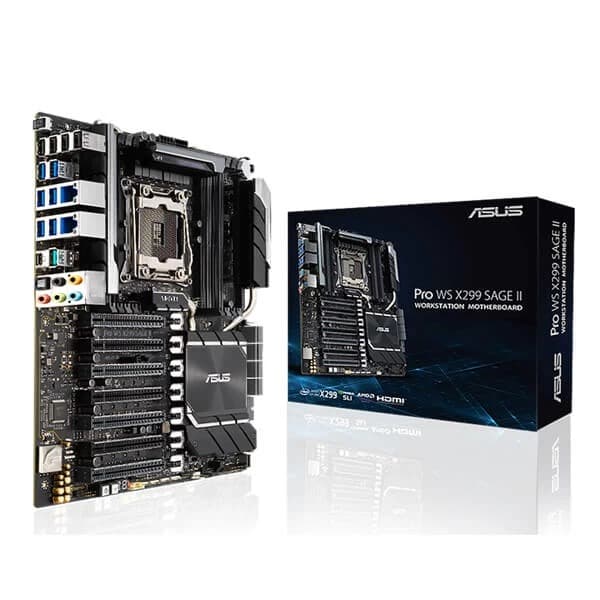

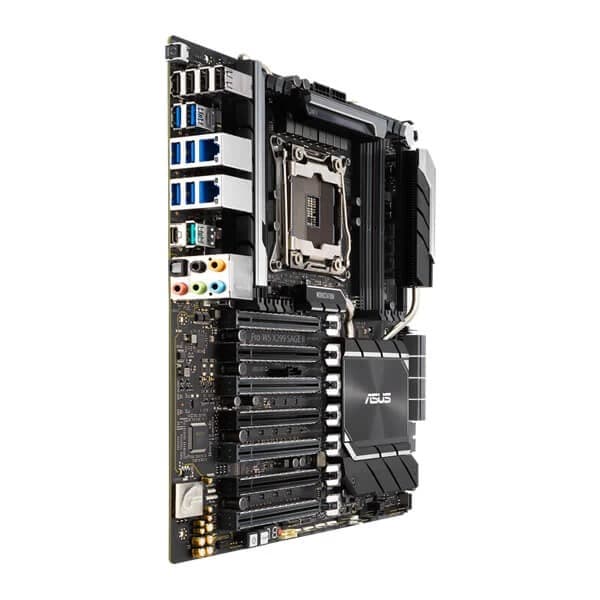

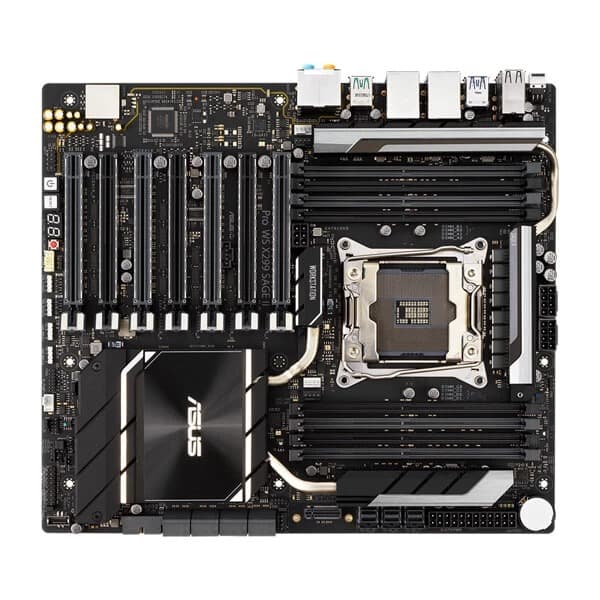

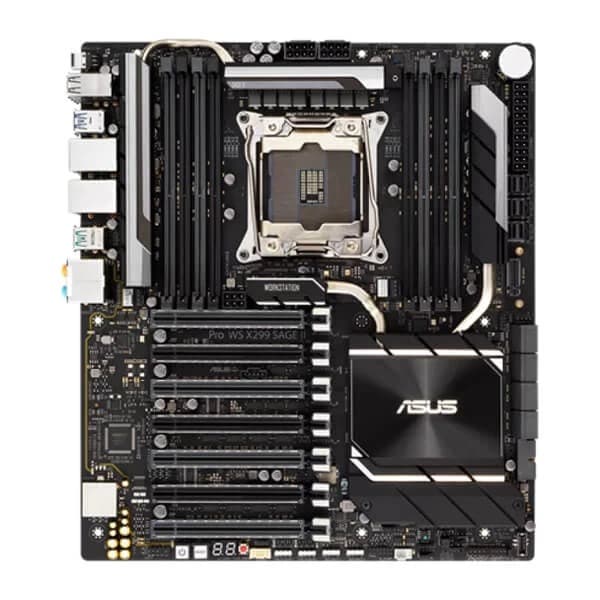

Asus Pro WS X299 Sage II LGA 2066 Intel Core X Workstation Motherboard
6 sold in last 19 hours
Hurry! Over 5 people have this in their carts
- CEB Form Factor
- Intel X299 Chipset
- Intel LGA 2066 Socket
- 8 x DDR4-4266 (OC)
- 8 x SATA III, 2 x M.2, 3 x U.2
- 7 x PCIe 3.0/2.0 x16 Slots
- Realtek 7.1-Channel HD Audio
- Dual Intel Gigabit LAN
- ThunderboltEX 3 Support
- Supports NVIDIA SLI and AMD CrossFireX
Estimated Delivery: Dec 25 – Dec 29
... people are viewing this right now
Original price was: ₹89,999.00.₹67,999.00Current price is: ₹67,999.00.
ASUS Pro WS X299 SAGE II Intel X299 LGA 2066 Socket R4 CEB Motherboard
Intel CEB motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, dual Intel 2.5G Ethernet, 7 PCIe Gen 3 slots, DDR4 4266 MHz memory support, dual M.2, triple U.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting
Dual Gigabit LAN
Dual Intel Gigabit LAN ports allow you to connect two Ethernet cables, increasing bandwidth speeds with lower latency, enhancing data transfer speeds, and providing high-resolution video streaming. Experience immersive soundscapes with integrated Realtek 7.1-channel HD audio, giving you clear sound quality whether you are working on a project or relaxing with a movie.
Four Dual-Slot GPU Support
Enable multi-GPU support by installing up to four dual-slot graphics cards. NVIDIA SLI and AMD CrossFireX allows you to create detailed graphics, develop high-end models, and produce intense renders with ease.
Faster Memory
ASUS T-Toplogy technology enhances memory stability and optimizes trace paths for time-aligned signaling, making the most of your memory’s speed. Additionally, Intel Optane support allows you to utilize the memory along with your CPU and internal storage drives to produce faster performance across your build.
Faster Storage
The incorporated M.2 and U.2 onboard ports have a direct path to the CPU, improving read and write speeds while also maintaining a cool temperature with a specialized heatsink that shields the M.2 drive from excessive heat. With Intel VROC technology, you can configure your solid-state drives as bootable memory with various RAID arrays including 0, 1, 5, and 10. This assists in eliminating traditional bottlenecks, ensuring your storage is not held back by other operations.
ASUS System Optimization
In order to keep your system safe and cool, ASUS implemented an artificial intelligence that monitors your system’s usage and modifies fan speeds to meet optimal cooling performance. If you wish to take matters into your own hands, the TurboV Processing Unit assists in adjusting overlock parameters to your liking. Digi+ Power Control allows you to fine-tune CPU voltage and power-efficiency settings. You can assign programs to specific CPU cores with the Turbo Core App, enabling you to prioritize the applications you use the most. Finally, save power with the Energy Processing Unit that shuts down unused I/O controllers, lowering overall power consumption when you are away from your work.
Cooler by Design
The Pro WS X299 Sage II provides ample cooling techniques in order to maintain proper system operations without overheating. Multiple heatsinks are located around the board, specially designed to dissipate heat from M.2 NVMe solid-state drives, and heat pipes transfer heat away from the array of high-performance components. Additionally, various headers are available for water pump radiators or fan installations, and integrated circuits prevent your cooling formation from overheating.
Clear Audio
The 7.1-channel audio system is built upon the Realtek S1220A codec, providing high-quality sound whether you are watching movies or immersing yourself in a game. DTS:X Ultra technology provides a boost to headphones and speakers with spatial audio features that enable post-processing enhancements and device-level tuning. The premium Japanese components provide audio shielding that separates analog and digital signals, reducing multi-lateral interference and offering clear surround sound with minimal crosstalk between audio paths.
ASUS Control Center
In order to better manage your build, an integrated IT management platform monitors your build and allows easy access via remote systems such as mobile devices. The ASUS Control Center also enables one-click software updates, keeping your BIOS settings up to date, and ensuring high-quality performance from your workstation.
| CPU | Intel® Socket 2066 Core™ X-Series Processors Supports Intel® Virtual RAID on CPU (VROC) |
| Chipset | Intel® X299 |
| Memory | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Multi-GPU Support | Supports NVIDIA® 4-Way SLI® Technology Supports AMD 4-Way CrossFireX Technology |
| Expansion Slots | 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
| Storage | Intel® X299 Chipset : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s port(s) 3 x U.2 connector Support Raid 0, 1, 5, 10 Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID Supports Intel® Smart Response Technology Intel® Rapid Storage Technology 15 support Intel® Optane™ Memory Ready Intel® Virtual RAID (VROC) support for CPU RAID |
| LAN | Intel® I225-LM |
| Audio | Realtek® S1200A 7.1-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-recording, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - DTS X®:Ultra - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality |
| USB Ports | Intel® X299 Chipset : 8 x USB 3.2 Gen 1 port(s) (6 at back panel, , 2 at mid-board) Intel® X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, ) ASMedia® USB 3.2 Gen 2 controller : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) ASMedia® USB 3.2 Gen 2 controller : 1 x USB 3.2 Gen 2 port(s) (1 at mid-board) |
| Special Features | OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App TPUFan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design AURA : - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - Crystal Sound 3 ASUS EZ DIY : - ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS FlashBack™ - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Cable - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Thunderbolt 3 support |
| Back I/O Ports | 2 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2(teal blue)Type-A 1 x USB 3.2 Gen 2 (black)USB Type-CTM, 6 x USB 3.2 Gen 1 (blue) 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™) 1 x Optical S/PDIF out 1 x USB BIOS FlashBack™ Button(s) 1 x 8-channel Audio I/O |
| Internal I/O Ports | 2 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 2 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 3 x U.2 connector 1 x System panel connector 1 x COM port header 1 x W_Pump+ Header 1 x Thermal sensor connector 1 x CPU_OV jumper 1 x M.2 Fan Header 1x 6-pin ATX 12V Power connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 3 x U.2 LED switch header |
| Accessories | User´s manual Addressable LED extension cable 1 x Vertical M.2 bracket set I/O Shield 1 x COM port cable(s) 8 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-connector(s) (0 in 1) |
| Operating System | Windows® 10 64-bit |
| Form Factor | CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm ) |
| Weight | Color Box(3-in-1) Net Weight: 5.55kg Gross Weight: 8.06kgBulk Pack(5-in-1) Net Weight: 6.99kg Gross Weight: 9.37kg |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Brands | |
|---|---|
| Chipset | |
| color | |
| Memory Series | |
| Motherboard Size | |
| Platform | |
| Product Type | |
| Socket | |
| EAN / UPC Code | |
| Warranty |
