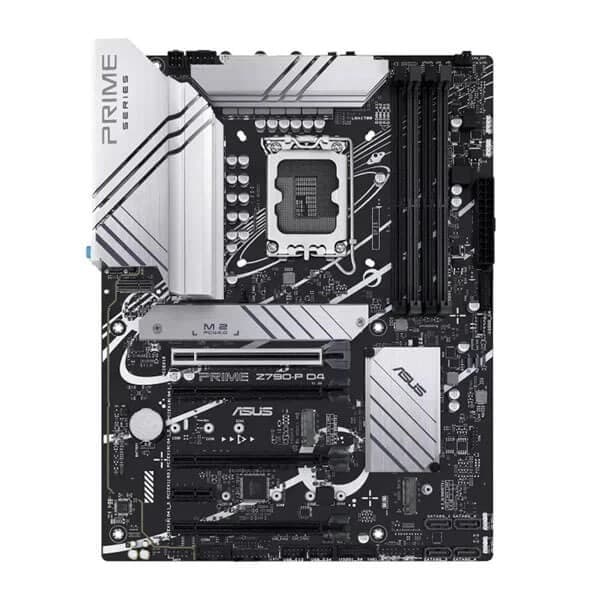

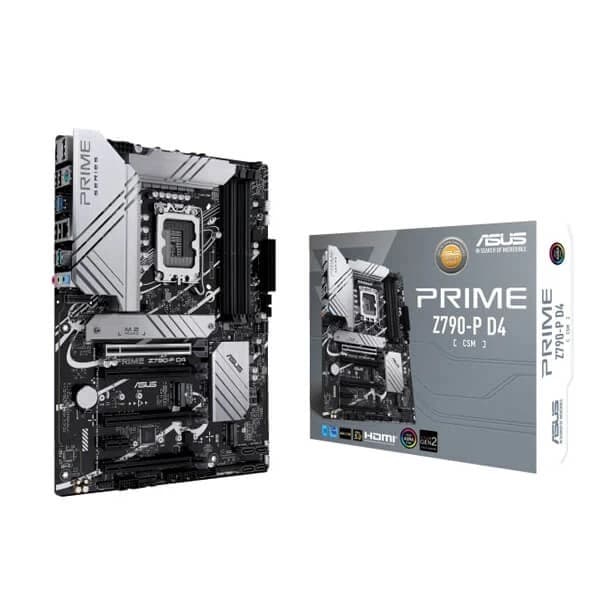

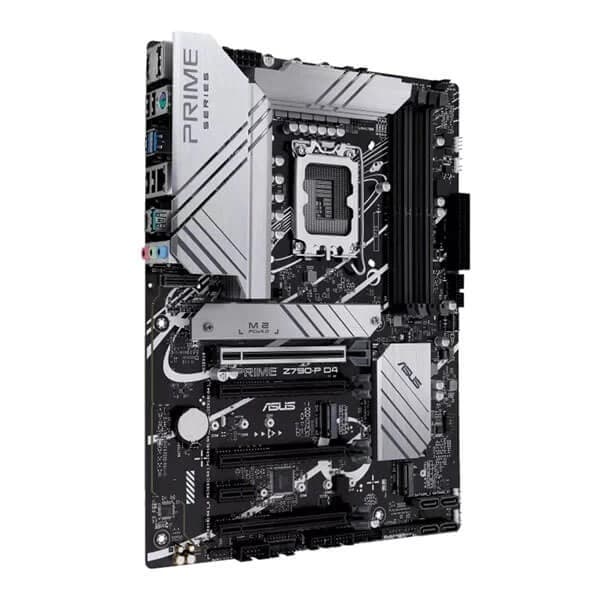

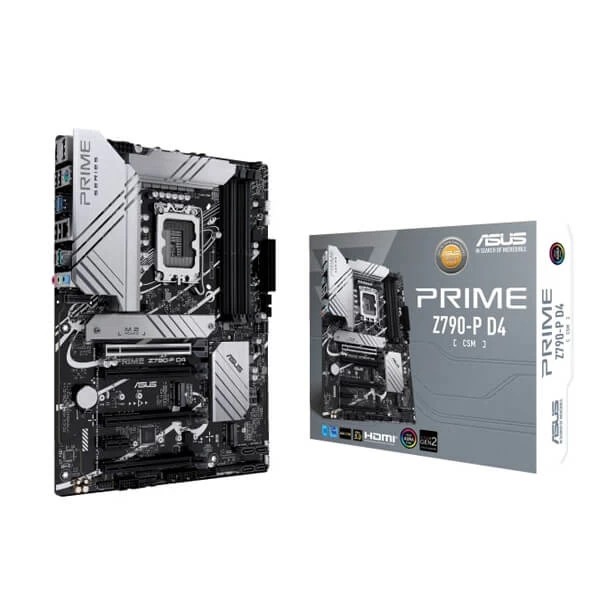

Asus PRIME Z790-P D4 CSM Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
- Intel® LGA 1700 socket: Z790-P D4 Ready for 12th and 13th Gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, 3 PCIe® 4.0 M.2
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Original price was: ₹28,000.00.₹21,929.00Current price is: ₹21,929.00.
Features:
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR
PRIME Z790-P D4-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
- Intel LGA 1700 socket: Ready for 12th and 13th Gen Intel processors
- 14 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to latest Intel processors.
- PRIME Z790-P D4-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
- AI Cooling II balances the thermals and acoustics of any build with a single click.
- PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and SafeSlot
|
|
|
|
|---|---|---|
AI Cooling llAI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds |
M.2 HeatsinksAn M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. Removable captive screws reduce the risk of drops or loss during heatsink removal. |
VRM Heatsinks and Thermal PadsThe extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance. |
|
|
|
|
|---|---|---|
Robust Power DesignStable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P D4 is geared to cater to the demands of these high-core-count CPUs. 1. ProCool Connectors: Proprietary connectors augment the motherboard’s link to the PSU with 4-pin + 8-pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. 2. 14 + 1 Teamed Power Stage A VRM with 14 + 1 DrMOS delivers the power and efficiency that the latest Intel processors demand. |
DDR4DDR4 5333 (OC) Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. |
Three M.2 slots (up to 64 Gbps)PRIME Z790-P D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. |
|
|
|
|
|---|---|---|
PCIe 5.0 SlotPCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express. |
USB 3.2 Gen 2×2 Type-CA batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C connectors with ultrafast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps. |
Thunderbolt 4 (USB4 compliant)PRIME Z790-P D4 motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution. |
| CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z790 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory |
| Graphics | 1 x DisplayPort** 1 x HDMI® port****Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

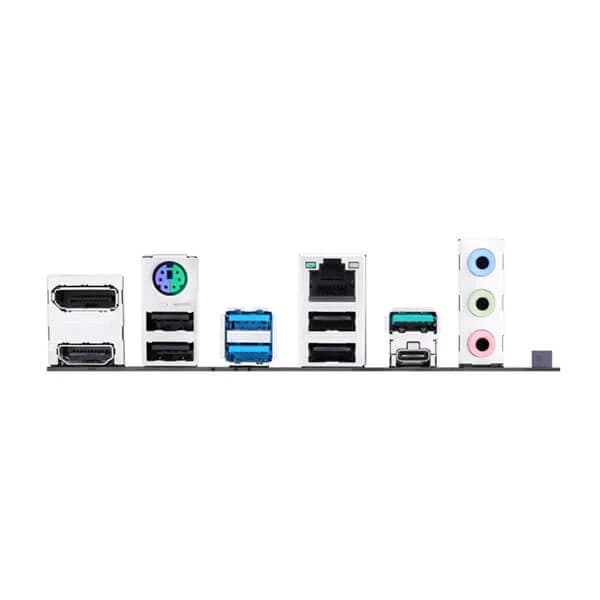

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ (USB4®) Header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
