Asus Prime Z590-P LGA 1200 DDR4 Intel Motherboard

Name: Buy Asus Prime Z590-P LGA 1200 DDR4 Intel Motherboard - Computech Store
Brand: Asus
SKU: Prime Z590-P
Price: 17319.00 INR
Availability: OutOfStock

Brands

Brand:

Asus

Intel LGA 1200 Socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors.BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Enhanced Power Solution: 10+1 DrMOS power stages, ProCool sockets, alloy chokes and durable capacitors provide stable power delivery for the most demanding situations
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
Boosted Memory Performance: ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.
Ultrafast Connectivity: PCIe 4.0, 3x M.2, 2.5 Gb LAN, front panel USB 3.2 Gen 2X2 Type-C and Thunderbolt 4 support

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹30,000.00.Current price is: ₹17,319.00.

Out of stock

Description Specifications Additional information Reviews (0) Q & A

ASUS Prime Z590-P LGA 1200 (Intel 11th/10th Gen) ATX Motherboard (PCIe 4.0, 10+1 Power Stages, 3X M.2, 2.5Gb LAN, Front Panel USB 3.2 Gen 2 USB Type-C, Thunderbolt 4 Support)

Intel LGA 1200 socket: Ready for 11th and 10th gen Intel Core processor
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support

Intel 11th Gen Optimized

Designed to unleash the full potential of 11th Gen Intel processors, the Prime Z590-P gives you access to PCIe 4.0 speeds, enhancing performance for graphics cards and M.2 solid-state storage drives. You can also experience enhanced onboard visuals with DisplayPort 1.4 and HDMI 2.0 connectivity, giving you clear images with high-quality resolution and fast frame rates, suitable for enjoying media and some light gaming.

Thermal Enhancements

Sporting two enlarged heatsinks and heatpads, the Asus Prime Z590-P provides you with enhanced thermal capabilities that protect the motherboard from damage caused by excessive heat damage. A single thermal M.2 heatsink can be placed in one of two places, able to provide ample support for your solid-state storage device. Multiple temperature sources, PWM/DC fan auto detection, and Smart Protection all work together to maintain system cooling performance. Support for all-in-one coolers is also present, giving you a wide range of customization when planning your build.

Enhanced Durability

The Prime Z590-P includes various enhancements that boost the durability of your build. SafeSlot Core+ is an ASUS-exclusive PCIe slot that is fortified with a one-piece stainless-steel brace that shields the slot from damage. This cover is tightly secured to the slot with hooks and is anchored to the circuit board with strengthened solder points, giving you a strong foundation for heavy graphics cards. Overvoltage protection, LANGuard, and DRAM Overcurrent protection all provide improved stability for your components and prolong the lifespan of your system. A stainless-steel back I/O consists of corrosion-resistant materials, keeping your ports clean and strong.

Connectivity

Connect your various peripherals to the Prime Z590-P with a wide array of USB ports and internal headers. Providing you with enhanced transfer rates suitable for your external devices, USB 3.2 Gen 1 and USB 2.0 Type-A ports are located on the back panel. For high-resource demanding peripherals, USB 3.2 Gen 2 Type-A and 3.2 Gen 2×2 Type-C ports are available, giving you speeds up to 10 Gb/s and 20 Gb/s, respectively. Internal headers support USB 3.2 Gen 1, Gen 2, and 2.0, offering massive flexibility for your system. With a Thunderbolt 4 header, you can install an optional utility card that gives you up to 40 Gb/s speeds as well as daisy-chain capabilities, suitable for external displays as well as multi-storage drive bays. Additionally, a 2.5 Gigabit Ethernet port is available for high-speed LAN capabilities, essential for viewing high-quality media and intense competitive gaming.

Robust Power Design

The Prime Z-590-P uses robust 10+1 DrMOS power stages to stabilize system efficiency. Equipped with an 8-pin ProCool connector, the board passes 12-volts of power directly to the CPU, ensuring electrical stability.

Onboard Audio

Immerse yourself deep within your media and games with premium onboard audio. Constructed with premium Japanese capacitors, the Prime Z590-P separates analog and digital signal domains to reduce multi-lateral interference and ensure minimal crosstalk between audio paths, providing a clear audio experience.

Personalization

Designed with customization in mind, the already elegant Prime Z590-P provides you with the ability to equip your rig with an array of RGB lighting and effects. The Addressable Gen 2 RGB headers and Armoury Crate illumination system can mix and match colors and effects to your personal taste, giving you a unique aesthetic that stands out. AURA Sync unites interior lighting and external devices such as mice and keyboards, taking your lighting game to the next level.

BIOS and Intelligent Control

Control the various aspects of your machine including the ability to easily overclock your components with UEFI BIOS. Whether you are an advanced user or wish to make adjustments quickly, the ASUS BIOS offers guided wizards, drag-and-drop functionality, and one-click application of important settings to get your rig booted up in no time. Intelligent control adjusts system performance including modifying cooling configurations, giving you the performance you want with just the click of a button. The Digi+ VRM control and EPU offers power-efficiency settings, enabling you to fine-tune your CPU for stability and performance.

CPU	Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Z590
Memory	5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/ 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
Graphics	* Graphics specifications may vary between CPU types. Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. * Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.
Expansion Slots	1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function.
Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	V-M.2 slot only (Key E, CNVi & PCIe)*
USB	Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers

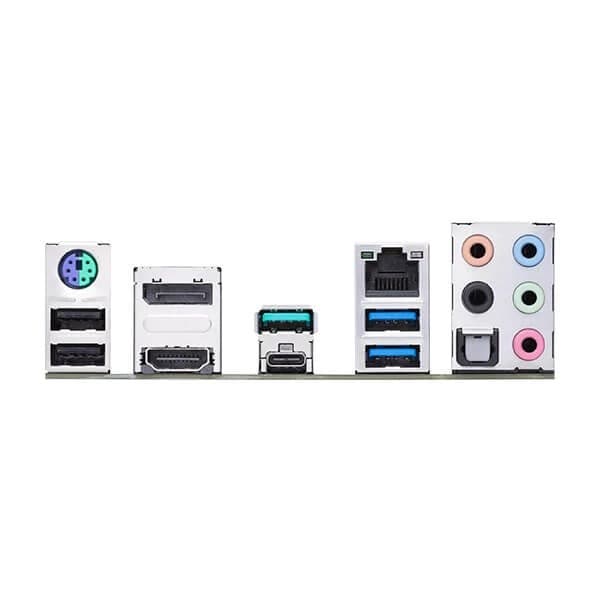

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Software Features	ASUS Exclusive Software Armoury Crate - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User manual
Operating System	Windows 10 64bit
Form Factor	ATX 30.5cm x 23.4cm
Warranty	3-Years
Note	*** Features, Price, Specifications are subject to change without notice.

Brands	Asus
Chipset	Z590
color	Black
Memory Series	DDR4
Motherboard Series	Asus Prime
Motherboard Size	ATX
Platform	Intel
Product Type	Normal
Socket	LGA 1200
Warranty	3 Years
EAN / UPC Code	4711081101543
