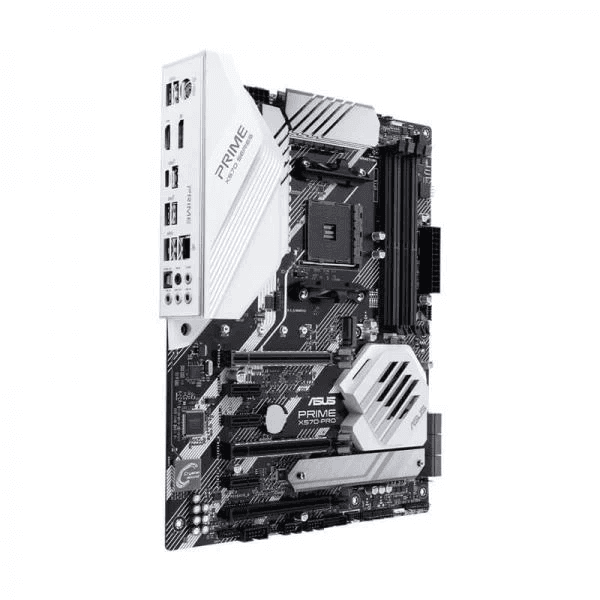

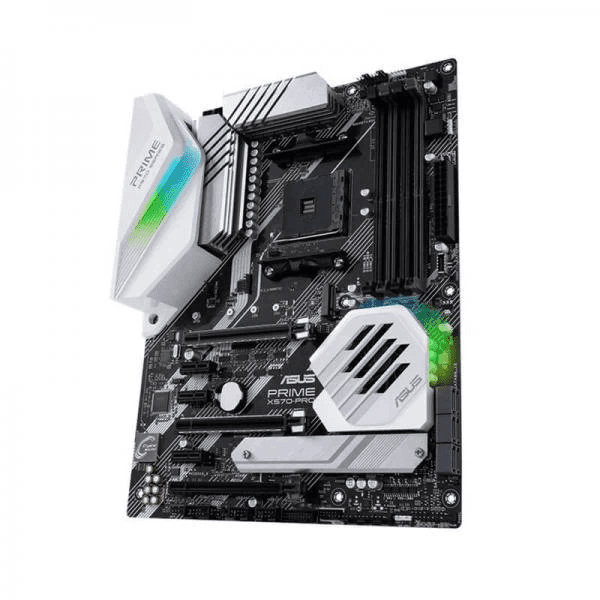

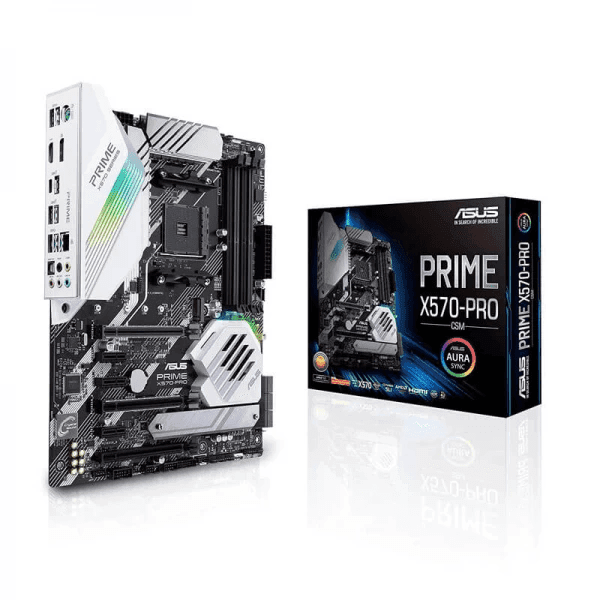

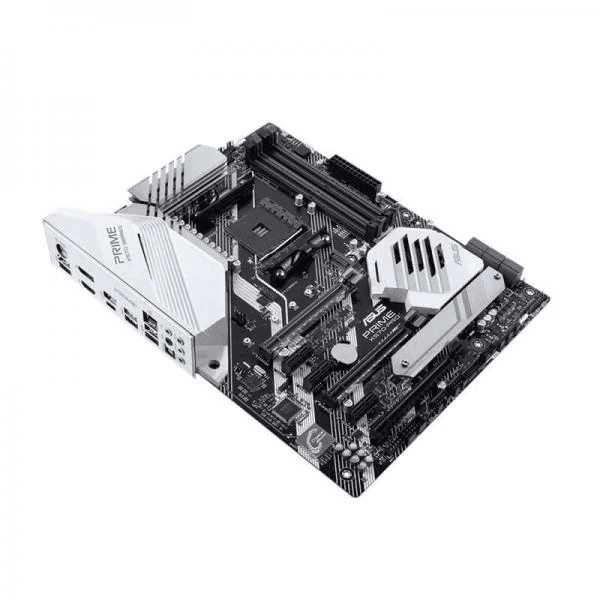

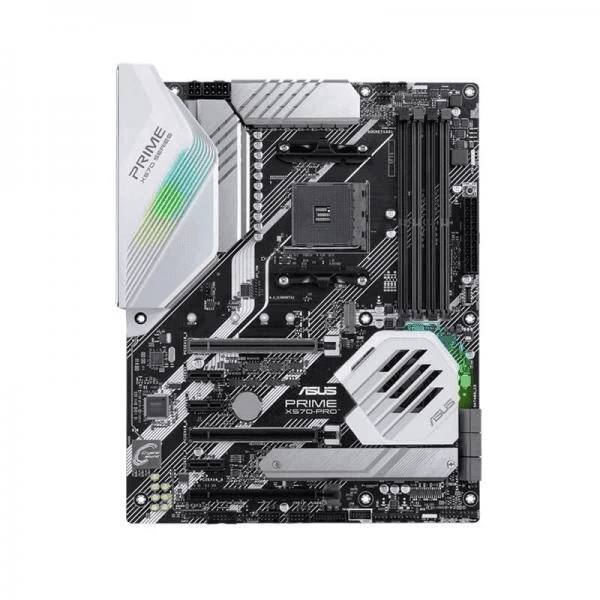

Asus Prime X570-PRO/CSM
- AMD AM4 Socket: X570-PRO/CSM Ready for 3rd and 2nd Gen AMD Ryzen™ processors
- ASUS Corporate Stable Model (CSM): A commercial program offers up to 36-month product lifecycle and 6-month EOL notice for product transitions
- ASUS Control Center Express: A centralized server-grade management software for asset management, software deployment and monitoring and mobile control
- Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- 5-Way Optimization: X570-PRO/CSM One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹25,000.00
Email when stock available
Asus Prime X570-PRO/CSM
FEATURES
AMD AM4 ATX motherboard with PCIe 4.0, 14 DrMOS power stages, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 front-panel connector and Aura Sync RGB lighting
- AMD AM4 Socket: X570-PRO/CSM Ready for 3rd and 2nd Gen AMD Ryzen™ processors
- ASUS Corporate Stable Model (CSM): A commercial program offers up to 36-month product lifecycle and 6-month EOL notice for product transitions
- ASUS Control Center Express: A centralized server-grade management software for asset management, software deployment and monitoring and mobile control
- X570-PRO/CSM Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
- M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
- Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
PRIME
Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen™ processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
ASUS Control Center Express
One-minute installation
ASUS Control Center Express is centralized server-grade management software that takes just one minute to install and is designed to reduce IT operations costs and improve efficiency. This powerful tool enables IT administrators to manage and control multiple clients in different locations remotely and includes features such as asset management, software deployment and monitoring. It also lets IT staff visualize deployments, facilitating real-time control.
Power delivery enhancements
The 3rd Gen AMD Ryzen™ processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Prime X570-Pro/CSM is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.
5-Way Optimization
- One-click overclock and cooling, done!
- One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Media-acclaimed UEFI BIOS
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime X570-Pro/CSM offers one of the best in the business.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
Aura Sync
Outshine the competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Addressable Gen 2 RGB header
Prime X570-Pro/CSM’s Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
Chipset | AMD X570 |
Memory | 3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * The maximum memory capacity supported vary depending on the CPU you installed. |
Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology |
Expansion Slots | 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
LAN | Intel® I211-AT ASUS LAN Guard |
Audio | Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) - Supports up to 32-Bit/192kHz playback * Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - EMI protection cover to prevent electrical noise to affect the amplifier quality * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
USB Ports | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
Special Features | 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App DIGI+ VRM: Digital power design with Dr. MOS EPU Guidance TPU Insight Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications. ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem: - Improved DDR4 Stability AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - Armoury Crate - Pre-mounted I/O Shield ASUS Quiet Thermal Solution : - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |

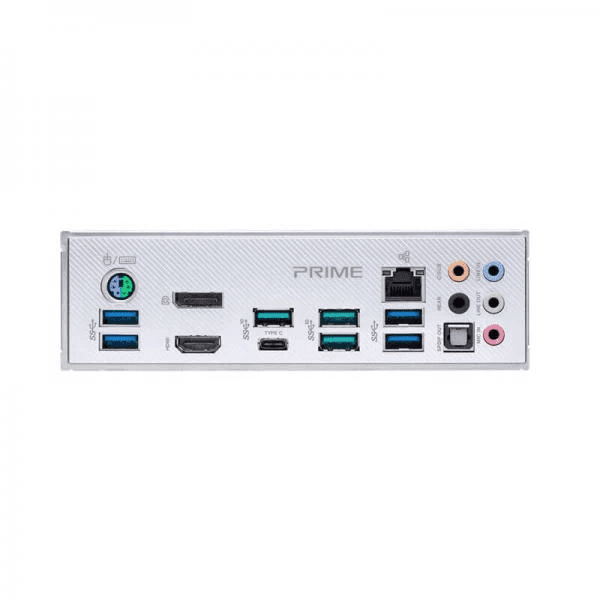

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) |
Internal I/O Ports | 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x Water Pump header (4-pin) 1 x T_Sensor Connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
Operating System | Windows® 10 64-bit |
Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
Weight | 1 kg |
---|---|
Dimensions | 31 × 5 × 24 cm |
