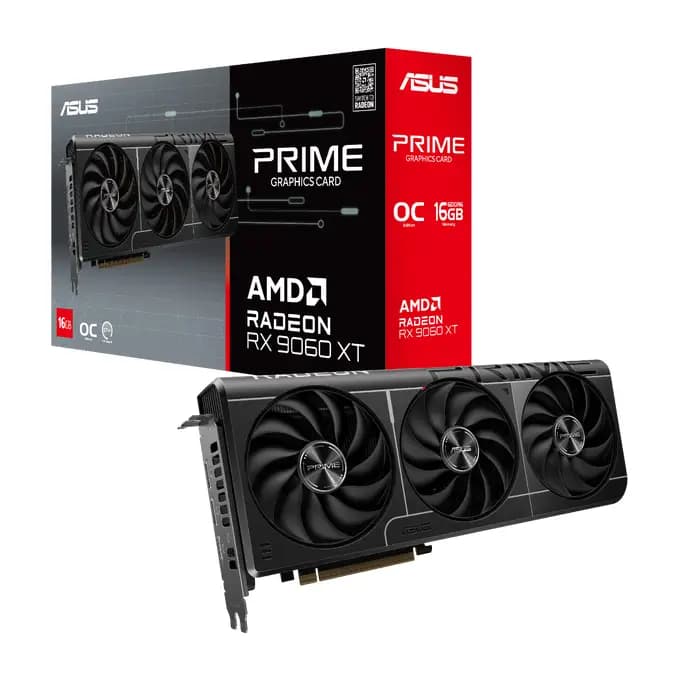

ASUS Prime Radeon™ RX 9060 XT 16GB GDDR6 OC Edition
Original price was: ₹82,500.00.₹41,499.00Current price is: ₹41,499.00.
ASUS Prime Radeon™ RX 9060 XT 16GB GDDR6 OC Edition
PRIME RADEON™ RX 9060 XT
Primed for Power
Experience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.
Cooling
2.5-slot Design
The Prime Radeon™ RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Unmatched Reliability
Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
Stainless Steel Bracket
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.
Engineering
-
Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
-
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
BEST PSU FOR RADEON™ RX 9000 SERIES
Use the wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.
| Model | PRIME-RX9060XT-O16G | ||
|---|---|---|---|
| Graphic Engine | AMD Radeon™ RX 9060 XT | ||
| Bus Standard | PCI Express 5.0 | ||
| OpenGL | OpenGL®4.6 | ||
| Video Memory | 16GB GDDR6 | ||
| Engine Clock | TBD | ||
| Stream Processors | 2048 | ||
| Memory Speed | 20 Gbps | ||
| Memory Interface | 128-bit | ||
| Resolution | Digital Max Resolution 7680 x 4320 | ||
| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1a) HDCP Support Yes (2.3) | ||
| Maximum Display Support | 3 | ||
| NVlink/ Crossfire Support | No | ||
| Accessories | 1 x Thank you card 1 x Speedsetup Manual | ||
| Software | ASUS GPU Tweak III & Drivers: please download all software from the support site. | ||
| Dimensions | 304 x 126 x 50mm | ||
| Recommended PSU | 550W | ||
| Power Connectors | 1 x 8-pin | ||
| Slot | 2.5 Slot |
| Weight | 1 kg |
|---|---|
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Memory Series | |
| Warranty |
