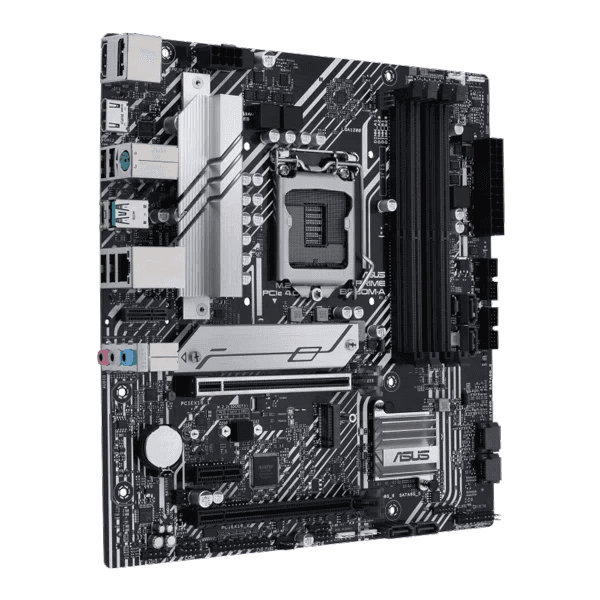

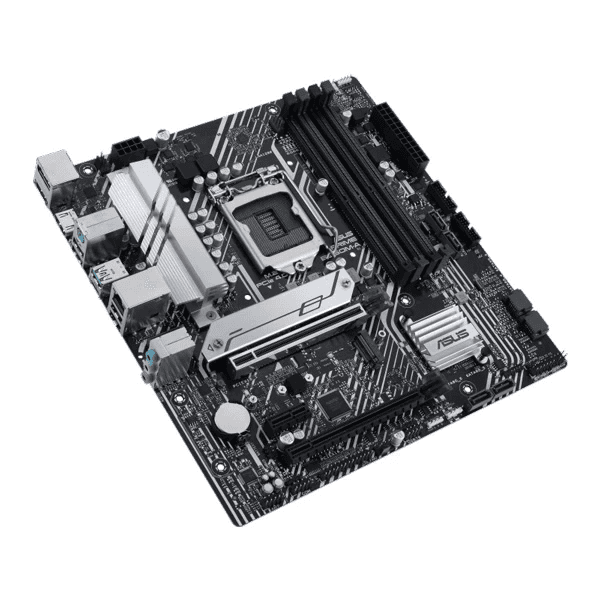

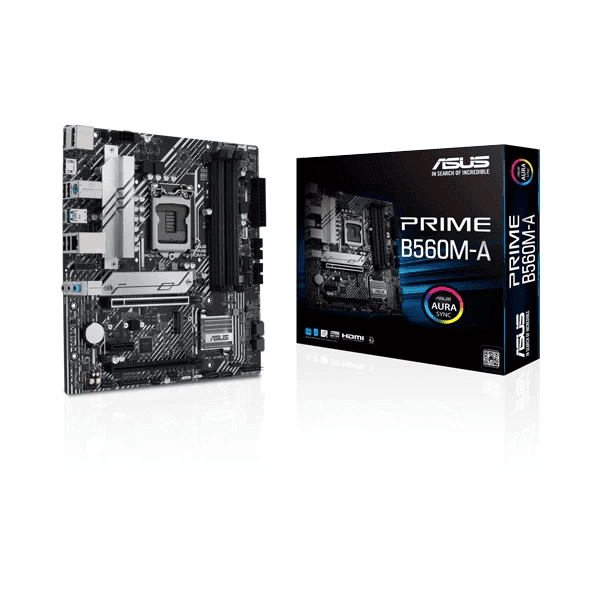

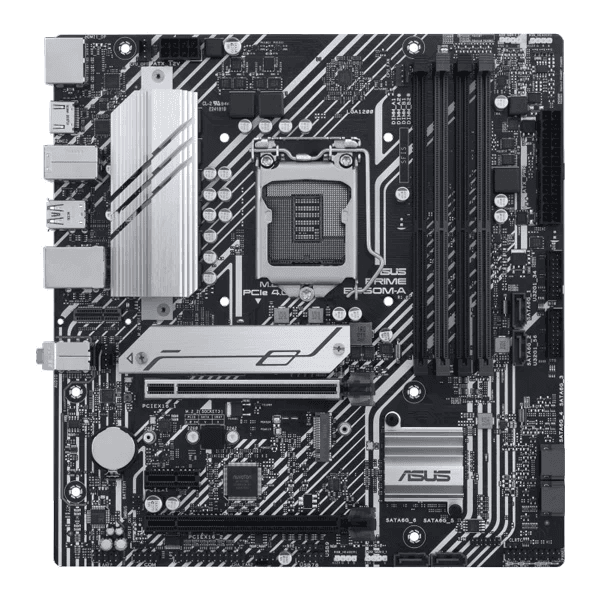

Asus Prime B560M-A Intel Motherboard
Brand:
Asus
- Intel® LGA 1200 socket: B560M-A Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Memory overclocking: Support memory overclocking up to 5000 MHz
... people are viewing this right now
₹10,550.00
Out of stock
Email when stock available
Features
Intel® B560 (LGA 1200), PCIe 4.0,two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, dual HDMI, rear USB 3.2 Gen 2 Type-C®, V-M.2 Key E slot for Wi-Fi , Aura Sync, Addressable RGB, mATX motherboard
- Intel® LGA 1200 socket: B560M-A Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Memory overclocking: B560M-A Support memory overclocking up to 5000 MHz
- ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability
- Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C®) and V-M.2 Key E slot for Wi-Fi
| CPU | Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B560 Chipset |
| Memory | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x HDMI™ 2.0** * Graphics specifications may vary between CPU types. ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots | Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel®10th Gen processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory. |
| Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. |
| Ethernet | 1 x Intel® I219-LM 1Gb Ethernet ASUS LANGuard ASUS LANGuard |
| Wireless & Bluetooth | V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. |
| USB | Rear USB:Total 6 ports 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 2 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 1 x V-M.2 slot (Key E) 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Intrernal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x Vertical M.2 Key E bracket set Installation Media 1 x Support DVD Documentation 1 x User manual |
| Operating System | Windows 10 64bit |
| Form Factor | microATX 24.4cm x 23.4cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Brands | |
|---|---|
| Product Type | |
| Socket | |
| Chipset | |
| Motherboard Size | |
| Memory Series | |
| Platform | |
| Motherboard Series | |
| EAN / UPC Code |
