Asrock RX 6950 XT Phantom Gaming 16GB OC
Brand: Asrock
- 16GB GDDR6 256-bit
- 7680 x 4320
- PCIe 4.0
- Full Height
- DisplayPort 1.4a, HDMI 2.1
... people are viewing this right now
Original price was: ₹130,000.00.₹66,899.00Current price is: ₹66,899.00.
Out of stock
Email when stock available
Asrock AMD Radeon RX 6950 XT Phantom Gaming 16GB OC Graphic Card RX6950XT PG 16GO
Air Deflecting Fin
Guide Airflow To Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-Fit Heatpipe
Consolidated To Maximize The Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-Plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-Density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Polychrome SYNC
Create Your Own Unique Colorful Light Effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On Or Off? Switch As You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-Header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
Reinforced Metal Frame
Reinforced Metal Frame
Enhances the structure to prevent the PCB from being bent.

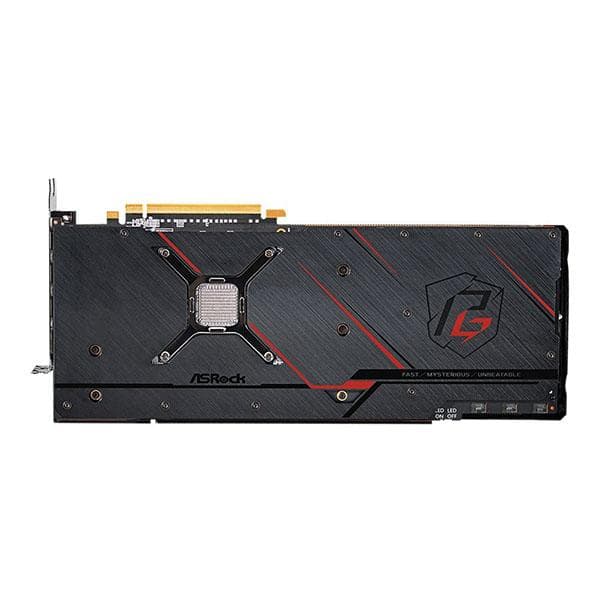

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Dr. MOS
![SAV [Dr.MOS] 70A](https://i0.wp.com/pg.asrock.com/Graphics-Card/features/SAV-DrMOS.jpg?w=1200&ssl=1)
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 70A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
![SAV [Premium 90A Power Choke]](https://i0.wp.com/pg.asrock.com/Graphics-Card/features/SAV-60APowerChoke.jpg?w=1200&ssl=1)
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
Nichicon 12K Black Caps
![SAV [Nichicon 12K Black Caps]](https://i0.wp.com/pg.asrock.com/Graphics-Card/features/SAV-Nichicon12KBlack.jpg?w=1200&ssl=1)
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
2oz Copper PCB
![SAV [2oz Copper PCB]](https://i0.wp.com/pg.asrock.com/Graphics-Card/features/SAV-2oz.jpg?w=1200&ssl=1)
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
![SAV [Matte Black PCB]](https://i0.wp.com/pg.asrock.com/Graphics-Card/features/SAV-MattePCB.jpg?w=1200&ssl=1)
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
![SAV [High Density Glass Fabric PCB]](https://i0.wp.com/pg.asrock.com/Graphics-Card/features/SAV-HDPCB.jpg?w=1200&ssl=1)
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
| Graphics Engine | AMD Radeon™ RX 6950 XT |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 16GB |
| Engine Clock | Boost Clock: Up to 2324 MHz |
| Game Clock: 2116 MHz | |
| Base Clock: 1958 MHz | |
| Stream Processors | 5120 |
| Compute Units | 80 |
| Memory Clock | 18 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| Interface | 1 x HDMI™ 2.1 VRR |
| 3 x DisplayPort™ 1.4 with DSC | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 900W |
| Power Connector | 3 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 330 x 140 x 56 mm, 2.8-slot |
| Net Weight | 1784 g |
| Brands | |
|---|---|
| Product Type | |
| GPU Chipset | |
| GPU Memory Size | |
| EAN / UPC Code | |
| Memory Series | |
| Max GPU Boost Clock |
