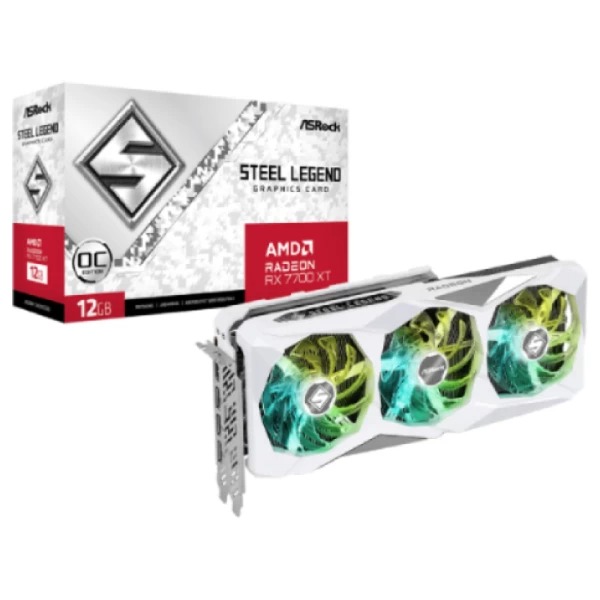

ASRock Radeon RX 7700 XT Steel Legend 12GB OC Graphics Card
- 12GB 192-Bit GDDR6
- Core Clock 2276 MHz
- Boost Clock 2599 MHz
- 1 x HDMI 2.1 3 x DisplayPort 2.1
- 3456 Stream Processors
- PCI Express 4.0 x16
Original price was: ₹67,999.00.₹40,949.00Current price is: ₹40,949.00.
ASRock Radeon RX 7700 XT Steel Legend 12GB OC 12GB GDDR6 PCI Express 4.0 x16 ATX Video Card RX7700XT SL 12GO
Feature
- Clock: GPU / Memory
Boost Clock*: Up to 2599 MHz / 18 Gbps
Game Clock**: 2276 MHz / 18 Gbps - Key Specification
AMD Radeon™ RX 7700 XT GPU
12GB GDDR6 on 192-Bit Memory Bus
54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
48MB AMD Infinity Cache™ technology
Microsoft® DirectX® 12 Ultimate
PCI® Express 4.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1 - Key Features
Polychrome SYNC
Triple Fan Design
Stylish Metal Backplate
Reinforced Metal Frame
Striped Axial Fan
Air Deflecting Fin
Ultra-fit Heatpipe
AMD Radeon™ RX 7700 XT Steel Legend 12GB OC
RX7700XT SL 12GO
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Reinforced Metal Frame
Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nicked Plated Total Copper Base
Optimize GPU and VRAM thermal transfer.
The large nickel-plated total copper base helps to optimize the thermal transfer for both GPU and VRAM effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Experience incredible performance, visuals, and efficiency when gaming and streaming with the AMD Radeon™ RX 7700 XT and 7800 XT graphics cards, powered by the AMD RDNA™ 3 architecture. Immerse yourself in next-generation desktop experiences on some of the most advanced high refresh rate displays with up to 16GB of GDDR6 memory, new frame generation technologies, advanced raytracing, AI accelerators, AV1 encoding4, and support for the latest DisplayPort™ 2.1 technology. The Radeon™ RX 7700 XT and 7800 XT delivers an incredible high refresh 1440p gaming & streaming experience, with additional video memory to step into 4K.
GAME
The AMD Radeon™ RX 7700 XT and 7800 XT graphics cards set a new level of performance for gamers. Featuring up to 16GB of GDDR6 memory, unified AMD RDNA™ 3 compute units, and next-generation features to enable ultra-fast, ultra-smooth gaming performance at 1440p, and the flexibility to experience ultra-detailed graphics at 4K. Immerse yourself even further with the AMD Radiance Display™ Engine and DisplayPort™ 2.1 to experience up to 68 billion colors for video playback and support for up to 8K.
STREAM
Get ready for next-generation, high-fidelity streaming using your favorite software, OBS Studio, with the new hardware AV1 encoders4. With improved encoding performance and enhanced visual quality when streaming, the Radeon™ RX 7700 XT and 7800 XT graphics cards are the ultimate plug-and-play solution for gamers and streamers. Enable AMD Noise Suppression5 featuring AI to eliminate ambient noise and communicate clearly with your audience or teammates.
ADVANCE
Combine AMD Radeon™ RX 7700 XT and 7800 XT graphics cards with AMD Ryzen™ processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series graphics cards with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.
UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY
AMD FidelityFX™ Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
| Model | RX7700XT-SL-12G |
| Chipset | AMD Radeon |
| GPU | RX 7700 XT |
| PCI Express | 4.0 |
| GPU Base Clock | 1700 MHz |
| GPU Boost Clock | 2599 MHz |
| Memory Clock | 18 Gbps |
| Memory Size | 12 GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX Support | 12 Ultimate |
| OpenGL | 4.6 |
| Ports | 3 x DisplayPort 2.1, 1 x HDMI 2.1 |
| Resolution | 7680 x 4320 |
| Cooler | Triple-Fan |
| Software | Driver And Software |
| Package Contents | Graphics Card, User Manual |
| GPU Core (CUDA Core) | 3456 |
| Power Connectors | 1 x 8-pin |
| Warranty | 3 Years |
| Note | *** Image use for reference only |
| *** Features, Price, Specifications are subject to change without notice |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Max GPU Boost Clock | |
| Memory Series | |
| Warranty | |
| EAN / UPC Code |
