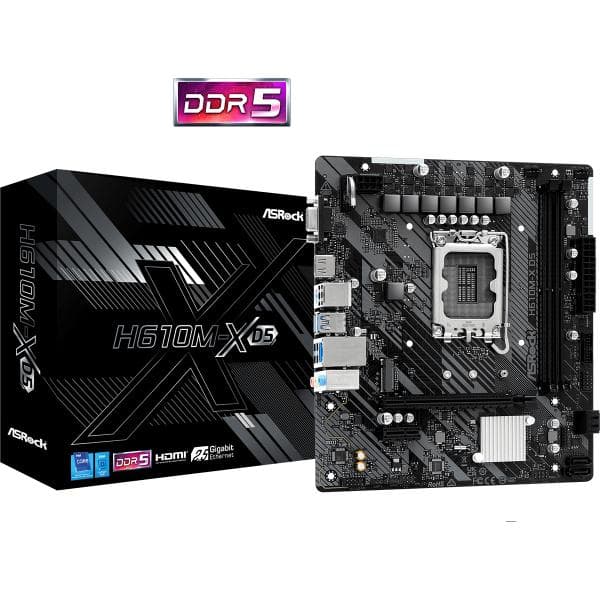

ASROCK H610M-X D5 MOTHERBOARD
1 sold in last 20 hours
Hurry! Over 7 people have this in their carts
Brand: Asrock
Estimated Delivery: Tue, Mar 03 – Sat, Mar 07
... people are viewing this right now
Original price was: ₹12,499.00.₹6,549.00Current price is: ₹6,549.00.
ASROCK H610M-X D5 MOTHERBOARD
The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.
- ASROCK H610M-X D5 Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 6+1+1 Power Phase
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 5600* - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4)
- 4 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
6 USB 2.0 (4 Rear, 2 Front) - Realtek 2.5G LAN
- Supports ASRock Auto Driver Installer
| Category | Details |
|---|---|
| Unique Features | - Dual Channel DDR5- 6+1+1 Power Phase- 2.5G Dragon LAN- ASRock Auto Driver Installer |
| CPU Support | - 14th, 13th & 12th Gen Intel® Core™ (LGA1700)- Turbo Boost Max 3.0- Hybrid Architecture |
| Chipset | Intel® H610 |
| Memory Support | - 2× DDR5 DIMMs- 13th Gen: Up to 5600MHz- 12th Gen: Up to 4800MHz- Max Capacity: 96GB- XMP 3.0 Support |
| Graphics Outputs | - 1× HDMI 2.1 (4K @ 60Hz)- 1× D-Sub (1920×1080 @ 60Hz)Works only with processors that have integrated graphics |
| Audio | 7.1 CH HD Audio (Realtek ALC897) |
| LAN | 2.5G LAN (Dragon RTL8125BG)- Gaming & Streaming Modes- Bandwidth Control, UI & Usage Stats |
| Expansion Slots | - 1× PCIe 4.0 x16 (CPU)- 1× PCIe 3.0 x1 (Chipset) |
| Storage Options | - 1× M.2 Gen3 x4 (2242/2260/2280)- 4× SATA3 (6.0 Gb/s)NVMe Boot Support |
| USB Ports | - Rear: 2× USB 3.2 Gen1, 4× USB 2.0- Front: 2× USB 3.2 Gen1, 2× USB 2.0 |
| Fan Support | - 1× CPU Fan (12W)- 1× Chassis/Water Pump (24W, auto 3-pin/4-pin detection) |

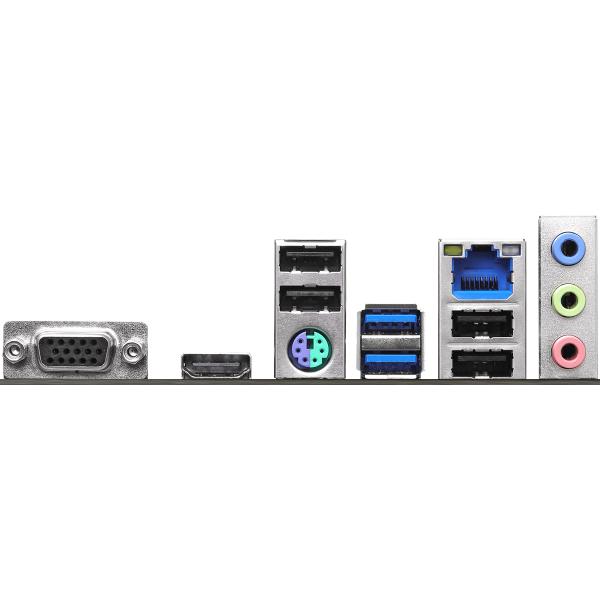

| Rear I/O | - 1× PS/2- 1× HDMI- 1× D-Sub- 2× USB 3.2 Gen1- 4× USB 2.0- 1× 2.5G LAN- 3× Audio Jacks |
| Internal Headers | - USB 2.0 Header (2 ports)- USB 3.2 Gen1 Header (2 ports)- TPM, Audio, Fan, Power Connectors |
| Software & BIOS | - ASRock A-Tuning, Dragon LAN Software, Auto Driver Installer, Instant Flash- ASRock UEFI EZ Mode, Full HD GUI |
| Accessories | - 1× I/O Shield- 2× SATA Cables- 1× M.2 Screw |
| Form Factor | Micro ATX (8.66" x 7.6" / 22.0 cm x 19.3 cm) |
| OS Support | Windows® 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
