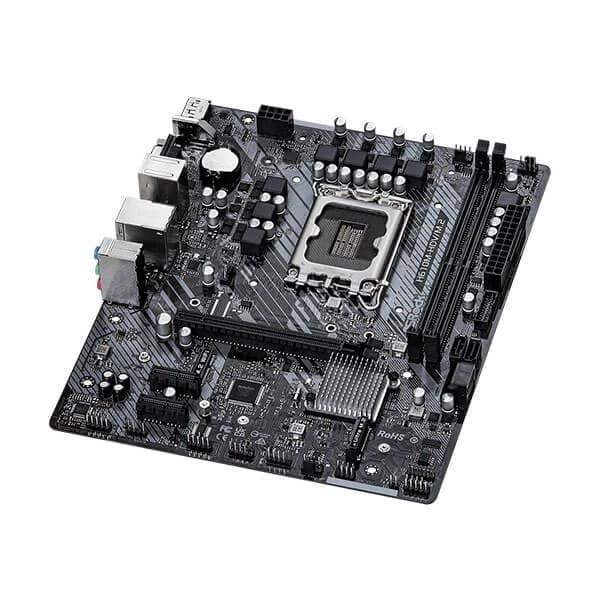

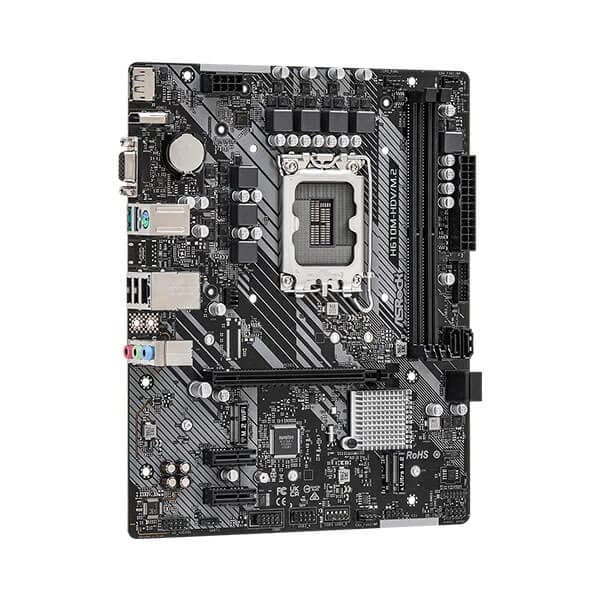

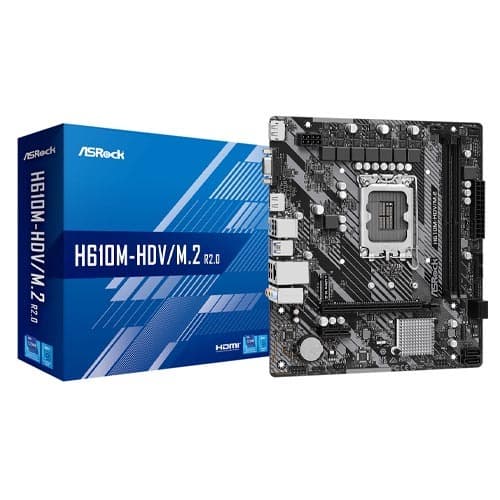

Asrock H610M-HDV/M.2 R2.0 Intel H610 Micro ATX Motherboard
1 sold in last 7 hours
Hurry! Over 5 people have this in their carts
Brand: Asrock
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Estimated Delivery: Thu, Jan 01 – Mon, Jan 05
... people are viewing this right now
Original price was: ₹9,551.00.₹6,349.00Current price is: ₹6,349.00.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

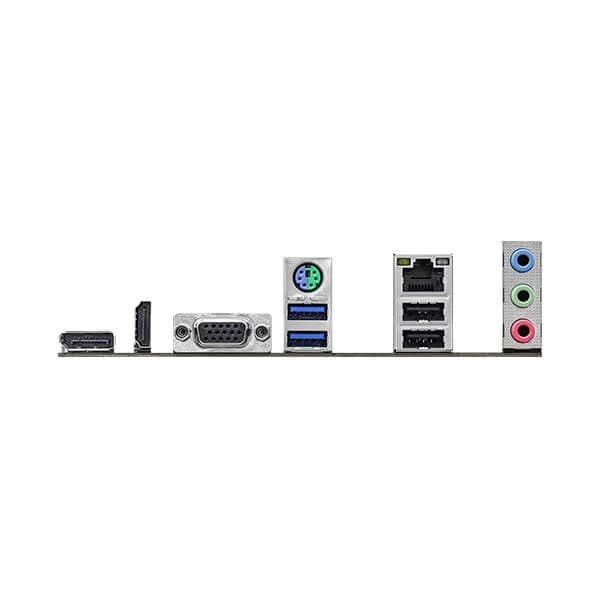

- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN

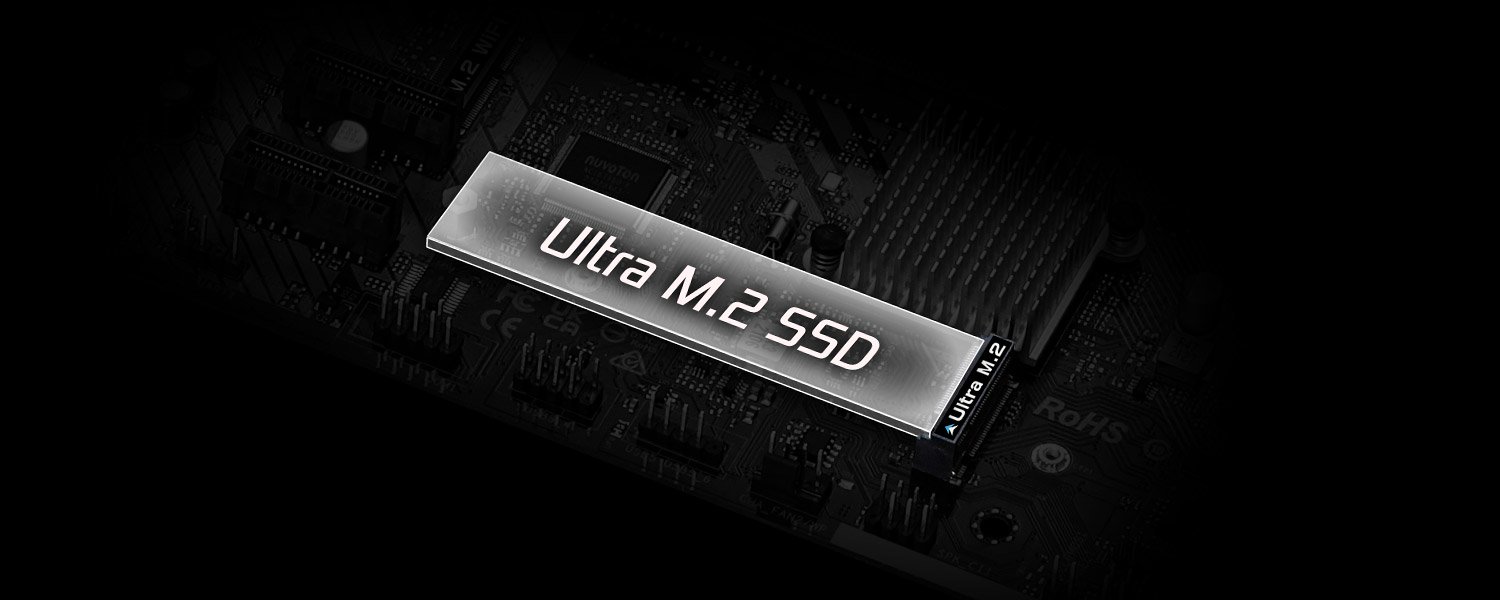

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
| CPU Support : | Supports 12th Gen Intel Core Processors |
| Socket : | LGA1700 |
| Chipset : | Intel H610 |
| Ram Type : | Supports DDR4 non-ECC, un-buffered memory up to 3200 |
| Memory Channel : | Dual Channel DDR4 Memory Technology |
| DIMM Slots : | 2 |
| Max Memory : | 64GB |
| PCI-EX16 : | 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode |
| SATA III : | 4 x SATA3 6.0 Gb/s Connectors |
| M.2/NVME : | Yes |
| LAN : | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| WIFI 4 Bluetooth : | NA |
| USB 3.2 Ports(Front) : | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| USB 3.2 Ports(Rear) : | 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| USB 2.0 Ports(Front) : | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| USB 2.0 Ports(Rear) : | 4 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports(Rear) : | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Display Port : | 1 x DisplayPort 1.4 |
| HDMI : | 1 x HDMI Port |
| Form Factor : | Micro-ATX |
| Warranty : | 3 Years |
