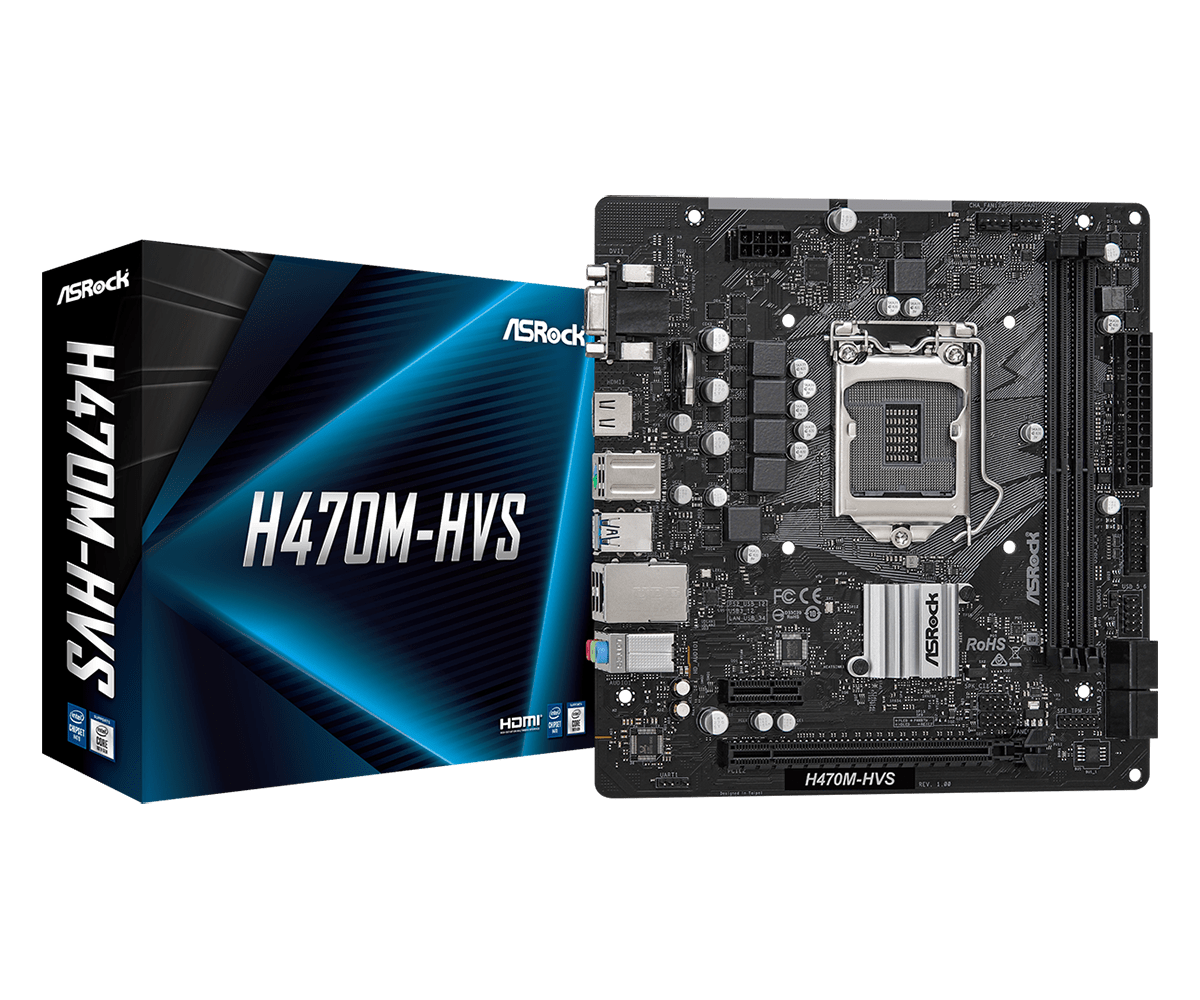

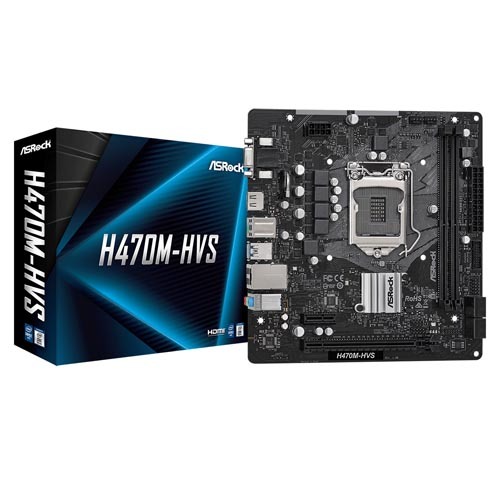

Asrock H470M-HVS Intel H470 Micro ATX Motherboard
6 sold in last 8 hours
Hurry! Over 10 people have this in their carts
- 5 Power Phase Design
- Premium 50A Power Choke
- Clever Access Memory
- HEVC 10-bit Decoding/Encoding
- Dual Graphics Outputs
Estimated Delivery: Dec 17 – Dec 21
... people are viewing this right now
Original price was: ₹7,999.00.₹5,199.00Current price is: ₹5,199.00.
ASRock H470M-HVS LGA 1200 Intel H470 SATA 6Gb/s Micro ATX Intel Motherboard
Feature
.png)
- ASRock Supports 10th Gen Intel Core Processors (Socket 1200)
- Supports DDR4 2933MHz
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- Chipset Intel H470
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory (more details in specification)
- Max. capacity of system memory: 64GB (based on system)
5 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + D-SUB combo, you have more graphics output options now.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| Unique Feature | ASRock Super Alloy |
| Sapphire Black PCB | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| CPU | Supports 10th Gen Intel Core Processors (Socket 1200) |
| 5 Power Phase design | |
| Chipset | Intel H470 |
| 2 x DDR4 DIMM Slots | |
| Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| Supports Intel Extreme Memory Profile (XMP) 2.0 | |
| *Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| SMBIOS 2.7 Support | |
| Graphics | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** |
| Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc | |
| Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) | |
| Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port | |
| **VP9 10bit and VC-1 are for decode only. | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| Supports Wake-On-LAN | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | 1 x PCI Express 3.0 x16 Slot* |
| 1 x PCI Express 3.0 x1 Slot | |
| *Supports NVMe SSD as boot disks | |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug |
| Connector | 1 x SPI TPM Header |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4-pin)* | |
| 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port |
| 1 x D-Sub Port | |
| 1 x HDMI Port | |
| 4 x USB 2.0 Ports (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | |
| Software | ASRock Motherboard Utility (A-Tuning) |
| ASRock XFast LAN | |
| UEFI | ASRock EZ Mode |
| ASRock Full HD UEFI | |
| ASRock My Favorites in UEFI | |
| ASRock Instant Flash | |
| ASRock Internet Flash | |
| ASRock Easy RAID Installer | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield |
| 2 x SATA Data Cables | |
| Hardware Monitor | Temperature Sensing: CPU, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans | |
| CASE OPEN detection | |
| CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment | |
| Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm |
| Solid Capacitor design | |
| OS | Microsoft Windows 10 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) |
| **Features, Price and Specifications are subject to change without notice to customer. |
