ASRock B760M Pro-A WiFi LGA 1700 DDR5 mATX Motherboard 1

ASRock B760M Pro-A WiFi LGA 1700 DDR5 mATX Motherboard

Name: Buy ASRock B760M Pro-A WiFi LGA 1700 DDR5 mATX Motherboard - Computech Store
Brand: Asrock
SKU: B760M-Pro-A-WiFi
Price: 11099.00 INR
Availability: InStock

Brands

2 sold in last 6 hours

Hurry! Over 8 people have this in their carts

Brand:

Asrock

Estimated Delivery: Mon, Jan 26 – Fri, Jan 30

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹24,999.00.Current price is: ₹11,099.00.

Description Specifications Additional information Reviews (0) Q & A

ASRock B760M Pro-A WiFi LGA 1700 DDR5 mATX Motherboard

Feature

Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
7+1+1 Power Phase, Dr.MOS for VCore+GT
4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 5.0 x16, 1 PCIe 3.0 x16
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN
Killer 802.11axe WiFi 6E + Bluetooth
Supports ASRock Auto Driver Installer

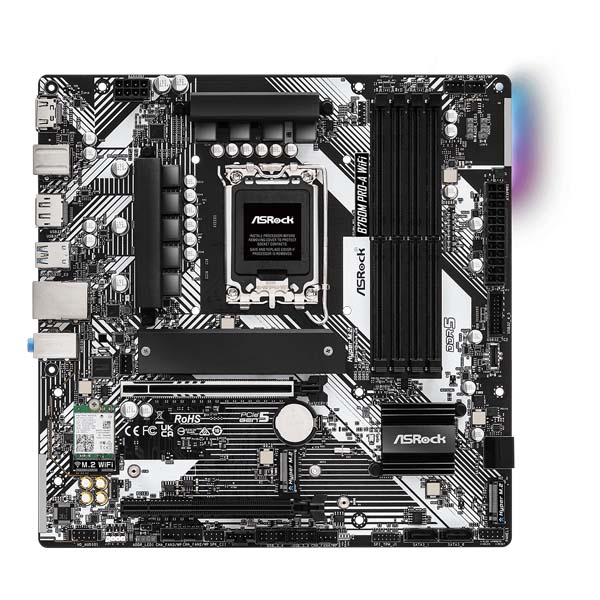

layout picture 1

layout picture 2

Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

7+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Reinforced Steel Slot
[PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Intel^® Killer™ Wi-Fi 6E

Intel^®Killer™ Wi-Fi 6E 802.11ax

The Intel^® Killer™ Wi-Fi 6E delivers supercharged wireless performance and enables seamless, immersive online gameplay. These solutions deliver increased levels of control alongside the power required to get the most from today’s demanding online applications.

Killer™ Wi-Fi 6E 802.11ax

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

*The availability of Wi-Fi 6E (6GHz) may vary between different countries.

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

Brand	ASRock
Color	Black
Model	B760M Pro-A Wi-Fi
Unique Feature
Superb Productivity	– PCIe Gen5 (Graphic)
	– Dual Channel DDR5
Rock-Solid Durability	– Server-Grade Low-Loss PCB
	– 7+1+1 Power Phase, Dr. MOS for V Core +GT
Ultrafast Connectivity	– 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update	ASRock Auto Driver Installer
CPU	– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
	– Supports Intel® Hybrid Technology
	– Supports Intel® Turbo Boost Max 3.0 Technology
	– Supports Intel® Thermal Velocity Boost (TVB)
	– Supports Intel® Adaptive Boost Technology (ABT)
Chipset	Intel® B760
Memory	– Dual Channel DDR5 Memory Technology
	– 4 x DDR5 DIMM Slots
	– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
	– Max. capacity of system memory: 256GB
	– Supports Intel® Extreme Memory Profile (XMP) 3.0

	*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Graphics	– Intel® Xe Graphics Architecture (Gen 12)
	– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
	– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	– Dragon RTL8125BG
	– Supports Dragon 2.5G LAN Software
	– Smart Auto Adjust Bandwidth Control
	– Visual User Friendly UI
	– Visual Network Usage Statistics
	– Optimized Default Setting for Game, Browser, and Streaming Modes
	– User Customized Priority Control
Wireless LAN	– 802.11axe Wi-Fi 6E Module
	– Supports IEEE 802.11a/b/g/n/ac/ax/axe
	– Supports Dual-Band 2×2 160MHz with extended 6GHz band* support
	– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
	– Supports Bluetooth 5.3 + High speed class II
	– Supports MU-MIMO
	– Supports Killer LAN Software

	* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
	A 6GHz compatible router is required for 6E functionality.
Slots	CPU:
	– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
	Chipset:
	– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
	– 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 (Integrated Wi-Fi/BT)
	– Supports AMD CrossFire™
	* Supports NVMe SSD as boot disks
Storage	CPU:
	– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
	Chipset:
	– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	– 4 x SATA3 6.0 Gb/s Connectors

	*Supports Intel® Volume Management Device (VMD)
	Supports NVMe SSD as boot disks
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB	Chipset:
	– 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
	– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
	– 6 x USB 2.0 (2 Rear, 4 Front)

	* All USB ports support ESD Protection
Connector	– 1 x SPI TPM Header
	– 1 x Chassis Intrusion and Speaker Header
	– 1 x RGB LED Header*
	– 3 x Addressable LED Headers**
	– 1 x CPU Fan Connector (4-pin)***
	– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
	– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
	– 1 x 24 pin ATX Power Connector
	– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	– 1 x Front Panel Audio Connector
	– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
	– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
	– 1 x Front Panel Type C USB 3.2 Gen1 Header

	* Supports in total up to 12V/3A, 36W LED Strip
	** Support in total up to 5V/3A, 15W LED Strip
	*** CPU_FAN1 supports the fan power up to 1A (12W).
	**** CPU_FAN2/WP supports the fan power up to 2A (24W).
	***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
	***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

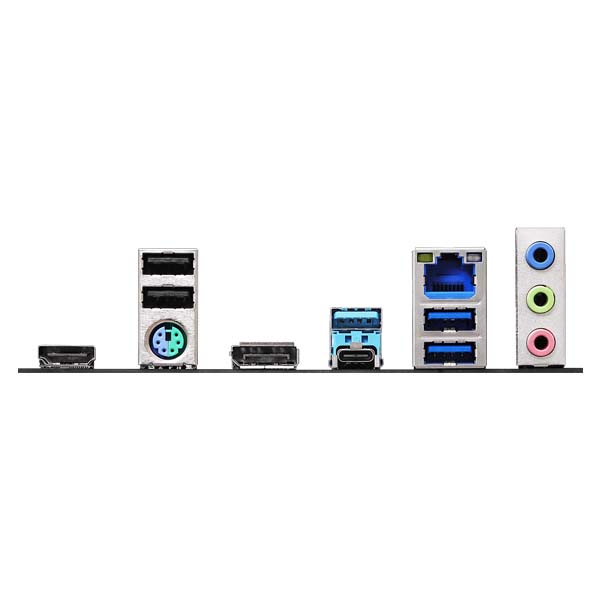

Rear Panel I/O	– 2 x Antenna Ports
	– 1 x PS/2 Mouse/Keyboard Port
	– 1 x HDMI Port
	– 1 x DisplayPort 1.4
	– 1 x USB 3.2 Gen1 Type-C Port
	– 3 x USB 3.2 Gen1 Type-A Ports
	– 2 x USB 2.0 Ports
	– 1 x RJ-45 LAN Port
	– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software
	– ASRock Motherboard Utility (A-Tuning)
	– ASRock Dragon 2.5G LAN Software
	– Killer Control Center
	– ASRock Polychrome SYNC*
	UEFI
	– ASRock EZ Mode
	– ASRock Full HD UEFI
	– ASRock My Favorites in UEFI
	– ASRock Auto Driver Installer
	– ASRock Instant Flash
	– ASRock Easy RAID Installer
	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	– 1 x User Manual
	– 1 x I/O Shield
	– 2 x SATA Data Cables
	– 2 x SMA Wi-Fi Antenna Cables
	– 2 x ASRock Wi-Fi 2.4/5/6 GHz Antennas
	– 1 x Plastic Cover for Wi-Fi Module
	– 3 x Screws for M.2 Sockets
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Operating System	– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications	– FCC, CE
	– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*Features, Price, and Specifications are subject to change without notice.

Weight	1 kg
Product Type	Normal
color	Black
Brands	AsRock
Motherboard Size	mATX
Socket	LGA 1700
Platform	Intel
RAM Type	DDR5
Warranty	3 Years
EAN / UPC Code	4710483944796
