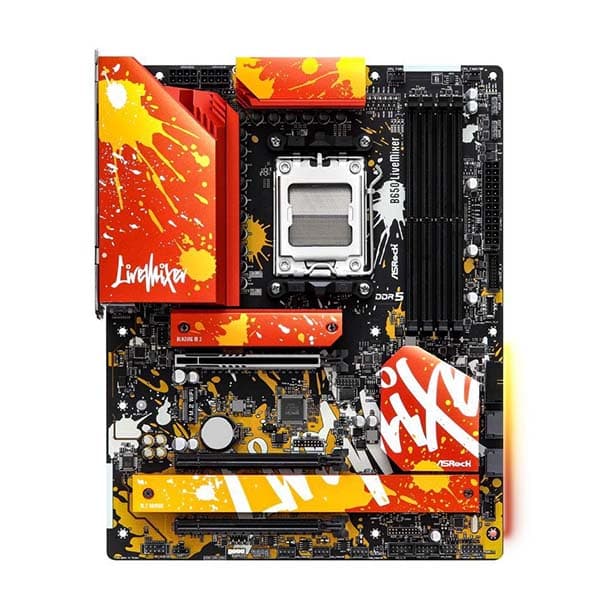

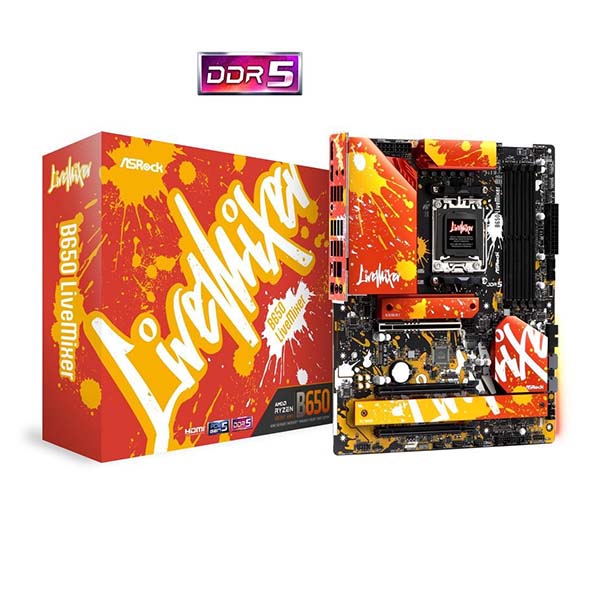

ASRock B650 LiveMixer AM5 ATX Motherboard
13 sold in last 10 hours
Hurry! Over 7 people have this in their carts
- Supports Ryzen 7000 Series Processors.
- 14+2+1 Power Phase, Enlarged Heatsink Armor.
- 8 Layer PCB, optimized thermal performance.
- Supports DDR5 6400MHz.
- 3 PCIe 4.0 x16, 1 M.2 Key E.
Estimated Delivery: Nov 07 – Nov 11
... people are viewing this right now
Original price was: ₹54,999.00.₹22,039.00Current price is: ₹22,039.00.
ASRock B650 LiveMixer AM5 ATX Motherboard, DDR5, PCIE 4.0 x16, M.2 slots, Lan, Nahimic Audio, USB3.2 Gen2X2 Type_C, Power Phase, bios flash back, Amd Crossfire
Feature
- Supports Ryzen 7000 Series Processors.
- 14+2+1 Power Phase, Enlarged Heatsink Armor.
- 8 Layer PCB, optimized thermal performance.
- Supports DDR5 6400MHz.
- 3 PCIe 4.0 x16, 1 M.2 Key E.
- Graphics Outputs: HDMI, DisplayPort.
- Realtek ALC897 7.1 CH HD Audio.
- 2 SATA3, 1 Blazing M.2.
- 2 Hyper M.2.
- 1 Front USB 3.2 Type-C.
- 2 Rear USB 3.2.
- 8 USB 3.2 Gen1.
- 12 USB 2.0.
- Dragon 2.5G LAN.
- Supports BIOS Flashback, Auto Driver Installer.
ASROCK LIVE MIX LIFE MAX
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.
Broadcasting
Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.
Content Creation
Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.
– Content Creator
– Video Editing
– Photo Editor
– Game Development
Effectiveness and Uniqueness
Provides stability and unique features enhancing effectiveness.
14 + 2 + 1 power phase with Smart Power Stage(SPS) and Nichicon 12K capacity.
Optimized VRM design for solid performance
![Blazing M.2[PCIe Gen5 x4]](https://www.asrock.com/mb/AMD/B650%20LiveMixer/img/svg/02.png)
Blazing M.2[PCIe Gen5 x4]
Blazing Fast Data Transfer and Great Heat Dissipation
DDR5 EXPO & XMP Support
Extreme Memory Overclocking
Blazing OC Tuner
Extreme CPU Overclocking
Lightning Gaming Ports
Mice/Keyboard control with lower jitter and latency
Ultra USB Power
Stable power and better sound experience!
Dual PCIe x4 Slots & Thunderbolt Header
Provides great connectivity for the use of capture card and Thunderbolt AIC at the same time.
8 Layers PCB
Thermal and Performance Optimized
Optimizes your user experience.
- DDR5 Memory
Supports DDR5 memory with max. 128GB capacity.
- 23 USB Ports
Provides great connectivity to multiple USB devices.
- Dragon 2.5G LAN
Fulfills requirement of content creators and high-quality streaming media.
- Polychrome Sync
Allows users to synchronize RGB LED devices and create their own unique lighting effects.
- Nahimic Audio
Offers you the most engaging listening experience, vibrant and rich with details.
- Auto Driver Installer
Allow users to download and install all necessary drivers automatically.
| Brand | ASRock |
|---|---|
| Model | B650 LiveMixer |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| PCI Express 4.0 x16 | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode** If M2_3 is occupied, PCIE3 will be disabled. * Supports NVMe SSD as boot disks - Supports AMD CrossFire - 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
|---|
| SATA 6Gb/s | 2 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode** Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit * If M2_3 is occupied, PCIE3 will be disabled |
| SATA RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |

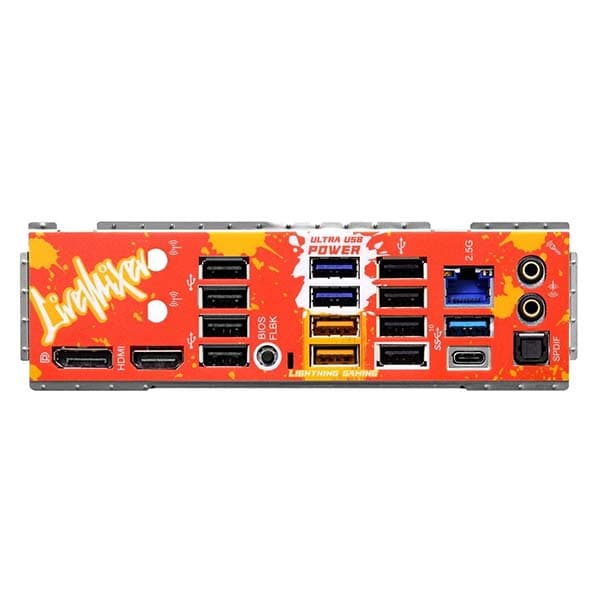

| Back I/O Ports | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) 4 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.) 8 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Windows 11 | Supported |
|---|
| Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore Ultrafast Connectivity - 2.5G LAN - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|---|
| Package Contents | 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
|---|
