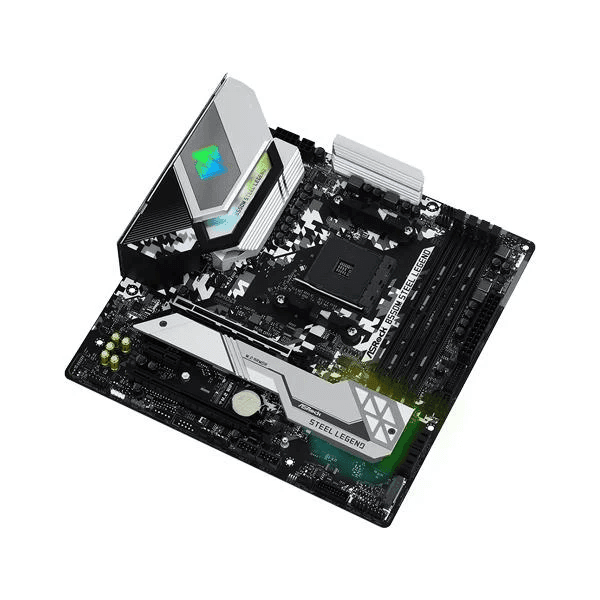

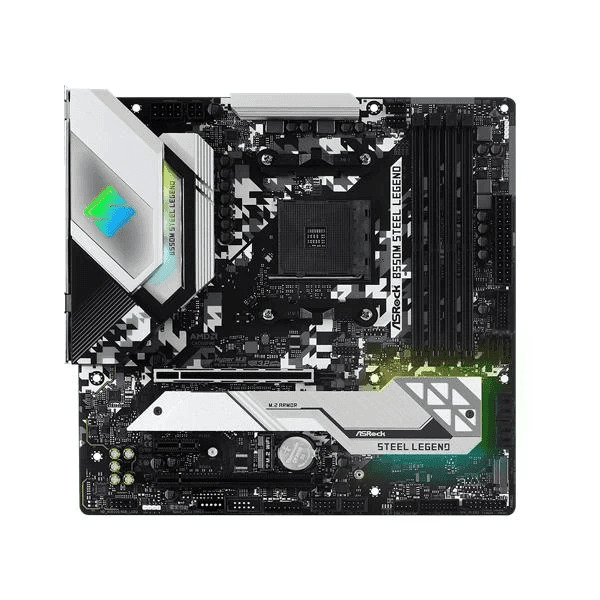

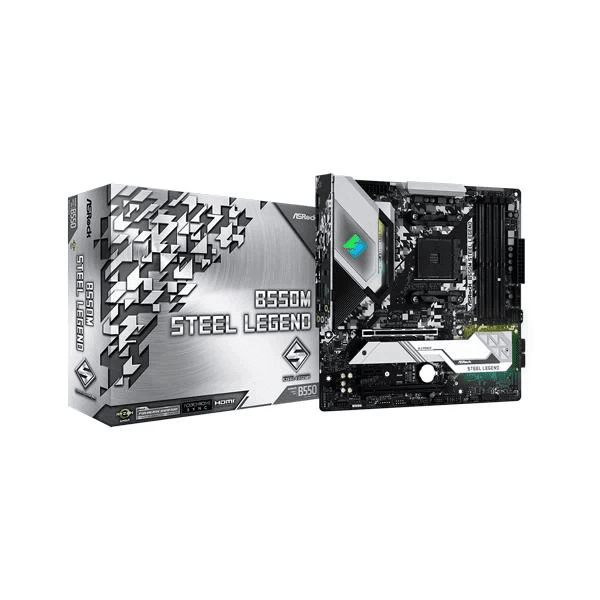

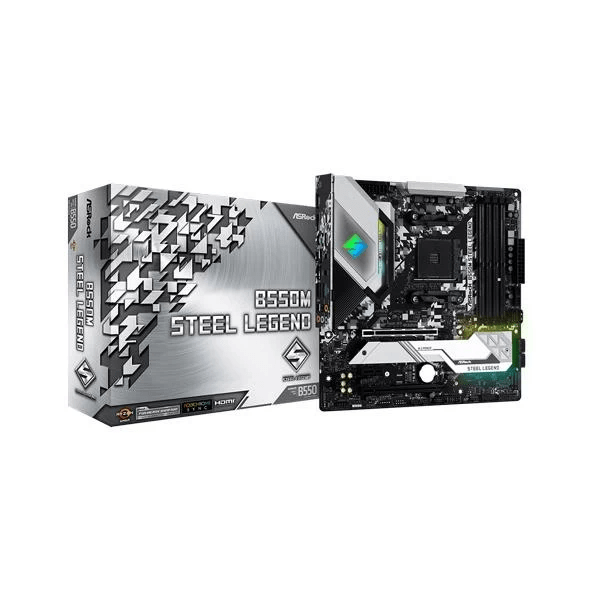

Asrock B550M Steel Legend Motherboard
- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
- 10 Power Phase Design, Dr. MOS
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Dragon 2.5G LAN
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹18,990.00 Original price was: ₹18,990.00.₹11,399.00Current price is: ₹11,399.00.
Asrock B550M Steel Legend Motherboard
Important Notice :
- BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
- The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
- For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website
FEATURES
B550M Steel Legend
- Asrock Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
- 10 Power Phase Design, Dr. MOS
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Dragon 2.5G LAN
Unique Feature |
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
2.5G LAN
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop |
CPU | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
- Digi Power design
- 10 Power Phase design
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. |
Chipset | - AMD B550 |
Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
BIOS | 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft® PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
|
Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - Nahimic Audio |
LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
Slots | AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
*Supports NVMe SSD as boot disks |
Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**
- 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
*M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.
**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
|
Connector | - 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
|

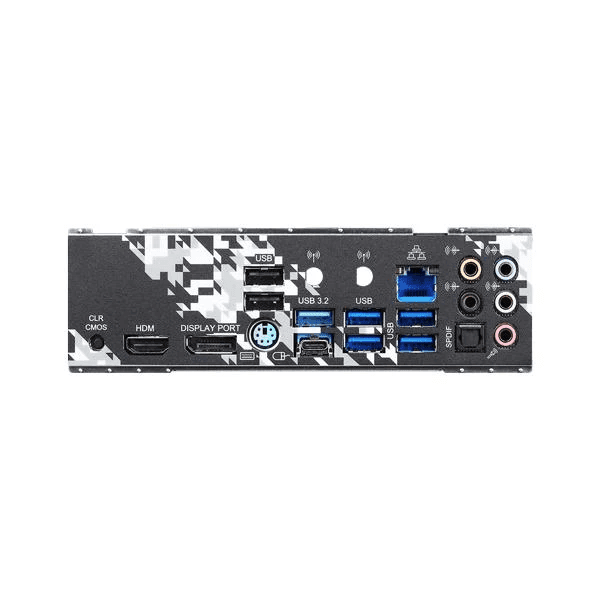

Rear Panel I/O | -2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
Software and UEFI |
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories | - Quick Installation Guide, Support CD - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
Hardware Monitor | - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP |
Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
OS | - Microsoft® Windows® 10 64-bit |
Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
Weight | 1 kg |
---|---|
Dimensions | 31 × 6 × 24 cm |
