ASRock B550M-ITX/AC (WI-FI) Motherboard

Brand:

Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
Supports DDR4 4733+ (OC)
Graphics Output: DisplayPort, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹25,000.00.Current price is: ₹12,585.00.

Out of stock

Description Specifications Additional information Reviews (0) Q & A

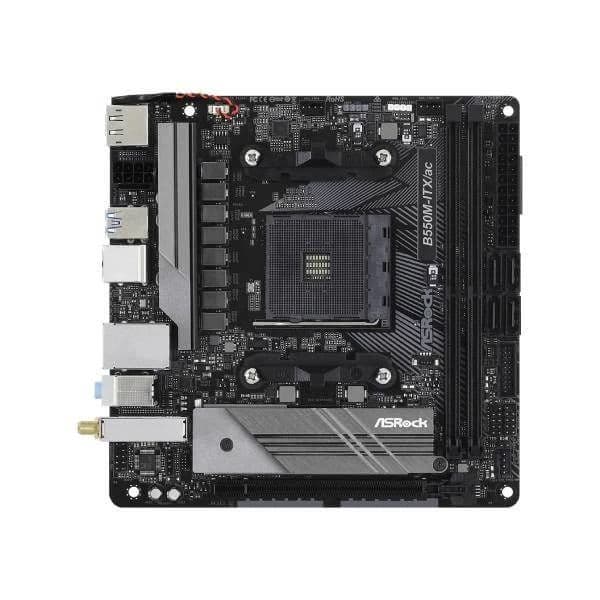

ASRock B550M-ITX/AC (WI-FI) Motherboard

Features

B550M-ITX/ac

Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16
Graphics Output: DisplayPort, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
6 USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C)
Realtek Gigabit LAN
Intel^® 802.11ac WiFi + BT 4.2
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

The ASRock B550M-ITX/AC pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.

Storage and Memory

One M.2 slot is available, supporting up to type 2280 NVMe PCIe and SATA SSDs.
Four SATA III ports are available for hard drives and 2.5″ SSDs.
Supports RAID 0, 1, and 10.
Up to 64GB of dual-channel ECC DDR4-4733 (OC) memory can be installed across two slots.

Electrical Performance

The ASRock B550M-ITX/AC motherboard has a digital 8 power phase design with Dr. MOS is optimized to deliver up to 50A of continuous current through each phase. High-quality 60A alloy chokes alongside durable capacitors deliver power to critical components such as the CPU.

Durable Design

M.2 SSD slot armor helps to maintain optimal temperatures for high performance.
The PCB has a high-density glass fabric design that reduces gaps between layers to protect against electrostatic discharge and humidity.
Comprised of various technologies, ASRock Full Spike Protection helps to prevent damage to your motherboard’s components from unexpected voltage spikes.

Fully Connected

In addition to ASRock B550M-ITX/AC USB 2.0 ports, this motherboard includes USB 3.2 Gen 1 ports that can transfer data at up to 5 Gb/s with compatible devices. The USB 3.2 Gen 2 Type-C port has a maximum throughput of 10 Gb/s.

Integrated Graphics

The DisplayPort 1.4 HDMI 1.2 ports support 4K monitors, which allow you to take advantage of AMD Ryzen CPUs that have integrated graphics.

Fast Network Connectivity

A Gigabit Ethernet port with enhanced lightning and electrostatic discharge protection high-speed network wired connections with compatible devices.
Built-in 802.11ac Wi-Fi that delivers up to 433 Mb/s.
Bluetooth 4.2 technology allows you to pair wireless devices such as headphones, keyboards, mice, and more.

Immersive Audio

The ASRock B550M-ITX/AC integrated Realtek ALC887 audio technology is designed to deliver detailed sound with 7.1-channel playback.

Polychrome RGB Lighting

ASRock Polychrome technology allows you to connect, customize, and control lighting equipment such as RGB LEDs and light strips on the onboard RGB headers. You can choose from a variety of lighting presets, which can be synchronized with capable peripherals such as keyboards, mice, CPU coolers, and more. The addressable RGB headers can detect the number of LEDs on a compatible device to further tailor the lighting effects.

Unique Feature	ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB Intel^® 802.11ac WiFi ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* - Digi Power design - 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset	- AMD B550
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM SlotsSR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module labelDue to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft^® PlayReady Actual support may vary by CPU *The Max shared memory 16GB requires 32GB system memory installed.
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- Intel^® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 + High speed class II
Slots	AMD Ryzen series CPUs (Matisse) - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)* AMD Ryzen series APUs (Renoir) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O) Supports PCIe riser cards to extend x8/x8 slots Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)** *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Connector	- 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Supports in total up to 12V/3A, 36W LED Strip Supports in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

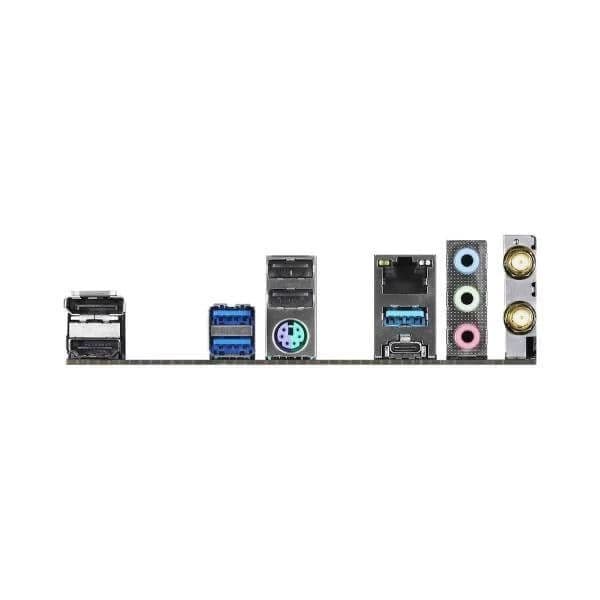

Rear Panel I/O	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Hardware Monitor	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas
Accessories	- Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design
OS	- Microsoft^® Windows^® 10 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	1 kg
Product Type	Gaming
Chipset	B550
Motherboard Size	Mini ITX
Memory Series	DDR4
Socket	AM4
Platform	AMD
EAN / UPC Code	4710483931727
