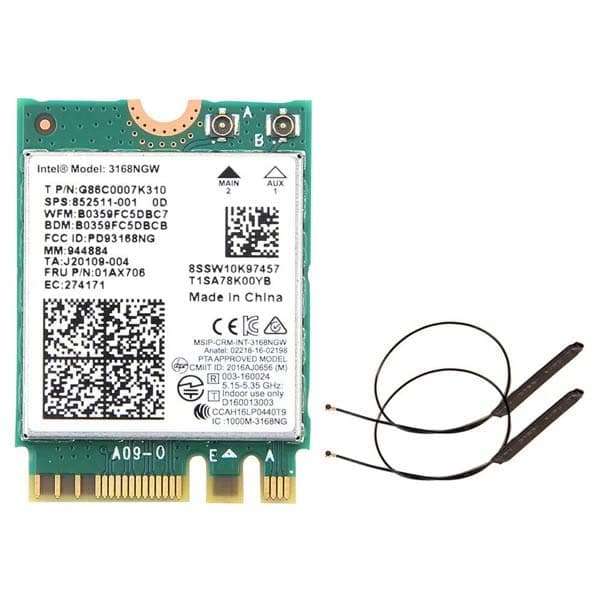

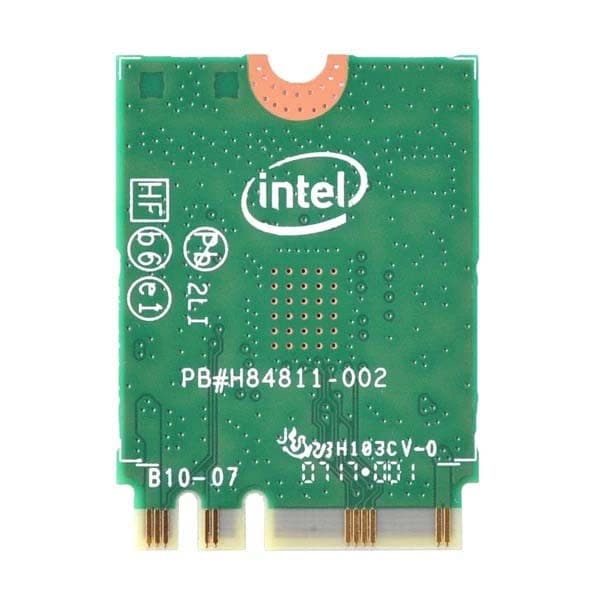

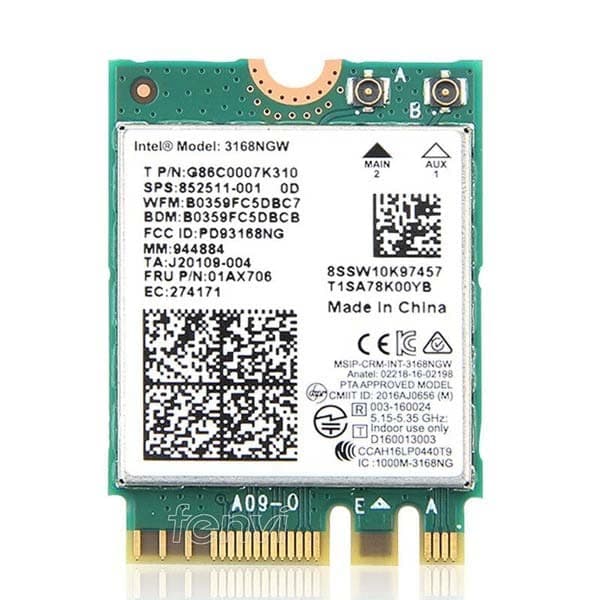

Asrock 3168NGW Wireless PCI-E Adapter
- High-speed WiFi Dual-Band (2.4/5 GHz)
- Internet Connectivity
- Bluetooth v4.2 Technology
- IEEE 802.11a/b/g/n/ac Standard
Original price was: ₹2,000.00.₹1,209.00Current price is: ₹1,209.00.
Asrock 3168NGW Wireless PCI-E Adapter
Feature
- Asrock High-speed WiFi Dual-Band (2.4/5 GHz)
- Internet Connectivity
- Bluetooth v4.2 Technology
- IEEE 802.11a/b/g/n/ac Standard
- Type 2230 M.2 Socket (Key E)
The Intel® Dual Band Wireless-AC 3168 is Intel’s 3rd generation 802.11ac, dual band, 1×1 Wi-Fi + Bluetooth® adapter. It’s engineered to be faster1, stronger1, greener1 than previous gen Intel 802.11ac 1×1 products with lower power in idle modes, Intel® Dynamic Regulatory Solution and complete Microsoft Windows 10* support. Combined with Intel ® CoreTM processors and exceptional Intel wireless innovations, the Intel® Dual Band Wireless-AC 3168 dramatically reshapes your connected experience at home, work or on the go.
- BT 4.2: The WIFI module is equipped with BT4.2, which is convenient to use with mobile phones, tablets, headphones, smart watches, printers, etc
- Wide Compatible: The NGFF network card is compatible with laptops with NGFF slots
- 600Mbps Transmission: The transmission rate of the 3168NGW wireless module is up to 600Mbps, which ensures stable transmission and Internet experience
- Dual Frequency: The wireless module supports 2.4Ghz and 5Ghz dual frequency, supports 802.11a/g/n/ac wireless protocol
- Support System: The dual frequency network card supports for Win7, for Win8, for Win10 system to meet your daily office needs
| Dimensions | 2.6-in x 2.7-in, 6.6 cm x 6.9 cm |
| Discrete module | Intel® Dual Band Wireless-AC 3168 |
| For Factor | M.2 2230 |
| Connector | - 1 x Type 2230 M.2 Socket (Key E) |
| Wireless LAN | - Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II |
| OS | - Microsoft® Windows® 10 64-bit / 7 32-bit / 7 64-bit |
| Accessory | - 1 x WiFi 2.4/5 GHz Antena |
| Warranty | 1 Year |
| Note | Support Only Selected Asrock Motherboard *** Features, Price, Specifications are subject to change without notice. |
